Machine model: Xiaomi 8

Malfunction: mobile phone WiFi cannot be turned on.

Maintenance process:

I received a Xiaomi 8. After the fault description fell heavily, the mobile phone WiFi couldn’t be turned on.

Heavy-fallen machines are usually caused by virtual welding of chips, dropping of points, or disconnection of boards.

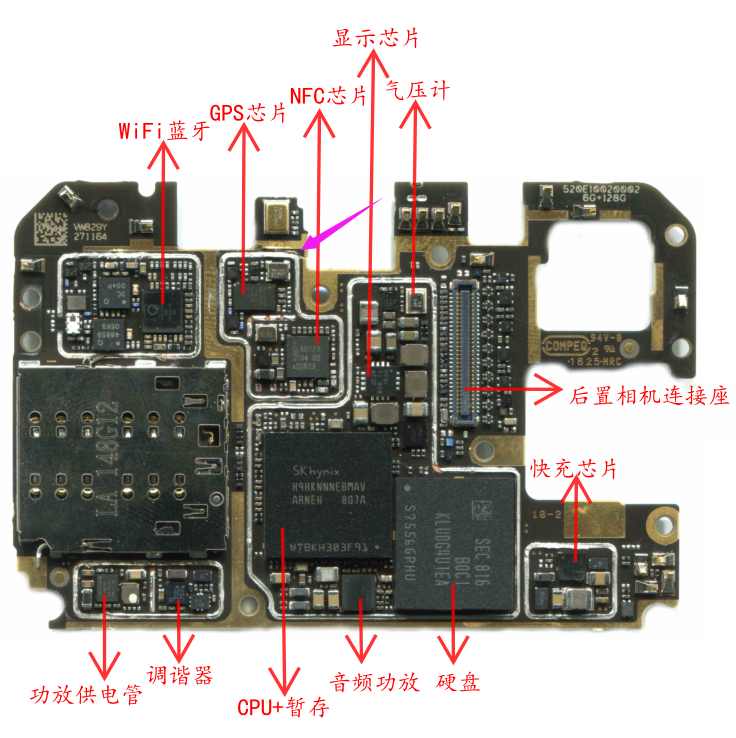

Dismantle the machine, remove the motherboard and observe carefully, and find that the motherboard is broken.

IMG_256

Xiaomi’s 8-fold mobile phone WiFi can’t be opened for maintenance Figure 1

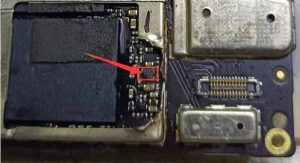

IMG_257

Xiaomi’s 8-fold mobile phone WiFi can’t be opened for maintenance Figure 2

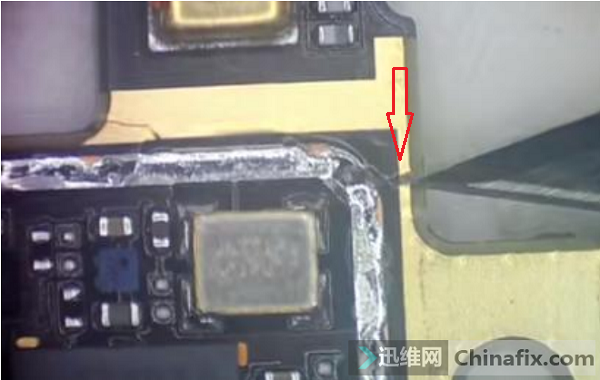

Flying line, green oil solidified.

IMG_258

Xiaomi’s 8-fold mobile phone WiFi can’t be opened for maintenance Figure 3

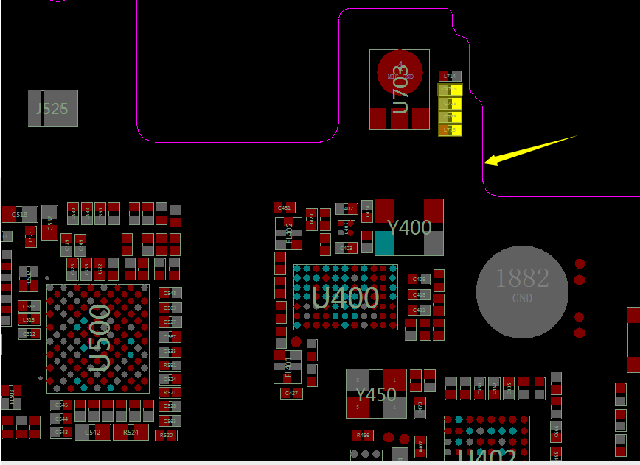

IMG_259

Xiaomi 8 heavy falls, mobile phone WiFi can’t be opened for maintenance Figure 4

After the flight, the power-on test shows that the WiFi signal is full instantly.
