Xiaomi 11 mobile phone photo flash back repair

Xiaomi mobile phone shoot 22501, redo the CPU fault repair.

Xiaomi 11 mobile phone photo flash back repair

Machine model: Xiaomi 11
Malfunction: mobile phone shoot flicker exit

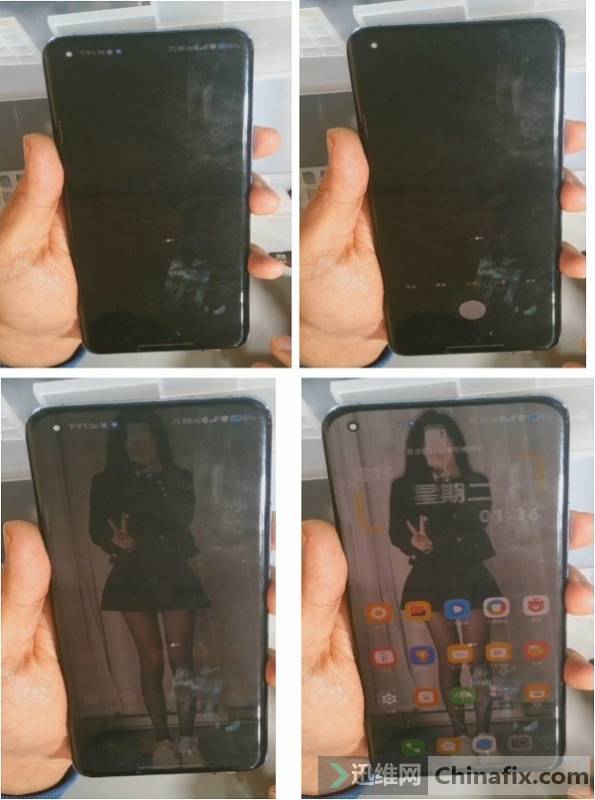

Maintenance process: the customer describes the normal use of the mobile phone, turns on the mobile phone Camera flicker exit, and turns on Camera directly to screen is black or frozen for one or two seconds. Then the flicker exit button just appears.

Xiaomi 11 mobile phone photo flash back repair

Xiaomi 11 mobile phone photo flash back repair figure 1.

Fault analysis: the mobile phone Camera flicker exit is either VCC or i2c bus has a problem.
Maintenance process:

Xiaomi 11 mobile phone photo flash back repair

Xiaomi 11 mobile phone photo flash back repair figure 2.

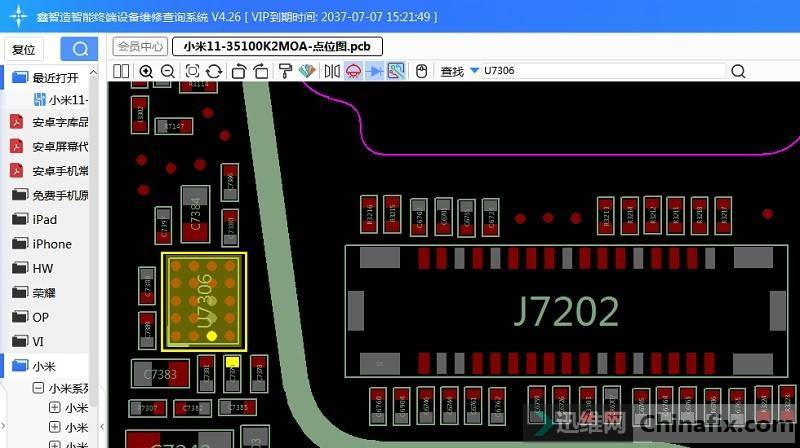

The front Rear Camera of this model has a camera power supply U7306 in addition to the pentagonal MOSFET VCC.

Xiaomi 11 mobile phone photo flash back repair

Xiaomi 11 mobile phone photo flash back repair figure 3.

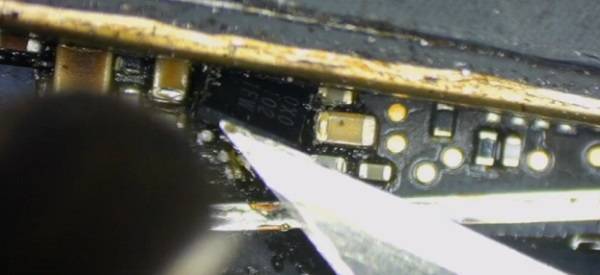

Redo this chip directly.

244;IMG_259

Xiaomi 11 mobile phone photo flash back repair figure 4.

The boot failure is still the same, and the image head BTB connector diode value is normal before and after playing. When testing i2c VCC, it is found that there is no VCC.

300;IMG_260

Xiaomi 11 mobile phone photo flash back repair figure 5.

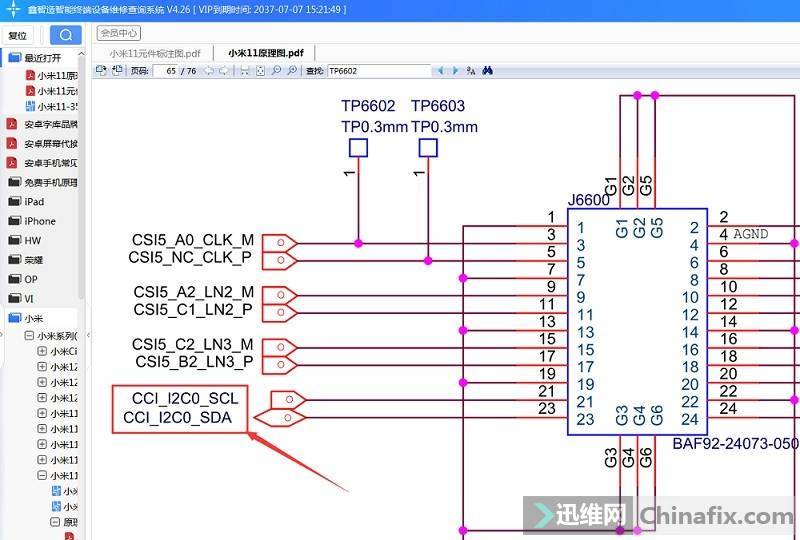

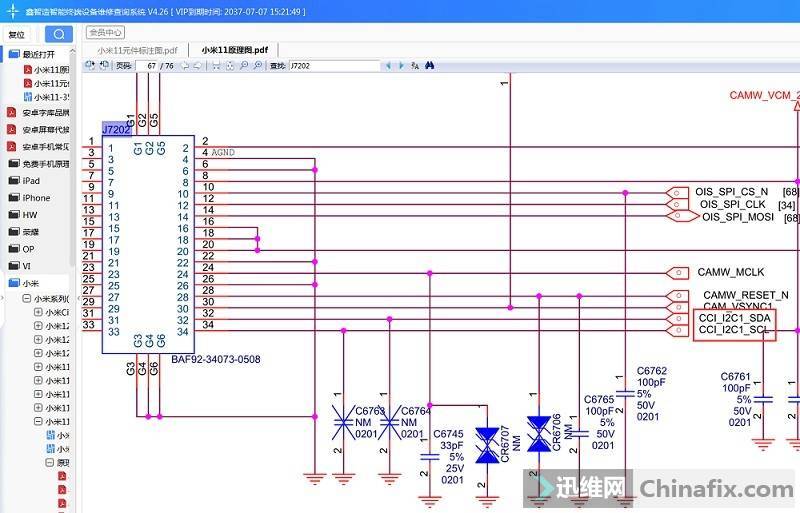

There is no VCC in the CCI_I2C1_SDA and CCI_I2C1_SCL of the rear-camera main camera when they are turned on, and there is no VCC in the front-camera CCI_I2C0_SDA and CCI_I2C0_SCL when they are turned on.

395;IMG_261

Xiaomi 11 mobile phone photo flash back repair Figure 6.

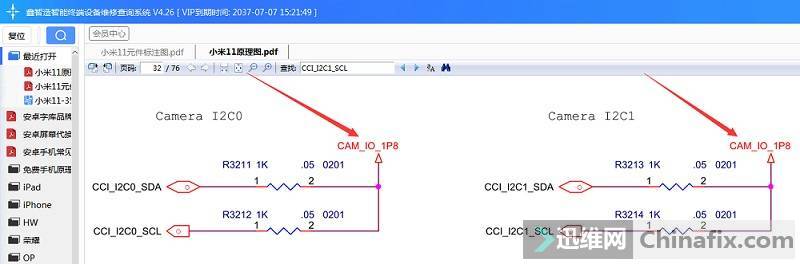

It is found that the transmitters of these two i2c are both CAM_IO_1P8.

439;IMG_262

Xiaomi 11 mobile phone photo flash back repair Figure 7.

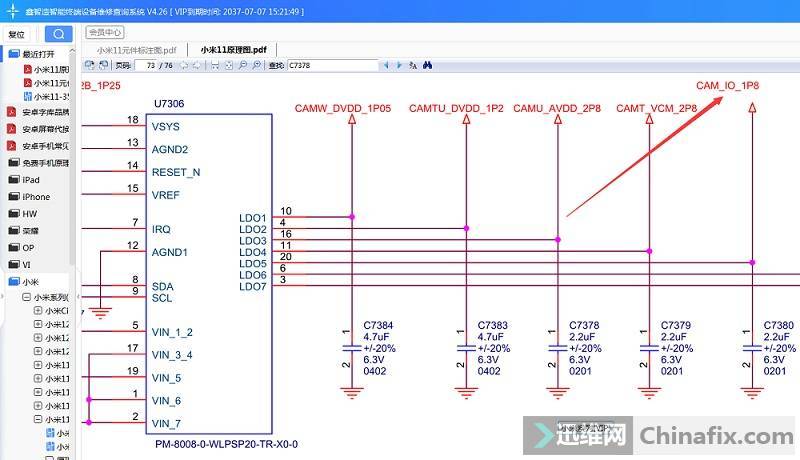

The camera power supply U7306 is still found.

479;IMG_263

Xiaomi 11 mobile phone photo flash back repair Figure 8.

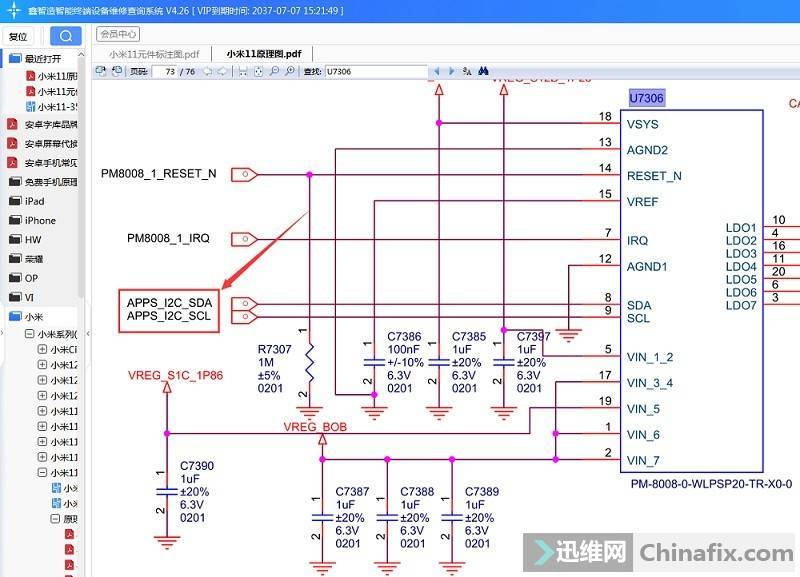

As we have redone this adhesive power supply, we can basically eliminate Inveracious Soldering and damage. After checking its working conditions, it is found that there are two i2c buses.

548;IMG_264

Xiaomi 11 mobile phone photo flash back repair Figure 9.

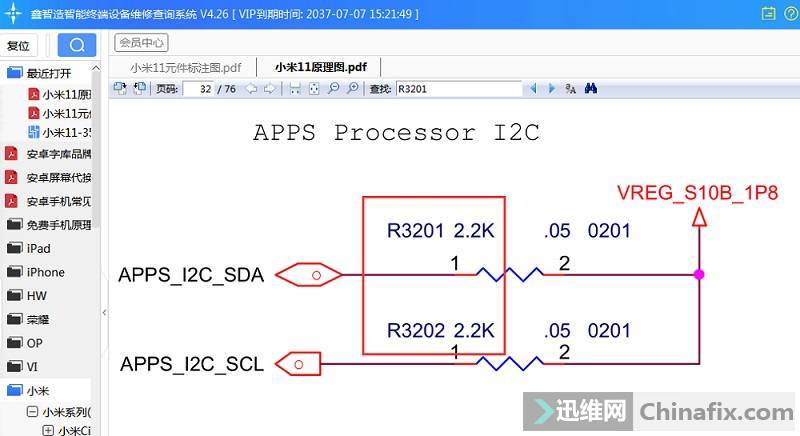

The bus goes straight to CPU with two pull-up resistors in the middle.

585;IMG_265

Xiaomi 11 mobile phone photo flash back repair figure 10.

604;IMG_266

Xiaomi 11 mobile phone photo flash back repair Figure 11.

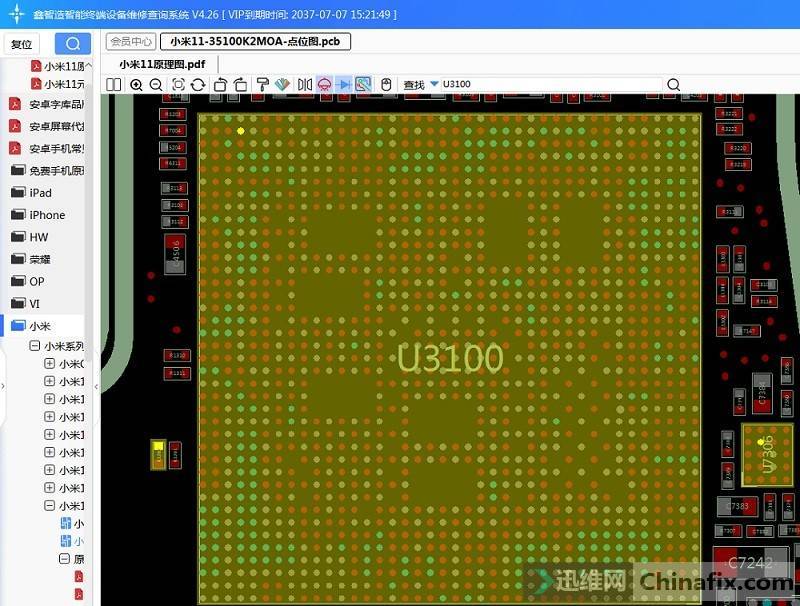

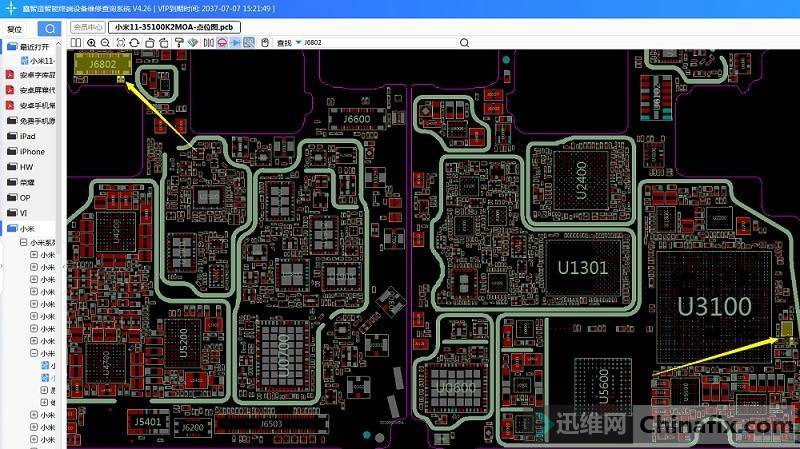

When measuring the two resistors diode value, it is found that GND is connected to the CPU at one end of C3201.

650;IMG_267

Xiaomi 11 mobile phone photo flash back repair figure 12.

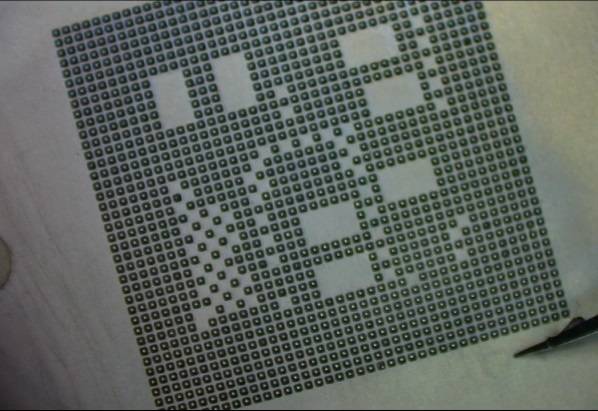

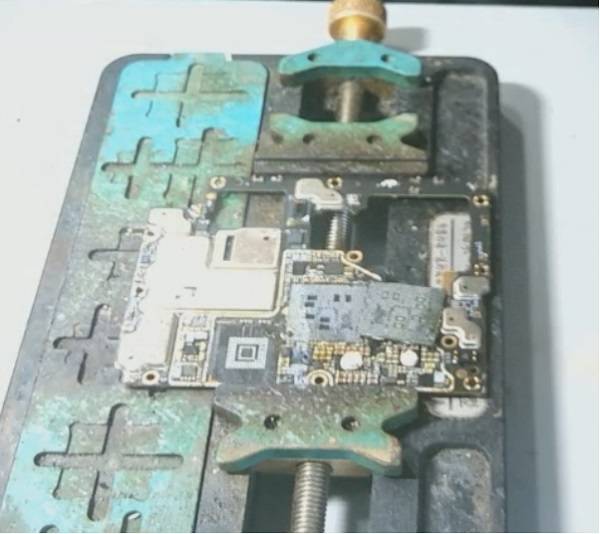

Then redo the CPU.

678;IMG_268

Xiaomi 11 mobile phone photo flash back repair figure 13.

697;IMG_269

Xiaomi 11 mobile phone photo flash back repair figure 14.

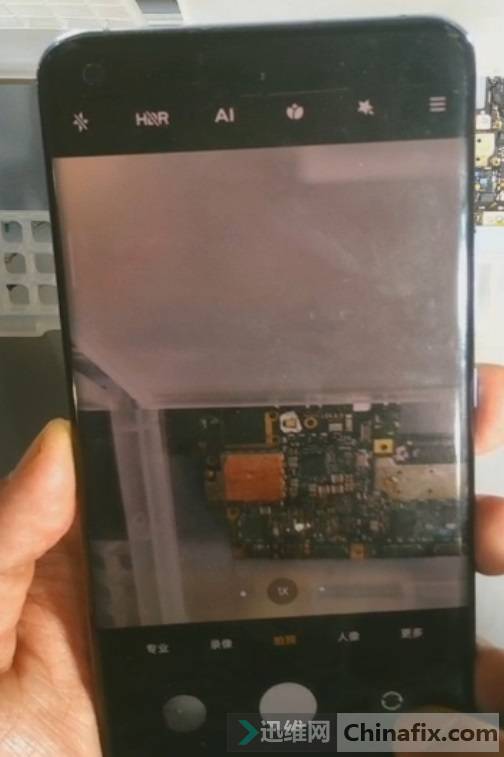

Maintenance result: boot test, perfect repair.

732;IMG_270

Xiaomi 11 mobile phone photo flash back repair figure 15.
