Xiaomi 10 water damage no booting repair

Xiaomi 10,water damage,no booting and PCB layer were burned through and scraped to the second layer Jump wire.

Xiaomi 10 water damage no booting repair

Machine model: Xiaomi 10

Fault phenomenon:water damage no booting

Maintenance process:

Received a set of Xiaomi 10 water damage no booting from the customer and measured to vreg_Bob VCC,Short circuit caused switch,Current protection,no booting,water damage to burn through, scrape to the second layer, scrape to the VCC, not Short circuit, start the machine normally.

Xiaomi 10 water damage no booting repair

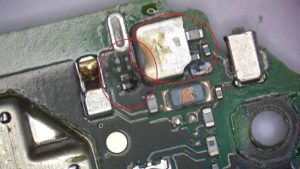

Xiaomi 10 water damage no booting repair Figure 1.

Xiaomi 10 water damage no booting repair

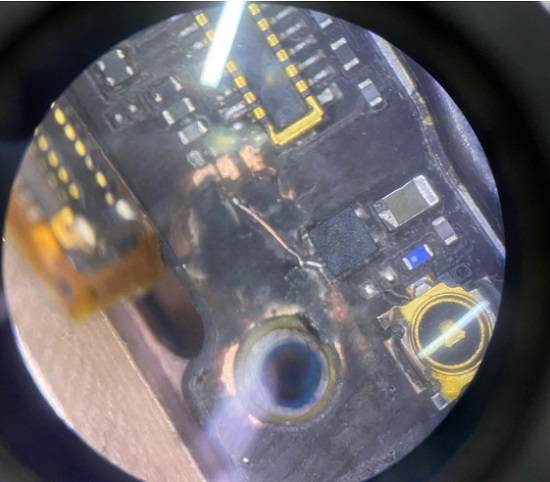

Xiaomi 10 water damage no booting repair Figure2.

Xiaomi 10 water damage no booting repair

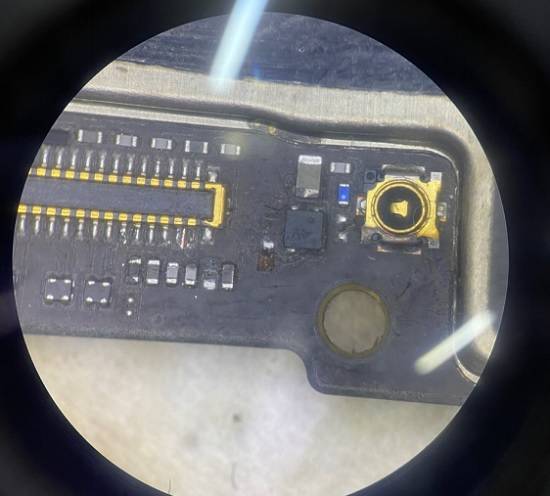

Xiaomi 10 water damage no booting repair Figure3.

203;IMG_259

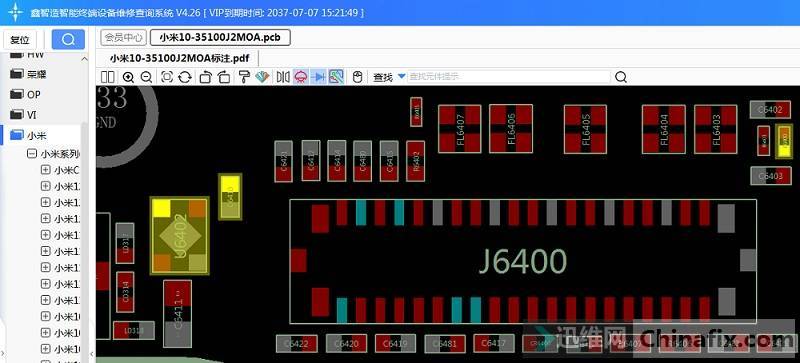

Xiaomi 10 water damage no booting repair Figure 4.
