ASUS k53s laptop boot indicator light is on,Won’t Turn On, found that the arrow points to two MOSFET, no conduction is controlled by a small six pin chip behind, can not find the same replacement, directly remove short-circuit 34 pin, the current immediately surged up,Normally booting up.

[machine model] ASUS k53s notebook

[fault phenomenon] the laptop boot indicator is on,Won’t Turn On

[maintenance process]

Received an ASUS k53s notebook, can turn on the indicator light, the current is only 0.1.After standby 0.02 switch, the current is only 0.1, 3.3V and 5V memory power is normal. Without CPU graphics card,VCC,CLK reset is normal, BIOS is also brushed, and the well-known resistors are soldered once, which has no effect.

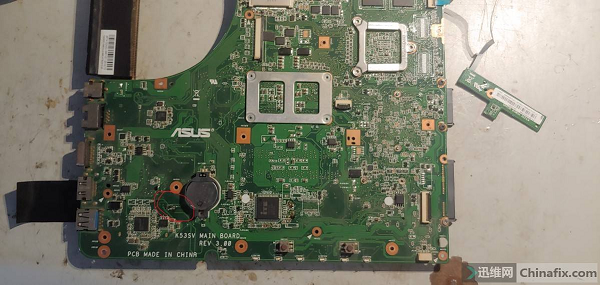

ASUS k53s laptop boot indicator is on,Won’t Turn On maintenance Figure 1

ASUS k53s laptop boot indicator is on,Won’t Turn On maintenance Figure 2

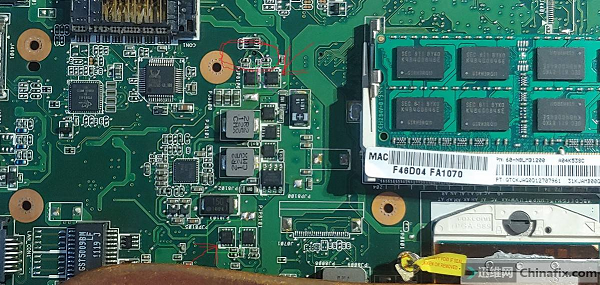

Finally, it is found that the arrow points to two MOSFET, and no conduction is controlled by a small six pin chip.

ASUS k53s laptop boot indicator is on,Won’t Turn On maintenance Figure 3

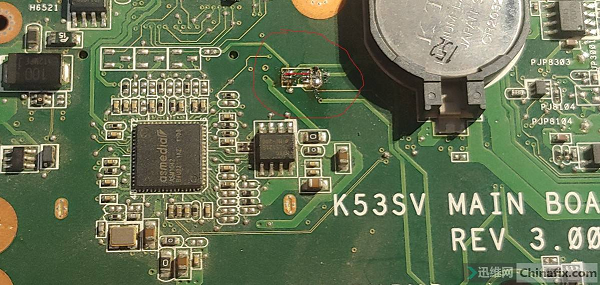

And can not find the same replacement, directly remove short-circuit 34 pin, the current immediately sped up,Normally booting up.Although the boot can run normally, but the shutdown indicator light is still on, directly control the other MOSFET signal to the root line.

ASUS k53s laptop boot indicator is on,Won’t Turn On maintenance Figure 4

After all, it’s an old machine. It sticks to the principle of being able to use it. It’s barely repaired.

ASUS k53s laptop boot indicator is on,Won’t Turn On maintenance Figure 5
