The recording function of iPhone XR phone can’t be used, and the caller can’t hear the repair
Machine model: iPhone XR
Malfunction: After falling into the fire, the recording function of the mobile phone can’t be used, and the caller can’t hear it.

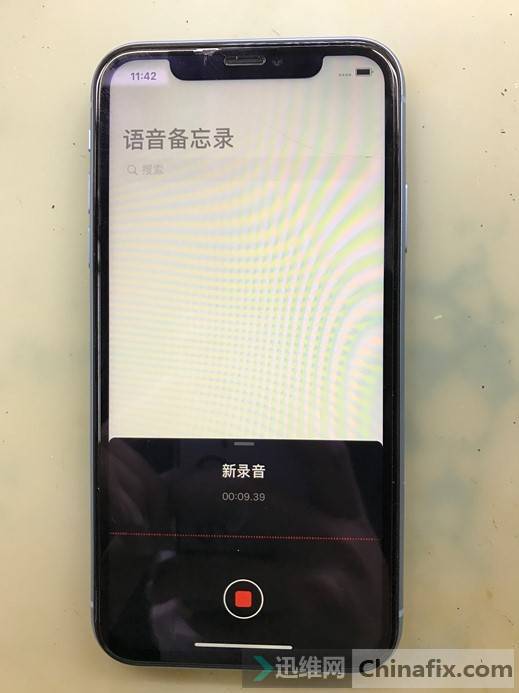

Maintenance: Test function, there is no sound in the voice memo.
The recording function of iPhone XR mobile phone can’t be used, and the caller can’t hear it. Maintenance Figure 1.

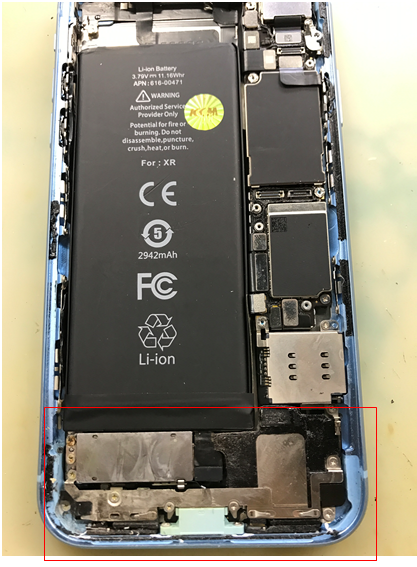

Open it and find that the lower part of the phone has been burnt and deformed.
The recording function of iPhone XR phone can’t be used, and the caller can’t hear the service figure 2.

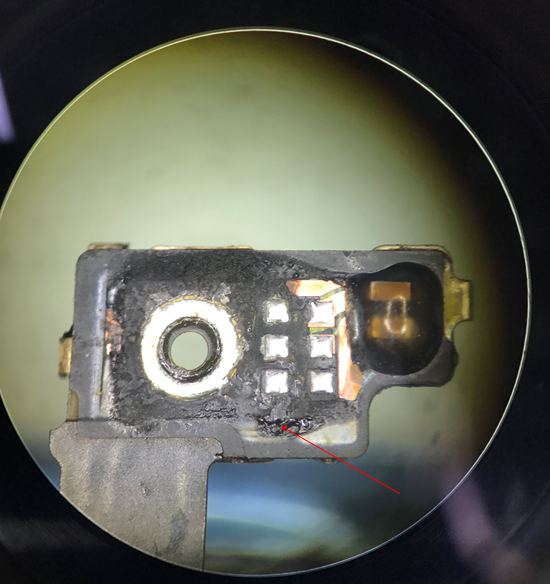

The MIC on charging connector is burnt.
The recording function of iPhone XR mobile phone can’t be used, and the caller can’t hear it. Repair Figure 3.
Other parts can still be used, so it is not necessary to replace charging connector for the time being, just replace MIC directly.
The recording function of iPhone XR mobile phone can’t be used, and the caller can’t hear it. Maintenance Figure 4.

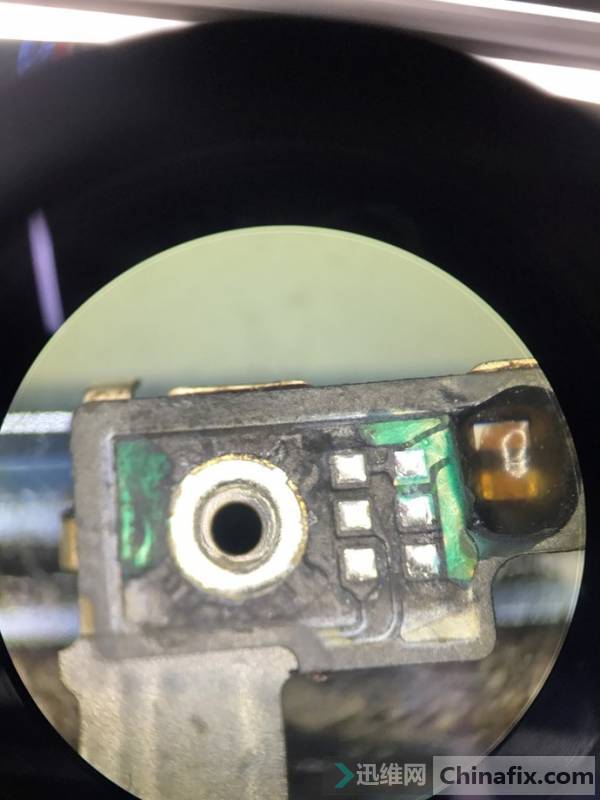

Remove MIC to clean the burnt black carbon, and make up Solder Mask insulation for the copper leakage.
The recording function of iPhone XR phone can’t be used, and the caller can’t hear the service figure 5.

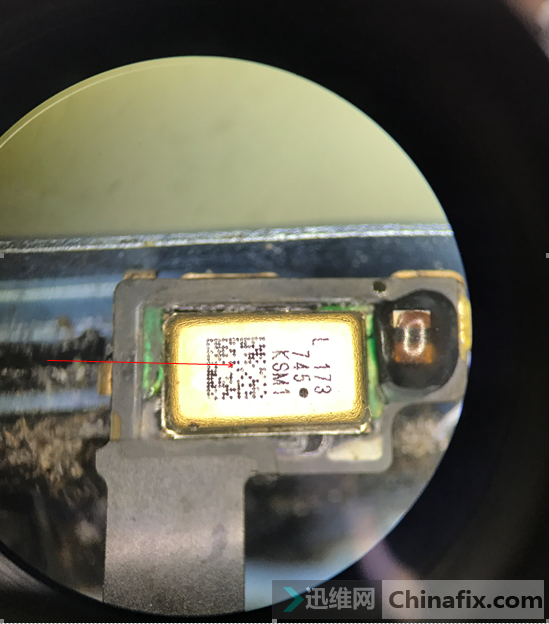

Change a good MIC.
The recording function of iPhone XR mobile phone can’t be used, and the caller can’t hear it. Maintenance Figure 6.

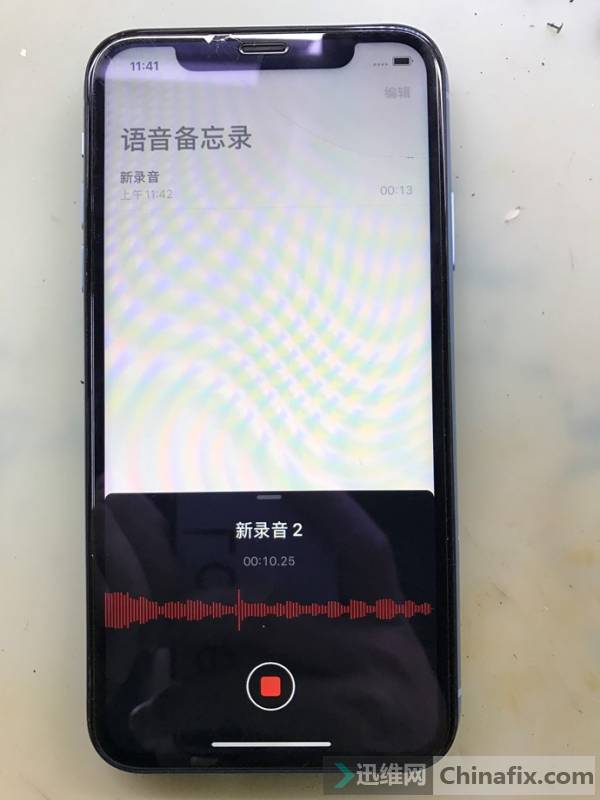

Installation test, recording,microphone function returned to normal, and maintenance ended.
The recording function of iPhone XR phone can’t be used, and the caller can’t hear the service figure 7.
This fault is caused by MIC damage of charging connector without recording,no microphone.
