Lenovo Z500 laptop has standby not trigger repair

IMG_259

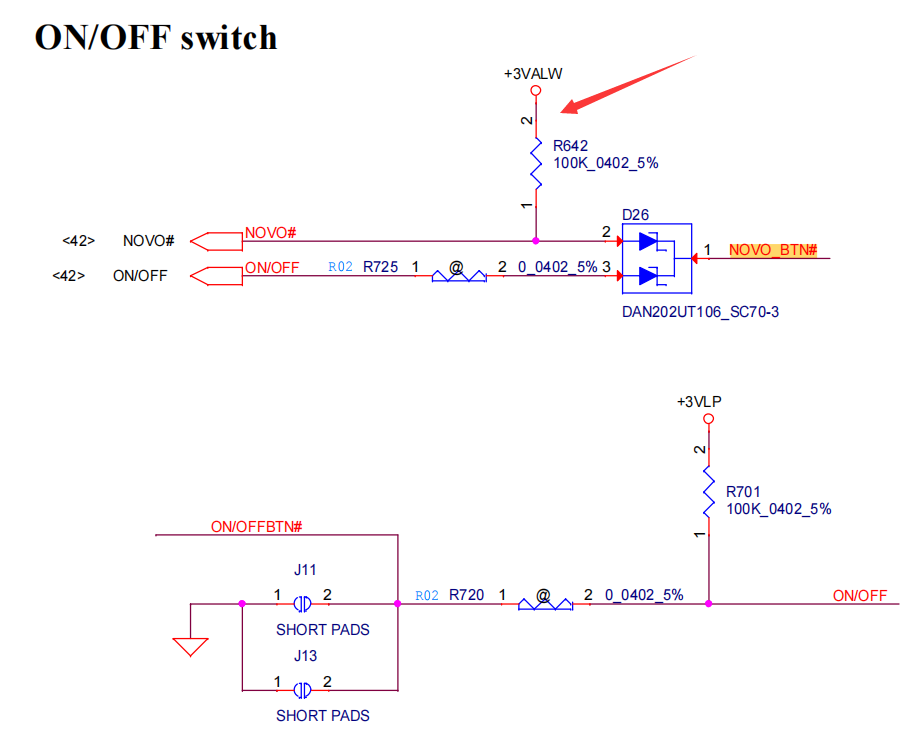

Lenovo Z500 notebook standby does not trigger repair, check the switch JPWRB1 4-pin voltage is 1.13V is not correct, D26 2-pin resistor R642 end 3.3, end 1.131, this resistor has a problem. Directly remove this resistor a line to pull over, and then power on the test 4 pin voltage 3.3 has, boot trigger, troubleshooting, repair to this end.
