Summary of Lenovo CIH61MI motherboard V1.1 common failing
Machine model: Lenovo CIH61MI motherboard V1.1

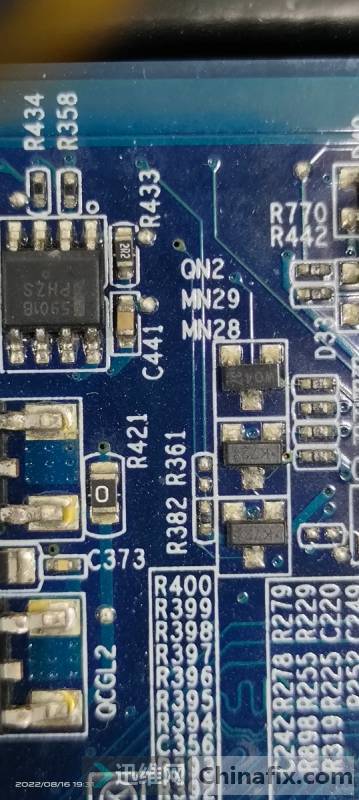

Summary of Lenovo CIH61MI motherboard V1.1 common failing Figure 1
Summary of Lenovo CIH61MI motherboard V1.1 common failing Figure 2.
Fault phenomenon: 1. Start auto power off, not timing auto power off.
Maintenance process: VR of VRM chip_EN is not VCC or VCC decreases suddenly, replace QN1 and qn2.

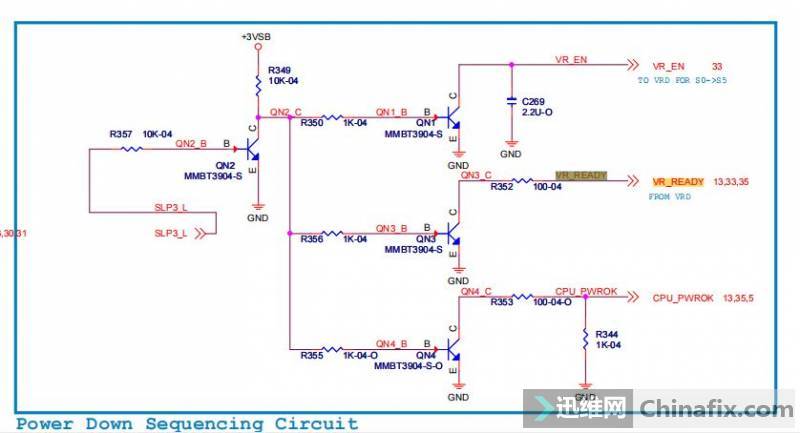

Summary of Lenovo CIH61MI motherboard V1.1 common failing Figure 3.
Fault phenomenon: 2.CLK does not reset when powered on.
Maintenance process: PCH_Syspwrok signal VCC low, VR_The ready signal VCC is low.Replace mn28 and mn29.

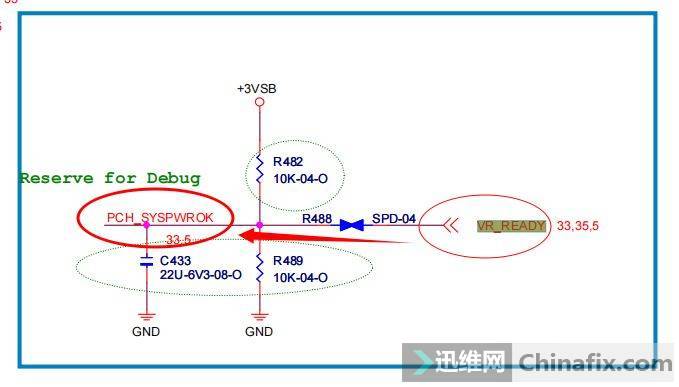

Summary of Lenovo CIH61MI motherboard V1.1 common failing Figure 4.

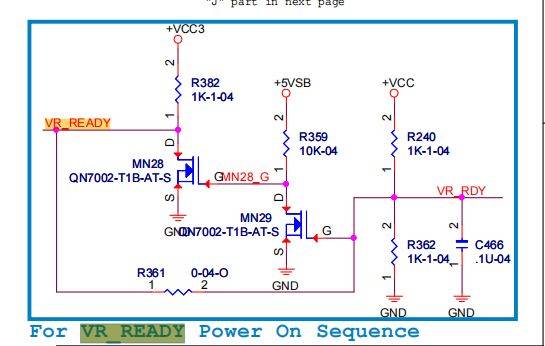

Summary of Lenovo CIH61MI motherboard V1.1 common failing Figure 5.
