Repair of MacBook a1932 water damage fan running wildly

MacBook a1932 water damage fan ran wildly and did not recognize the battery. Using Apple's online diagnosis, it was found that there were two faults error code. After checking, it was found that the line from q6950 to r6951 to battery BTB connector was broken, and a wire was lost to solve the problem.

Repair  of MacBook a1932 water damage fan running wildly

Machine model: MacBook a1932

Fault phenomenon: it can be started but the fan is running wildly

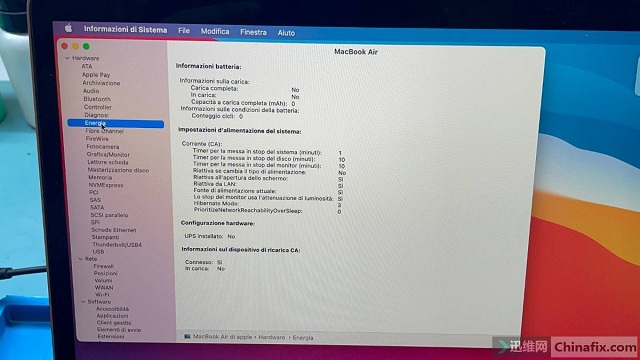

Maintenance process: at first, I thought it was a peripheral problem, but I replaced another set of casing, and the fault was still the same.After entering the system, I didn’t even recognize the battery. As soon as I pulled out the charger, I stood by.

191;IMG_256
MacBook a1932 water damage fan running wildly, battery maintenance Figure 1

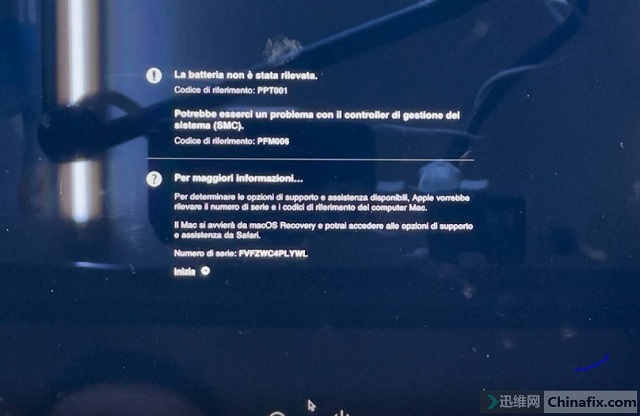

Using Apple’s online diagnosis, we found two faults error code. The first one is that the battery cannot be identified, and the second is that the SMC may be faulty. However, Apple’s diagnosis can not explain any detailed problems.

284;IMG_257
MacBook a1932 water damage fan running wildly, battery maintenance Figure 2

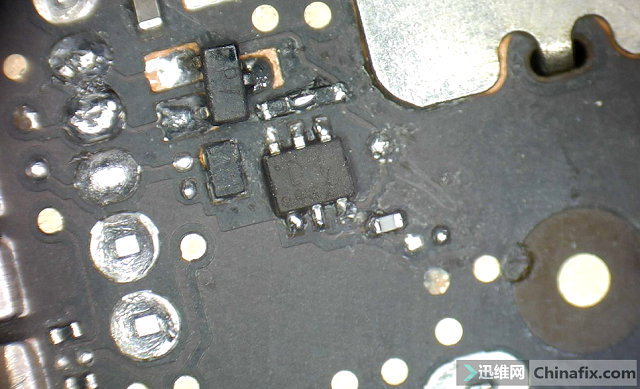

It was found that there was something wrong with the battery BTB connector when the machine was disassembled.corrode phenomenon was found. This picture was taken later.

348;IMG_258
MacBook a1932 water damage fan running wildly, battery maintenance Figure 3

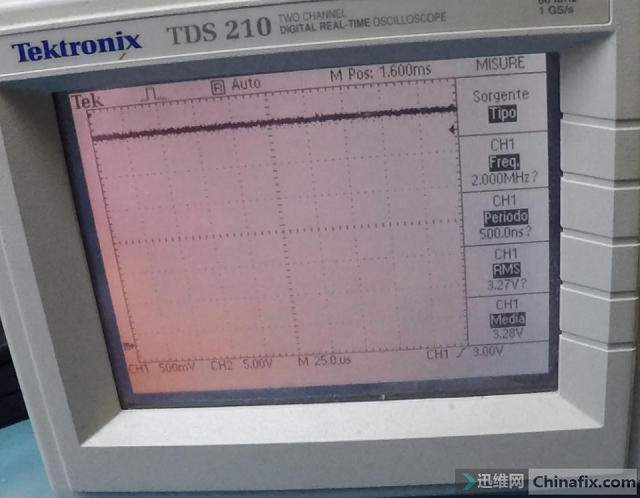

With an oscilloscope, the SCL pin of the battery is only 3.3V, but there is no waveform. This problem multimeter should be hard to find.

425;IMG_259
MacBook a1932 water damage fan running wildly, battery maintenance Figure 4

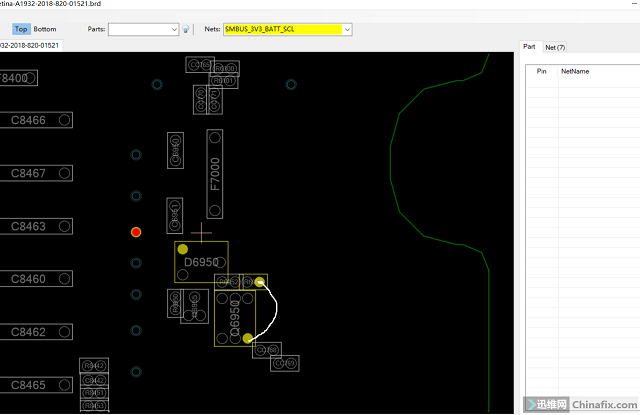

After checking, it was found that the wire from q6950 to r6951 to the battery BTB connector was disconnected, and a wire was lost to solve the problem.

491;IMG_260
water damage nce of MacBook a1932

522;IMG_261
MacBook a1932 water damage fan running wildly, battery maintenance Figure 6

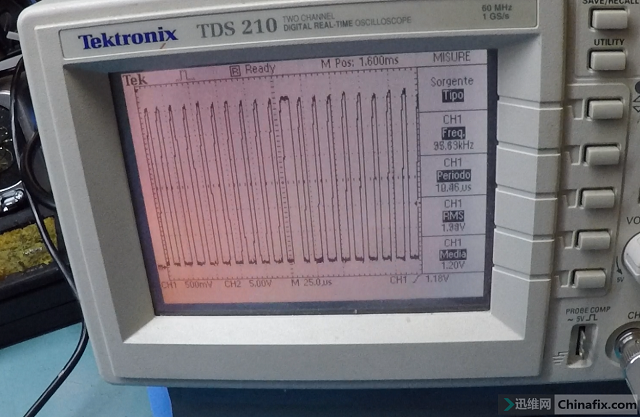

553;IMG_262
MacBook a1932 water damage fan running wildly, battery maintenance Figure 7

Apple’s design is not very good. The T2 chip replaces the original SMC, so the battery power and temperature information is managed by T2, but the I2C of T2 is 1.8V, the battery is 3.3V, and the q6950 plays a role of signal amplification.
