Machine model: GA-H61MA-D2V

Fault phenomenon: no VTT VCC

Maintenance process:

Repair of GA-H61MA-D2V without VTT power supply

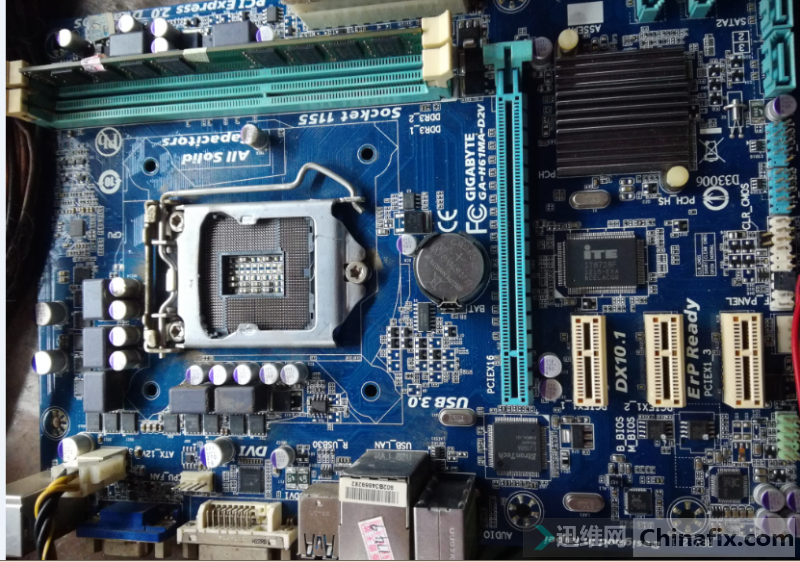

Repair of GA-H61MA-D2V without VTT power supply Figure 1.

The auto restart will not stop when the auto restart is on for maintenance

Memory: 1.53v normal

PCH: 1.06v normal

PLL: 1.83v normal

VTT: 0V abnormal

No VTT VCC

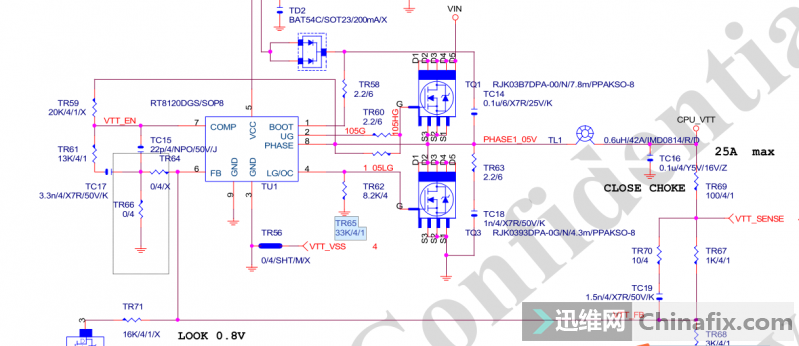

It is the same to replace rt8120d, and it is the same to replace another one.Remove the Q6 Q7 Q8 Q9 control system and completely remove it (two of which should be VTT ˊ en’s) or the same.
325;IMG_257
Repair of GA-H61MA-D2V without VTT power supply Figure 2.

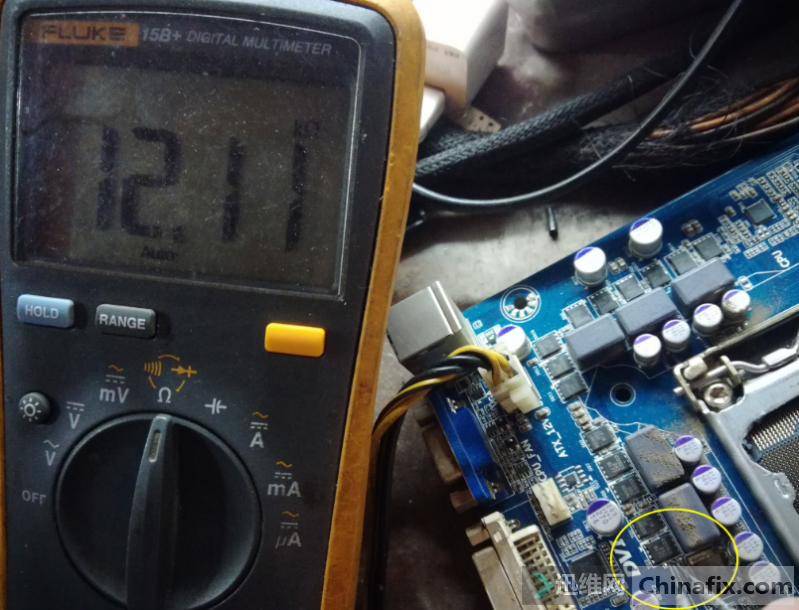

When tq1, tq3,MOSFET, grade g, ground,diode value, upper tube 600,or so were normal, and lower tube g pole 110 was lower.Remove the tr65 33K resistor and measure that the tr65 diode value is only 12K low.
425;IMG_258
Repair of GA-H61MA-D2V without VTT power supply Figure 3.

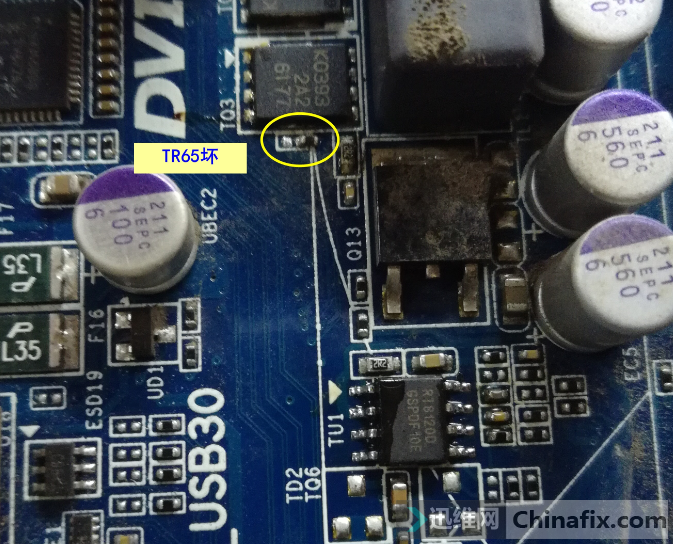

Find a 34k resistor in 78mlt-s2 Parts motherboard and replace it. The lower tube tq3 g pole to ground diode value returns to 500 + normal.
500;IMG_259

Repair of GA-H61MA-D2V without VTT power supply Figure 4.

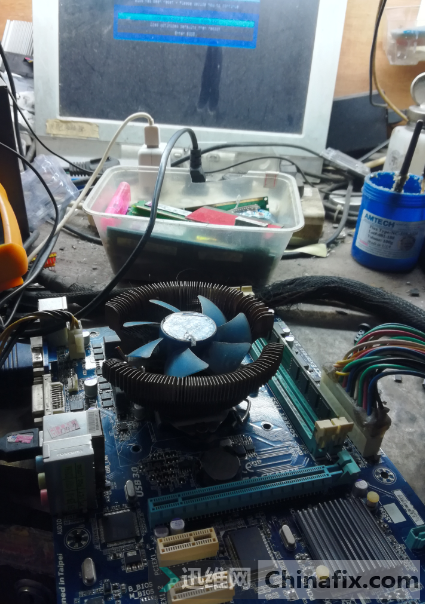

Power on test VTT recovered 1.05v, normal, u test normal light, replace tr65 fault solved!
568;IMG_260
Repair of GA-H61MA-D2V without VTT power supply Figure 5.
