Machine model: Lenovo Xiaoxin Air 14IKBR notebook

Malfunction: the laptop screen is dark.

Maintenance process:

A Lenovo Xiaoxin Air 14IKBR notebook, the fault is that the laptop screen is dark and the backlight is not bright.

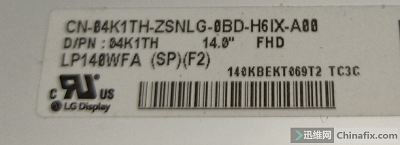

Disassembly and replacement screens can be displayed normally. This screen has glass in the front, so the replacement cost is expensive. Choose the maintenance screen and screen model.

Repair of dark screen of Lenovo Xiaoxin Air 14IKBR notebook computer

Lenovo Xiaoxin Air 14IKBR notebook computer dark screen maintenance Figure 1

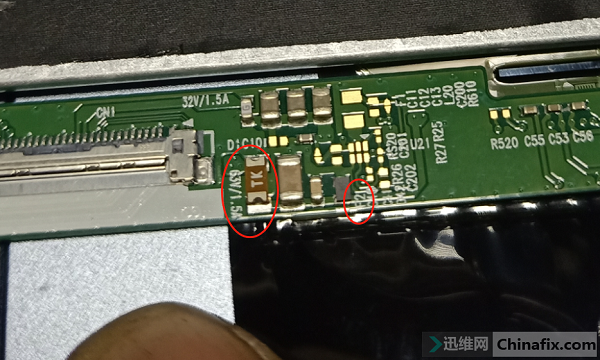

When the screen is turned on, it is found that the screen backlight insurance F2 63V/1.5A is open.

Repair of dark screen of Lenovo Xiaoxin Air 14IKBR notebook computer

Lenovo Xiaoxin Air 14IKBR notebook computer dark screen maintenance Figure 2

The rear safety stage is open to ground.

Repair of dark screen of Lenovo Xiaoxin Air 14IKBR notebook computer

Lenovo Xiaoxin Air 14IKBR notebook computer dark screen maintenance Figure 3

Trace to Q1, measure the breakdown short circuit of 2-3 pins, disassemble the corresponding Q1 pipe and insurance on the material board, and after the replacement is completed, turn it on and light it up perfectly.

IMG_259

Lenovo Xiaoxin Air 14IKBR notebook computer dark screen maintenance Figure 4
