Redmi NotE8 boot screen is not bright, replace the boost Inductor at the display input, and fix the fault.

Redmi note8 startup screen does not light up for repair

Type of failure: Redmi Note8

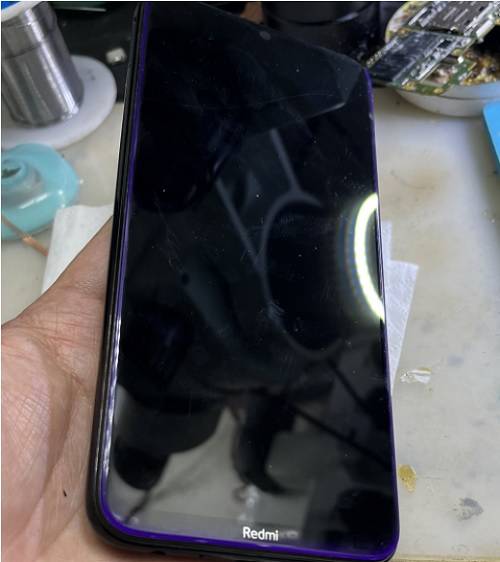

Malfunction: The machine is water damage, but it is turned on without display or backlight.

Redmi note8 startup screen does not light up for repair

Redmi note8 startup screen does not light up for repair figure 1.

Fault analysis:VCC corrode should be checked first for the display lamp control fault caused by water damage.

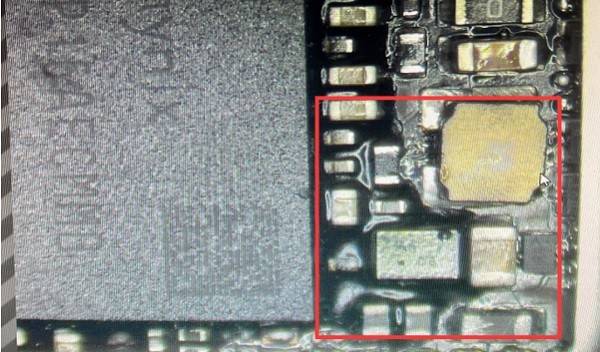

Maintenance process: firstly, observe that the light control part of the main board is covered with sealant, and there is no trace of water damage.

Redmi note8 startup screen does not light up for repair

Redmi note8 startup screen does not light up for repair figure 2.

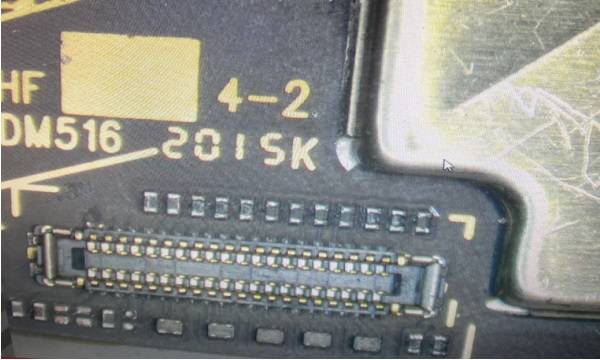

Observation shows that BTB connector is also clean.

Redmi note8 startup screen does not light up for repair

Redmi note8 startup screen does not light up for repair figure 3.

211;IMG_259

Redmi note8 startup screen does not light up for repair figure 4.

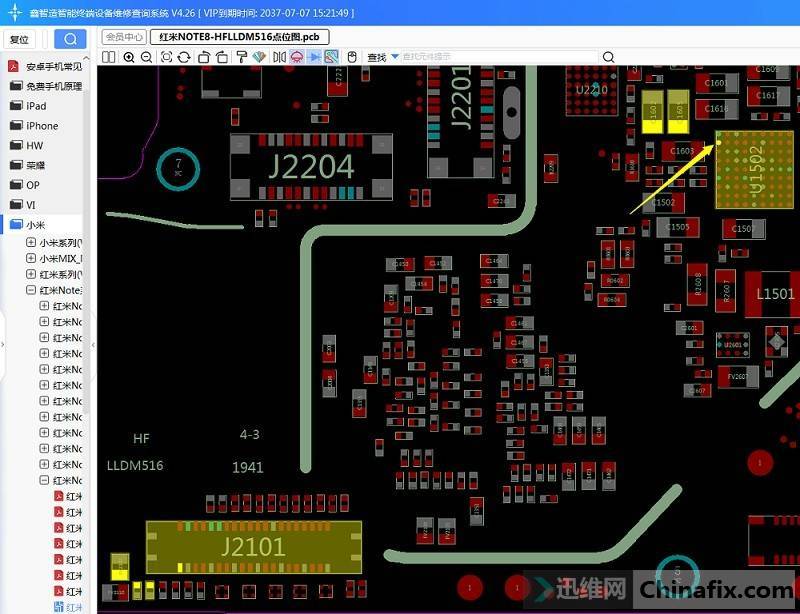

According to Boardview, the display ic is integrated in the charging ic.

252;IMG_260

Redmi note8 startup screen does not light up for repair figure 5.

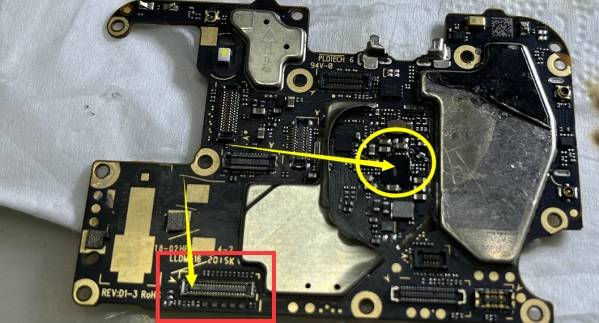

Unpacking shielding cover found corrode above the chip.

289;IMG_261

Redmi note8 startup screen does not light up for repair figure 6.

auto power off,pin, and some corrode.

323;IMG_262

Redmi note8 startup screen does not light up for repair figure 7.

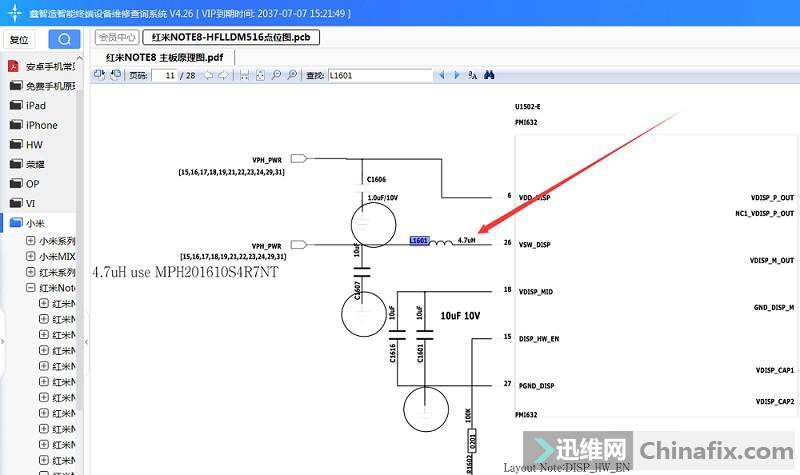

This is the step-up Inductor at the display input, so replace it directly.

365;IMG_263

Redmi note8 startup screen does not light up for repair figure 8.

Maintenance result: boot test, perfect repair.

402;IMG_264

Redmi note8 startup screen does not light up for repair figure 9.
