Redmi k30 PromobileWon’t Turn On repair

Redmi k30 PromobileWon't Turn On, redo CPU fault repair.

Redmi k30 PromobileWon’t Turn On repair

Machine model: Redmi k30 Pro
Malfunction: the power-on current is 120ma to 260ma current of change, the power-off current is 0, and the mobile phone Won’t Turn On.
Maintenance process:
Redmi k30 pro has a startup current of 120ma to 260ma current of change, a key release current of 0, and a charging current of 0.1A Redo the CPU fault repair.

Redmi k30 PromobileWon't Turn On repair

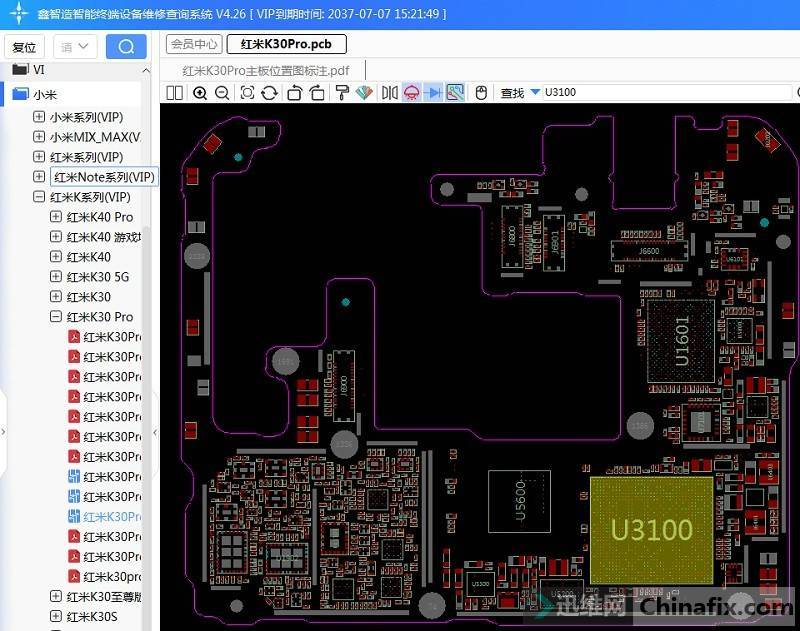

Redmi k30pro mobile phone Won’t Turn On repair figure 1.

Redmi k30 PromobileWon't Turn On repair

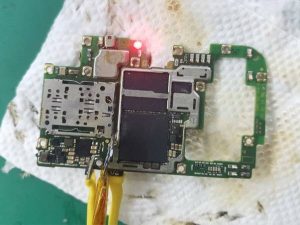

Redmi k30pro mobile phone Won’t Turn On repair figure 2.
