Redmi note 8 Pro water damage does not take photos, and the flat cable and BTB connector are cleaned again and the fault is repaired.

Red rice note 8 Pro does not take photos when water enters

Machine model: Redmi note 8 Pro

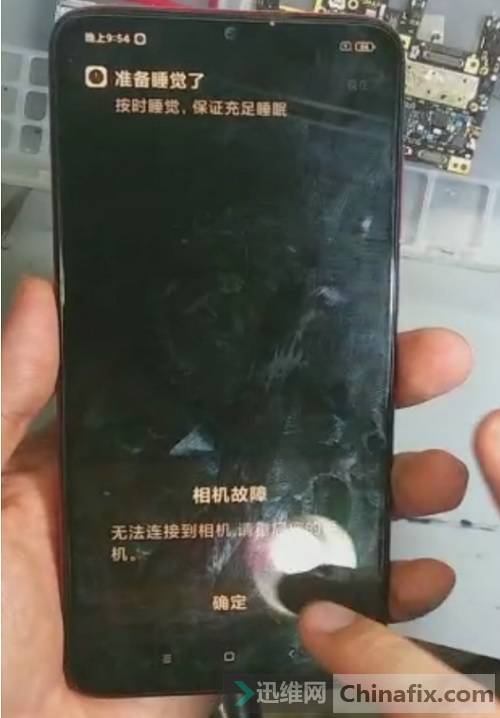

Fault phenomenon: the machine is water damage, open the camera prompt unable to connect to the camera, please restartmobile phone.

Red rice note 8 Pro does not take photos when water enters

Red rice note 8 Pro does not take photos when water enters Figure 1.

Fault analysis:water damage caused by not taking pictures is mainly VCC,corrode and I2C corrode.

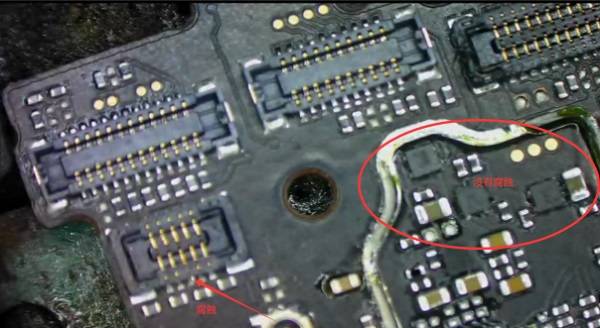

Maintenance process: observe that the main board camera BTB connector is very clean.corrode traces are found on the left side of BTB connector in front of the camera.

Red rice note 8 Pro does not take photos when water enters

Red rice note 8 Pro does not take photos when water enters Figure 2.

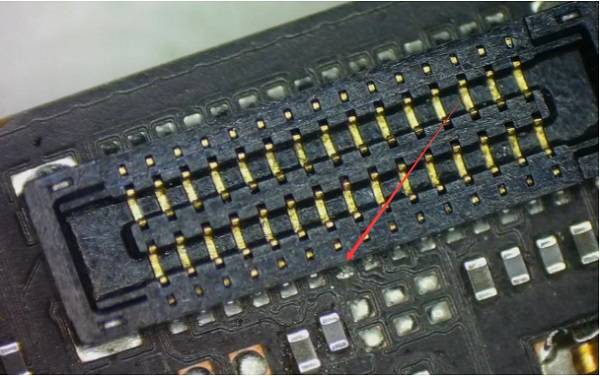

After cleaning, the boot failure still remains.A pin Inveracious Soldering was found after careful observation of the rear main image head BTB connector.

Red rice note 8 Pro does not take photos when water enters

Red rice note 8 Pro does not take photos when water enters Figure 3.

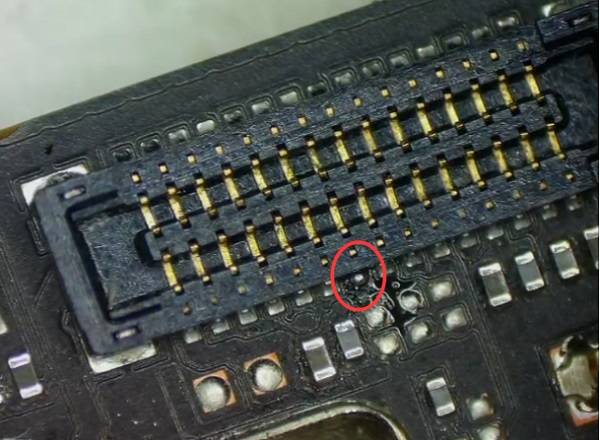

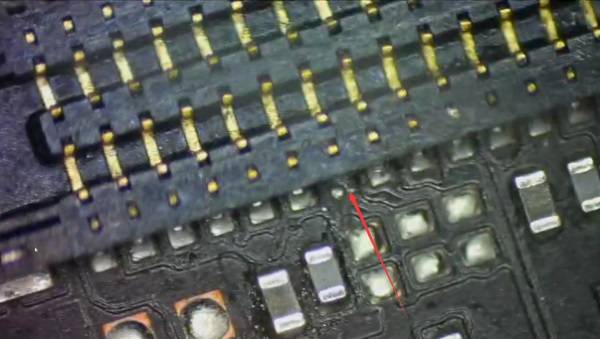

Pull the tweezers, solder pin, and solder paste is added.

386;IMG_259

Red rice note 8 Pro does not take photos when water enters Figure 4.

411;IMG_260

Red rice note 8 Pro does not take photos when water enters Figure 5.

Repeat welding hit diode value to return to normal, boot test failure is still the same.

457;IMG_261

Red rice note 8 Pro does not take photos when water enters Figure 6.

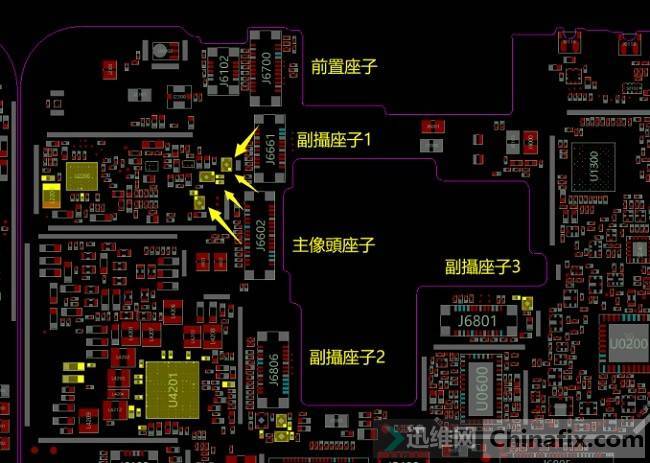

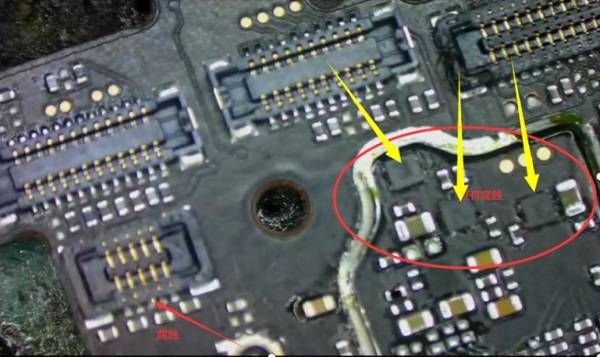

From Boardview, we know that the VCC of the main camera comes from several pentagonal tubes in shielding cover.

512;IMG_262

Red rice note 8 Pro does not take photos when water enters Figure 7.

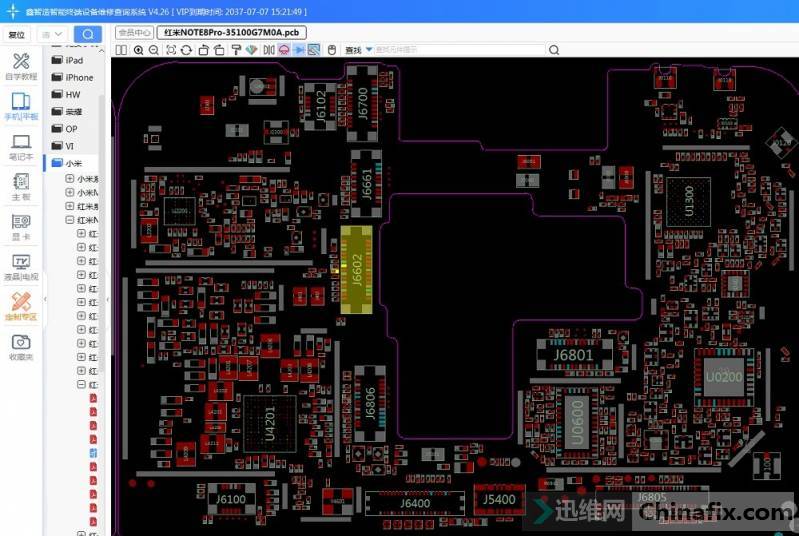

It is very clean to disassemble shielding cover.The main camera I2C is directly connected to the CPU without pulling up.

568;IMG_263

Red rice note 8 Pro does not take photos when water enters Figure 8.

The desoldered pin is all I2C. Now diode value is normal. Considering that the overall motherboard is a small amount of slight corrode,VCC and I2C are basically excluded.Install a rear master Camera separately, and it can take pictures after startup test.

665;IMG_264

Red rice note 8 Pro does not take photos when water enters Figure 9.

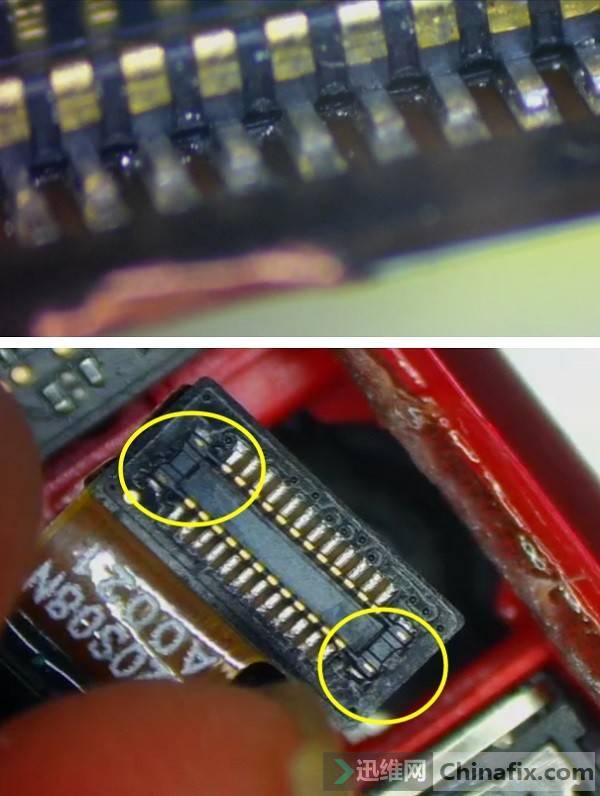

Therefore, each Camera was installed one by one. It was found that the camera could not be turned on when the front image head was installed. If the camera icon was pressed for a long time, the front shoot could not be opened.So we check the prefix and BTB connector here.

755;IMG_265

Red rice note 8 Pro does not take photos when water enters Figure 10.

The flat cable and BTB connector were cleaned up again.

814;IMG_266

Red rice note 8 Pro does not take photos when water enters Figure 11.

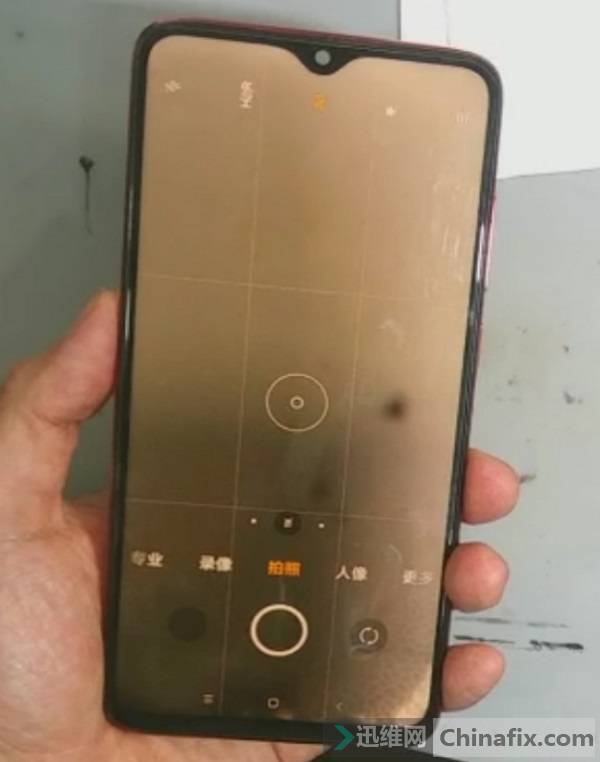

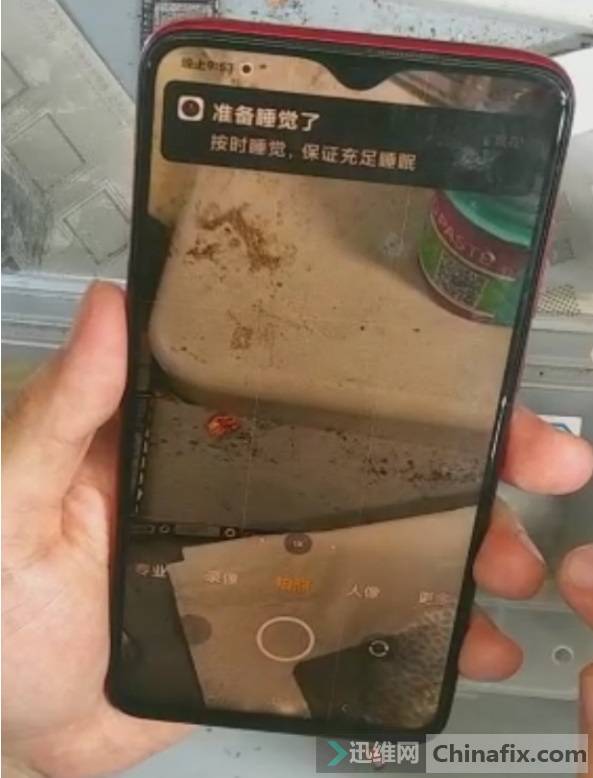

Maintenance results: boot test, perfect repair.

856;IMG_267

Red rice note 8 Pro does not take photos when water enters Figure 12.
