OPPO renlme GT can’t be turned on

OPPO renlme really can't start the machine. After replacing the CPU RAM, the fault was repaired.

OPPO renlme GT can’t be turned on

Machine model: OPPO renlme GT

Fault phenomenon: OPPO renlme GT was charging the night before. When I got up the next morning, I found that the mobile phone couldn’t turn on suddenly. Pressing the power on button didn’t respond.

OPPO renlme GT can't be turned on

OPPO renlme GT can’t be turned on  Figure 1.

Maintenance process: according to the customer’s description, the mobile phone was charged and then could not be turned on the next day.

OPPO renlme GT can't be turned on

OPPO renlme GT can’t be turned on  Figure 2.

After dismantling the machine, power on short-circuit current separately for the main board. After replacing a charging chip, it is still short-circuit current.

OPPO renlme GT can't be turned on

OPPO renlme GT can’t be turned on  Figure 3.

According to experience, it should be caused by Short circuit.Open all shielding cover and measure the ground value of Capacitor. It is found that there is one VCC Short circuit.

322;bbac3522a148f380cb2b597f674dc5c5

OPPO renlme GT can’t be turned on  Figure 4.

The main board was fumigated with Colophony (Solder), and the circuit VCC was burned with 1V. At the same time, through the thermal imaging observation of infrared Camera, it was found that there was a problem with one of Capacitor.

390;df29a2231a37cf6b0c9759e2cf3b9e69

OPPO renlme GT can’t be turned on  Figure 5.

414;bcae81e69c52b4344bdb31ae63e3b590

OPPO renlme GT can’t be turned on  Figure 6.

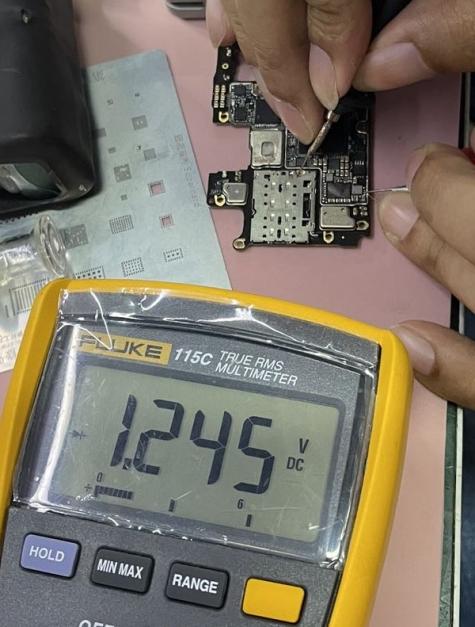

After deducting the problem Capacitor, the ground value is measured again to be 1.245v, indicating that the problem of Short circuit has been solved.short-circuit current time, use the regulated power supply to power on and find that the mobile phone can be turned on, but auto restart will be turned on.

509;e400aad23f97315ef37eff6458b18ad0

OPPO renlme GT can’t be turned on  Figure 7.

533;d2bce55ab30b48741399d5df45d5959d

OPPO renlme GT can’t be turned on  Figure 8.

It was found that the main board high temperature was very serious after the machine was disassembled. This restart should be caused by the temperature of Qualcomm snapdragon 888 CPU being too high. The CPU was redone and the fault was still the same. After replacing an RAM, the fault was repaired.

624;be7863af2e488e8799c2049bfb5649f8

OPPO renlme GT can’t be turned on  Figure 9.

648;79dd9ee3c0d161ea6a7520d50f9f584e

OPPO renlme GT can’t be turned on  Figure 10.
