Machine model: Lenovo z485 notebook

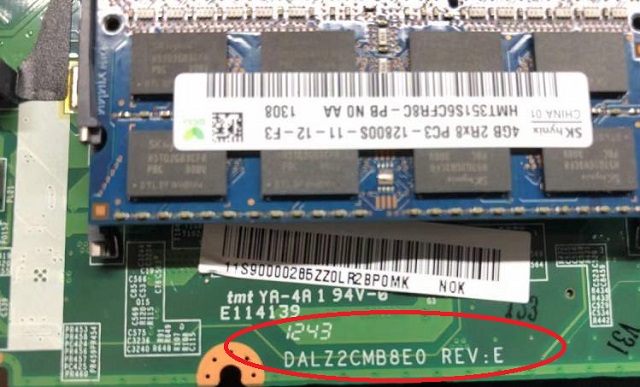

Board No.: dalz2cmb8e0

Lenovo z485 notebook switch current 0.028 maintenance
Lenovo z485 notebook switch current 0.028 maintenance Figure 1

Fault phenomenon: the current of notebook switch is 0.028

Lenovo z485 notebook switch current 0.028 maintenance
Lenovo z485 notebook switch current 0.028 maintenance Figure 2

Maintenance process:

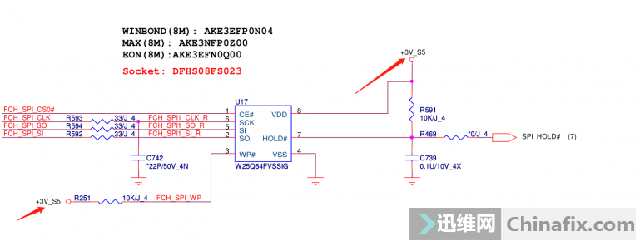

Take apart the machine to measure all items of VCC without Short circuit, and measure the standby 3V and 5V normally. When measuring BIOS 8 pin and 3 pin, it is found that there is only 1.7V, which should be 3.3V normally.

Lenovo z485 notebook switch current 0.028 maintenance

Lenovo z485 notebook switch current 0.028 maintenance Figure 3

215;IMG_259
Lenovo z485 notebook switch current 0.028 maintenance Figure 4

Measurement found + 3V_S5 VCC is pulled down by 1.7V.According to the drawing pq142, 2, 3 pin,VCC are normal, pr432, pr437,diode value and VCC are normal, so it is judged that the problem is pq138.

联想Z485笔记本触发电流0.028维修 图5
Lenovo z485 notebook switch current 0.028 maintenance Figure 5

340;IMG_261
Lenovo z485 notebook switch current 0.028 maintenance Figure 6

Parts motherboard to remove a change, plug in, power on, the current easily run up.

联想Z485笔记本触发电流0.028维修 图7
Lenovo z485 notebook switch current 0.028 maintenance Figure 7

The screen lights up successfully and the repair is over.
