Lenovo ThinkPad P50 Notebook no booting repair

Lenovo ThinkPad P50 notebook no booting,Connect the power supply large current Road, the original problem is here.

Lenovo ThinkPad P50 Notebook no booting repair

Machine model: Lenovo ThinkPad P50

Main board version number: NM-A451

Malfunction: Notebook no booting

Maintenance process:

I received a Lenovo ThinkPad P50 notebook computer, the fault description notebook no booting, CPU Short circuit,Connect the power supply large current.

联想ThinkPad P50笔记本不开机维修 图1

Lenovo ThinkPad P50 Notebook no booting repair Figure 1.

Simple investigation, breakdown of isolation tube.

Lenovo ThinkPad P50 Notebook no booting repair

Lenovo ThinkPad P50 Notebook no booting repair Figure 2.

联想ThinkPad P50笔记本不开机维修 图3

Lenovo ThinkPad P50 Notebook no booting repair Figure 3.

联想ThinkPad P50笔记本不开机维修 图4

Lenovo ThinkPad P50 Notebook no booting repair Figure 4.

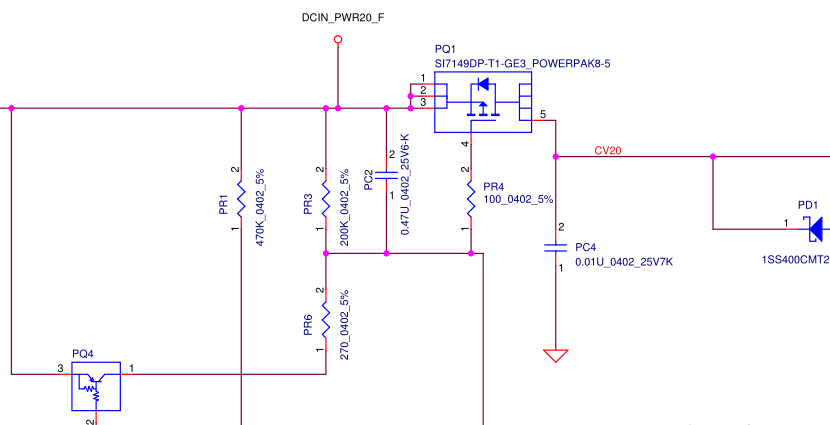

Remove the public terminal VINT20 of PL23 PL24 instead of Short circuit, which means that it is the chip P U5 Short circuit of VCCCPUCORE VCC. At the same time, both VCCSA and VCCCPUCORE diode value to the ground are measured to be 0 ohms, which basically determines that the CPU has burned out.

Measure VCCSA to ground diode value.

联想ThinkPad P50笔记本不开机维修 图5

Lenovo ThinkPad P50 Notebook no booting repair Figure 5.

联想ThinkPad P50笔记本不开机维修 图6

Lenovo ThinkPad P50 Notebook no booting repair Figure 6.

Go to BGA Rework Station and remove the CPU perfectly.

联想ThinkPad P50笔记本不开机维修 图7

Lenovo ThinkPad P50 Notebook no booting repair Figure 7.

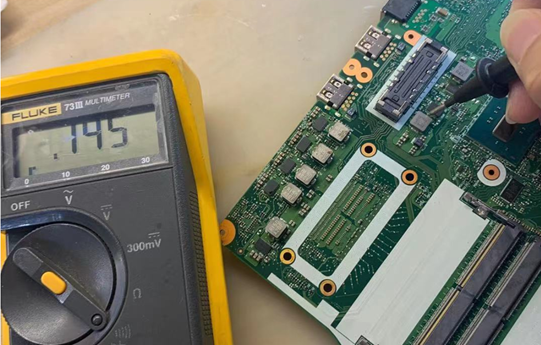

Measure the ground diode value again.

502;IMG_264

Lenovo ThinkPad P50 Notebook no booting repair Figure 8.

The VCCSA ground diode value returned to normal.

联想ThinkPad P50笔记本不开机维修 图9

Lenovo ThinkPad P50 Notebook no booting repair Figure 9.

VCCCPUCORE diode value to ground returns to normal, replace PU5 chip which is confirmed to be OK, and turn on the power to see the current.

联想ThinkPad P50笔记本不开机维修 图10

Lenovo ThinkPad P50 Notebook no booting repair Figure 10.

After the standby current reaches 30mA for a few seconds, it drops to 8mA. After the standby self-test is completed, 3.5 m normally drops to 8mA, 3m 5m switch is generated again.

联想ThinkPad P50笔记本不开机维修 图11

Lenovo ThinkPad P50 Notebook no booting repair Figure 11.

After switch, the current normally rises to 140-150 mA, and CPU VCCSA 1.0 V is generated normally. Check CPU PAD under microscope.

790;IMG_268

Lenovo ThinkPad P50 Notebook no booting repair Figure 12.

Carefully check that PAD is normal.

联想ThinkPad P50笔记本不开机维修 图13

Lenovo ThinkPad P50 Notebook no booting repair Figure 13.

CPU REBALLING handles it well.

联想ThinkPad P50笔记本不开机维修 图14

Lenovo ThinkPad P50 Notebook no booting repair Figure 14.

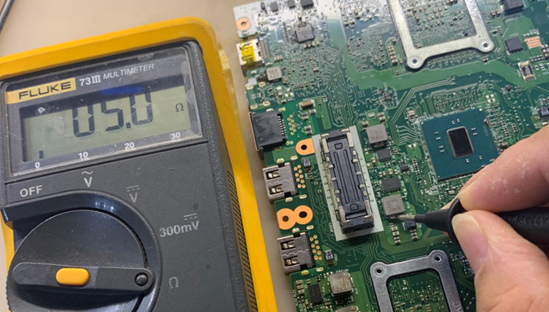

Measure again after the CPU is attached.

910;IMG_271

Lenovo ThinkPad P50 Notebook no booting repair Figure 15.

联想ThinkPad P50笔记本不开机维修 图16

Lenovo ThinkPad P50 Notebook no booting repair Figure 16.

No,Short circuit,diode value is normal. After normal power-up,Normally booting up.
