iPhone6 rear Camera can’t be opened for repair

The rear mobile phone Camera can't be opened. According to the drawing, we know that this signal has passed through a resistor to the CPU. Measure Normal value at both ends of the resistor and decisively remove the CPU cover Jump wire.

iPhone6 rear Camera can’t be opened for repair

Failure model: iPhone6
shoot ion: The rear Camera can’t be opened after maintenance elsewhere, and the front camera has a vertical bar in the dark place.
Fault analysis: According to the customer’s reaction, preliminarily judge the Camera VCC problem.

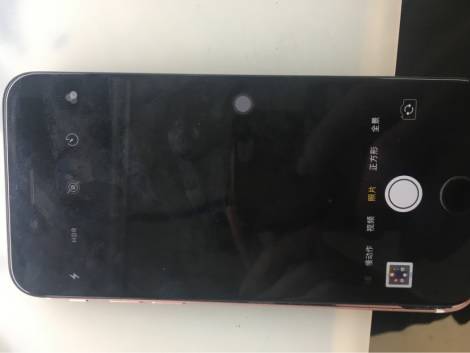

Maintenance process: boot into the system to test the fault point and confirm it.

iPhone6 rear Camera can't be opened for repair

iPhone6 rear Camera can’t be opened for repair Figure 1.

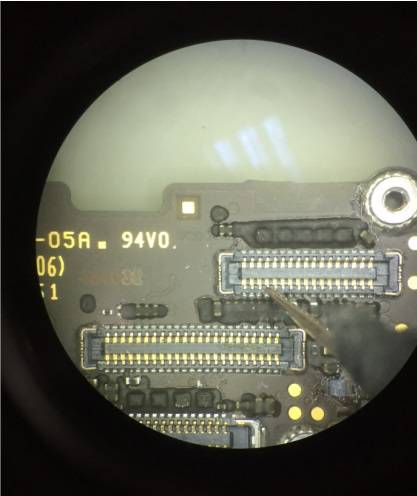

Remove the motherboard for rear mounting Camera BTB connector Measuring diode value.

iPhone6 rear Camera can't be opened for repair

iPhone6 rear Camera can’t be opened for repair figure 2.

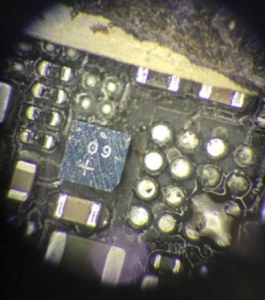

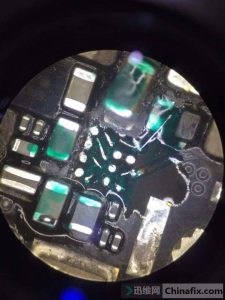

iPhone6 rear Camera can't be opened for repair

iPhone6 rear Camera can’t be opened for repair figure 3.

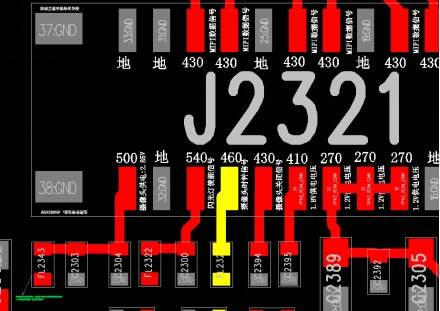

260;IMG_259

iPhone6 rear Camera can’t be opened for repair figure 4.

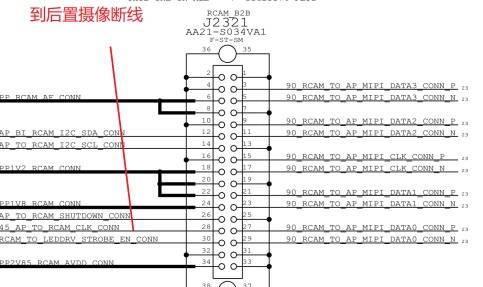

When the CLK signal from the CPU to the rear Camera is measured, take off Inductor or OverLoad for OverLoad.

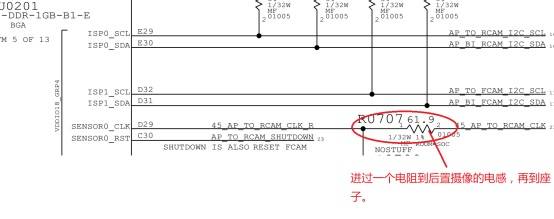

319;IMG_260

iPhone6 rear Camera can’t be opened for repair figure 5.

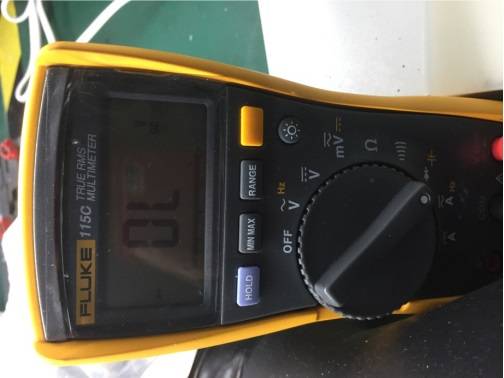

344;IMG_261

iPhone6 rear Camera can’t be opened for repair figure 6.

According to the drawing map, we know that this signal has passed through a resistor to the CPU, measure Normal value at both ends of the resistor, and save it. Remove the CPU cover Jump wire decisively.

418;IMG_262

iPhone6 rear Camera can’t be opened for repair figure 7.

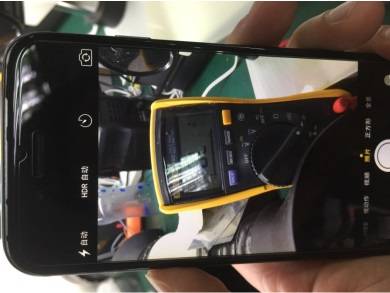

443;IMG_263

iPhone6 rear Camera can’t be opened for repair figure 8.
