iPhone XS Max won’t turn on for repair

iPhone XS Max mobile phone water damage no booting, after detection, was found to be caused by the damage of anti-static diode, which was repaired after replacement.

iPhone XS Max won’t turn on for repair

Machine model: iPhone XS Max
Symptoms:water damage no booting Maintenance

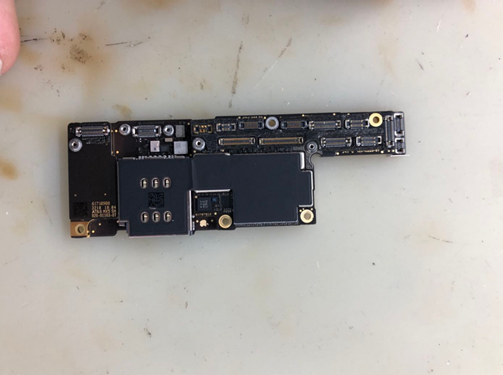

Maintenance process: Press the power button without any response, insert lighting cable into Recovery mode, there may be a system problem, or it may be brushed by the machine, but the problem is locked on the power button side, and remove the motherboard.

iPhone XS Max won't turn on for repair

iPhone XS Max won’t turn on for repair figure 1.

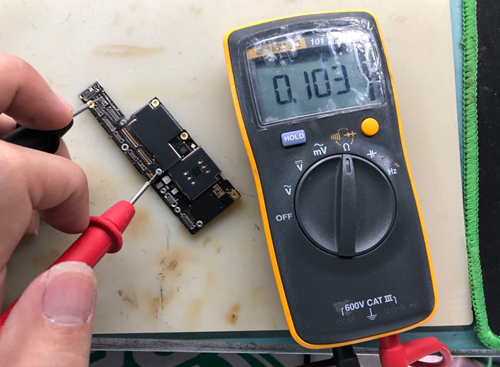

Connect DC power supply, turn on the key contact with tweezers switch, and there is no current response, indicating that the problem is on the motherboard, and turn on the key contact BTB connector diode value.

iPhone XS Max won't turn on for repair

iPhone XS Max won’t turn on for repair figure 2.

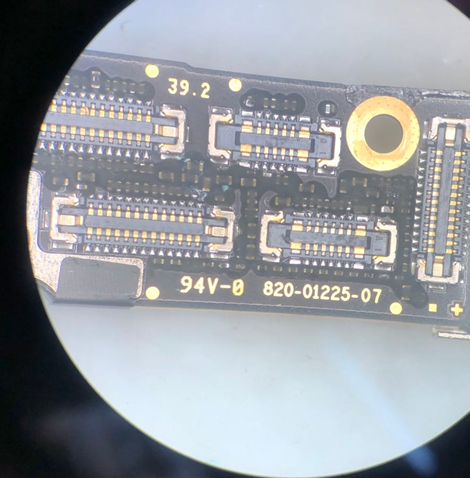

Only 103 is obviously wrong, and the normal value is several hundred.diode value is so low that VCC definitely doesn’t have it. Observe under a microscope.

iPhone XS Max won't turn on for repair

iPhone XS Max won’t turn on for repair figure 3.

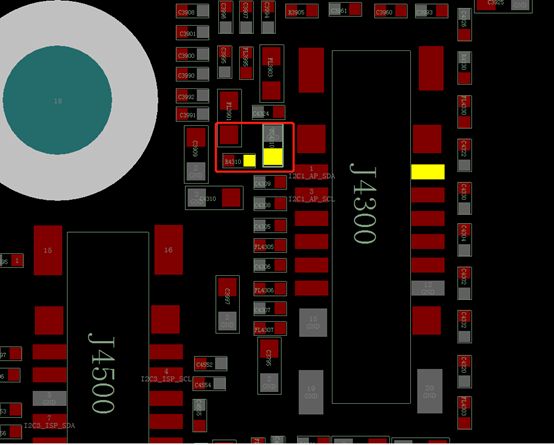

No abnormal phenomenon was found on the start button BTB connector side, so open Xinzhizao Soft drawing.

361;IMG_259

iPhone XS Max won’t turn on for repair figure 4.

See from J4300 through an anti-staticdiode; the one who lacks dialectical thinkingDZ4310 filters Capacitor to the main power chip through R4310 resistor and a C4310 filter. The first consideration is the anti-static diode, which is directly removed.

553;IMG_260

iPhone XS Max won’t turn on for repair figure 5.

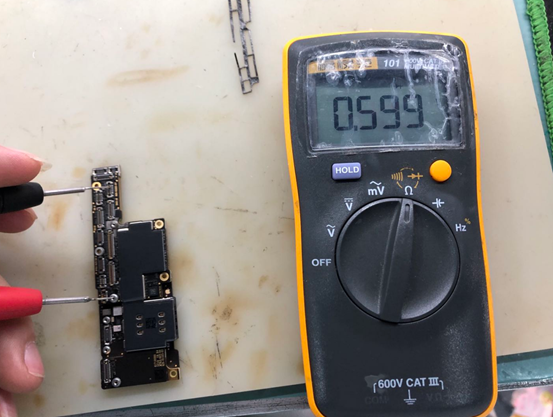

Brush with a brush again, and measure the power-on key Diode value is normal.

601;IMG_261

iPhone XS Max won’t turn on for repair figure 6.

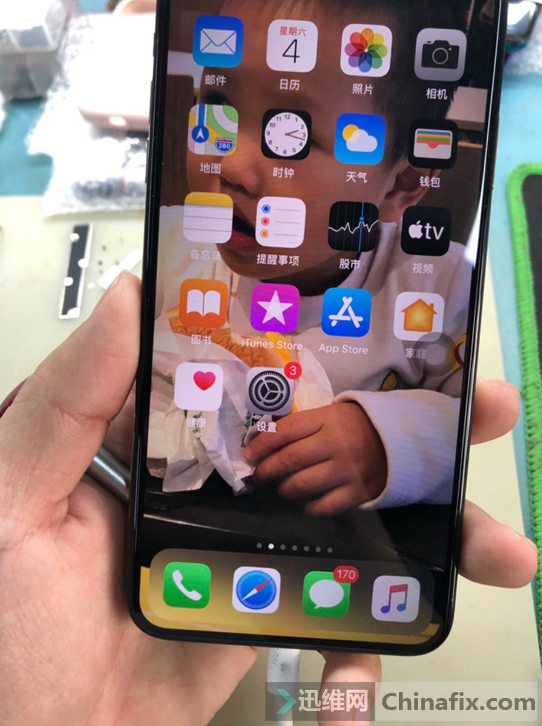

The installation test and trial function are normal, and the maintenance is over.

648;IMG_262

iPhone XS Max won’t turn on for repair figure 7.
