iPhone XR charging doesn’t respond to repair
iPhone model: iPhone XR
Fault phenomenon: mobile phone charging does not respond.
Maintenance process:
iPhone, XR,Fall hard, the function is normal, the mobile phone is plugged into the charger and turned on, but it doesn’t work after changing u6300 and u3300. It is detected that r6201 is disconnected from c6312, and Jump wire is finished.

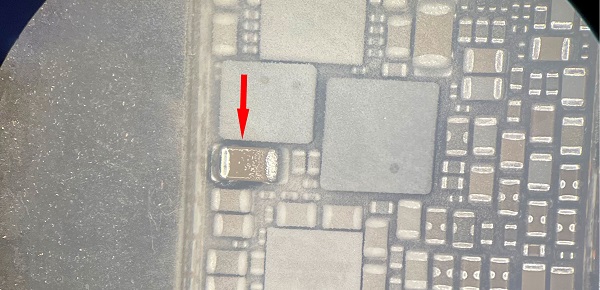

iPhone XR charging doesn’t respond to repair Figure 1.

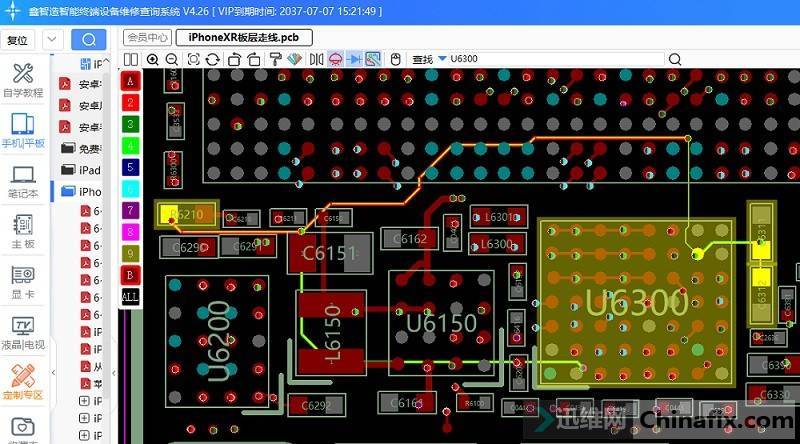

iPhone XR charging doesn’t respond to repair Figure 2.

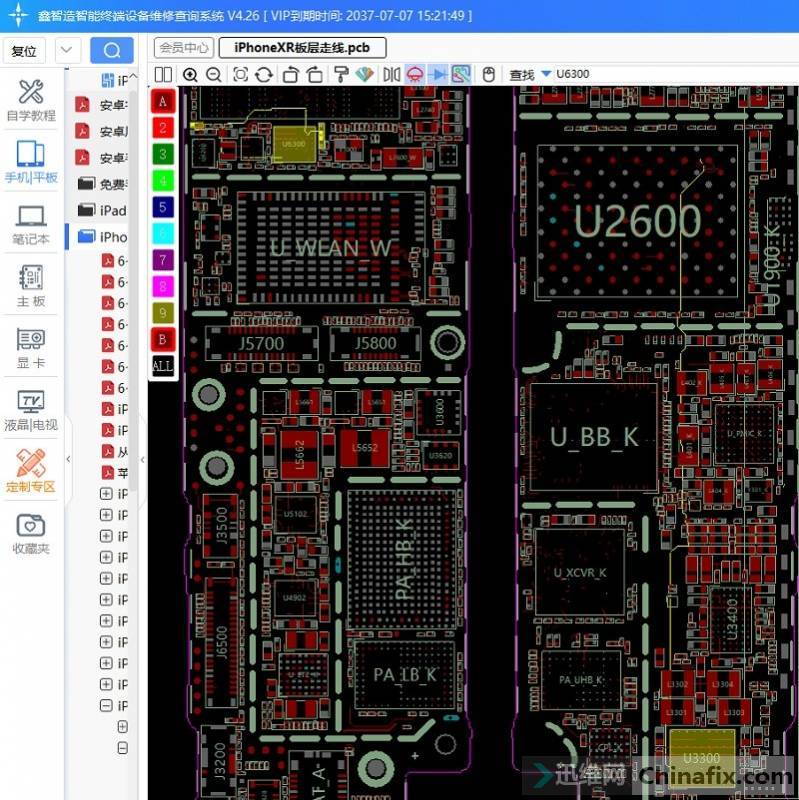

iPhone XR charging doesn’t respond to repair Figure 3.
