iPhone X water boot card white apple image repair
Machine model: iPhone X

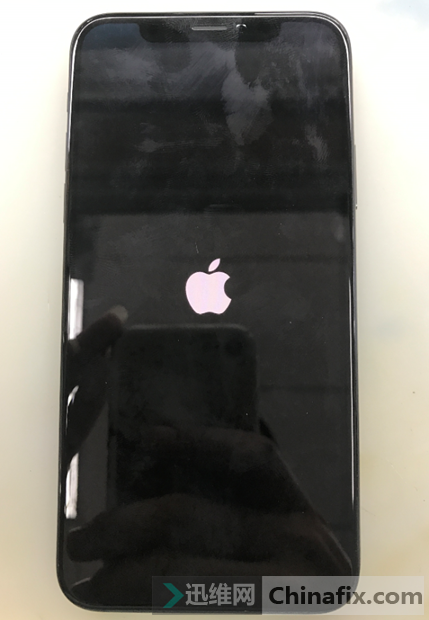

Fault symptom:water damage boot card Stuck on Apple logo screen of mobile phone
iPhone X water boot card white apple image repair Figure 1.
Fault analysis: The mobile phone is the Apple screen of the boot card that appeared after water damage, which is probably caused by components or Accessories corrode.

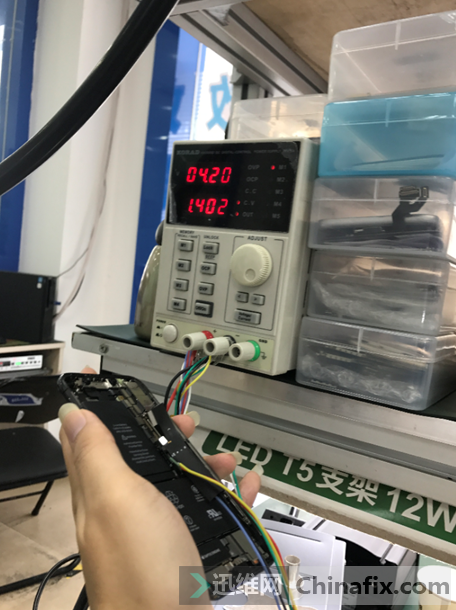

Maintenance process: After disassembling the machine, the water damage logo in the upper half didn’t turn red. After the DC power supply startup test, it was found that charging connector current change entered the system normally without deduction.
iPhone X water boot card white apple image repair Figure 2.

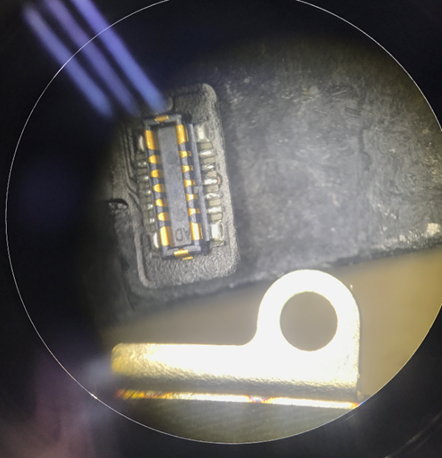

charging connector BTB connector has no trace of water damage. Is it the lower part of water damage? No fault point was found when the speaker was disassembled. When ARC(Vibrator)was disassembled,BTB connector showed traces of water damage.
iPhone X water boot card white apple image repair Figure 3.
iPhone X water boot card white apple image repair Figure 4.

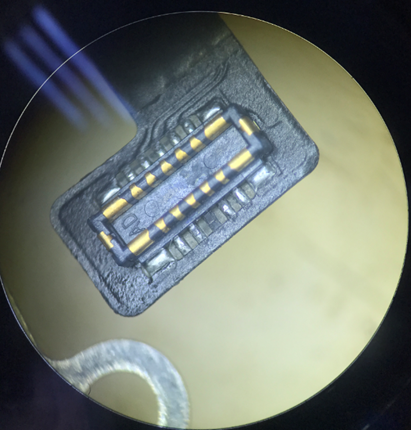

Scrape the pin bit of corrode with a blade and repair weld add solder.
iPhone X water boot card white apple image repair Figure 5.

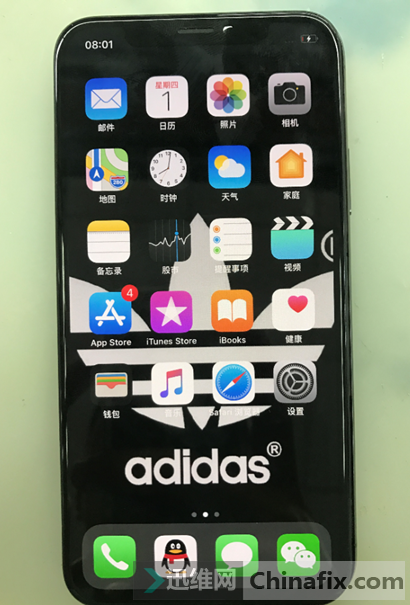

Installation test, normal boot into the system, normal function, maintenance is over.
iPhone X water boot card white apple image repair Figure 6.
Short circuit lt is Stuck on Apple logo screen of boot card caused by ARC(Vibrator)TC 14401 ARC(Vibrator)20501 ARC(Vibrator)19301.
