iPhone x rear camera cannot be opened for repair

iPhone X Rear Camera can't be opened. Repair the trouble after replacing infrared Camera camera assembly.

iPhone x rear camera cannot be opened for repair

Malfunction model: iPhone X
Fault:Rear Camera can’t be opened.

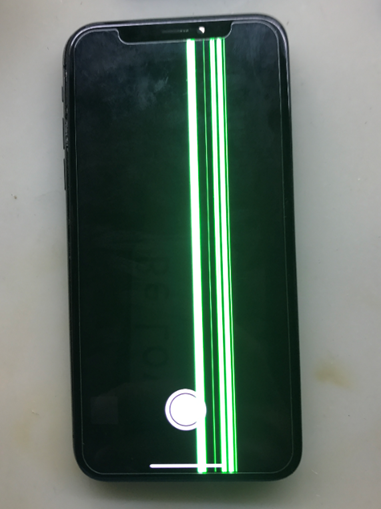

After the machine fell,Rear Camera couldn’t be opened, the flashlight didn’t turn on, and there was no recording.

iPhone x rear camera cannot be opened for repair

iPhone x rear camera cannot be opened for repair Figure 1.

Fault analysis:Rear Camera can’t be turned on, flashlight can’t be turned on, it may be caused by Camera damage, and the recording can’t be recorded, it may be caused by coder.

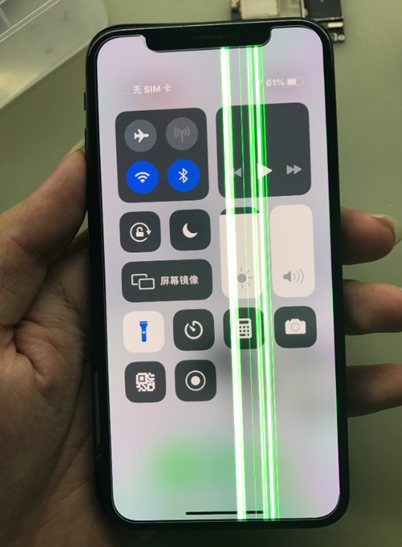

Maintenance process: receivedmobileThe test found that Rear Camera could not be turned on and the flashlight could not be turned on.

iPhone x rear camera cannot be opened for repair

iPhone x rear camera cannot be opened for repair Figure 2.

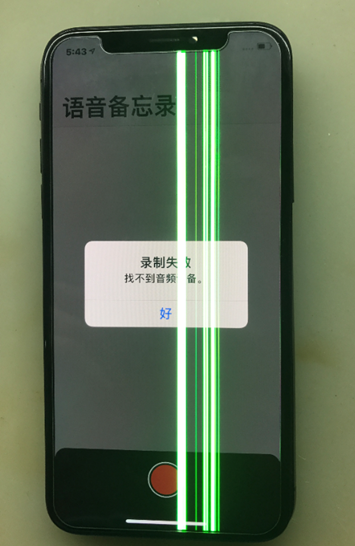

Voice memos can’t record sound either.

iPhone x rear camera cannot be opened for repair

iPhone x rear camera cannot be opened for repair Figure 3.

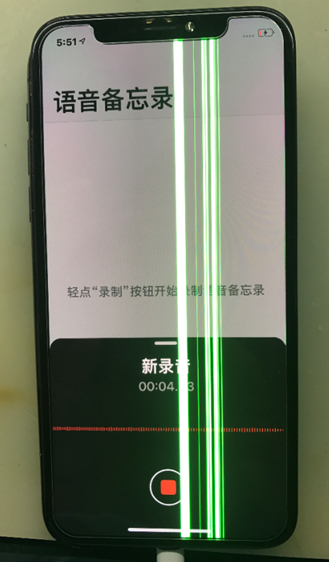

Because the mobile phone crashed, first of all, the Accessories problem was eliminated, and the rear case assembly was directly replaced. The test found that Rear Camera could be turned on, the flashlight could be turned on, and the voice memo was normal.

413;IMG_259

iPhone x rear camera cannot be opened for repair Figure 4.

436;IMG_260

iPhone x rear camera cannot be opened for repair Figure 5.

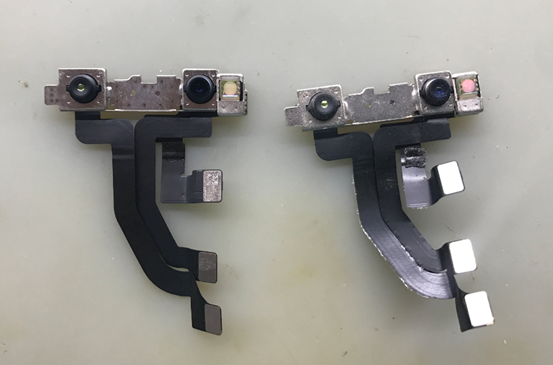

It seems that Accessories caused it. After checking one by one, it was found that Rear Camera and flashlight could not be turned on due to the damage of infrared Camera camera. Voice memo doesn’t work.infrared Camera camera is damaged, and infrared Camera ID can’t be used after replacement. However,Rear Camera can’t be opened and flashlight can’t be opened due to infrared Camera camera damage, and voice memo can’t be used. This fault will be repaired.Replace an infrared Camera camera assembly directly.

584;IMG_261

iPhone x rear camera cannot be opened for repair Figure 6.

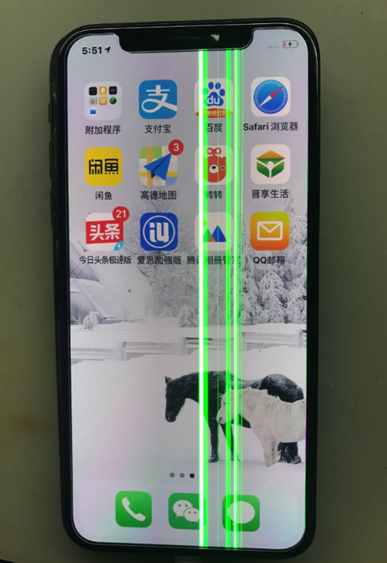

Maintenance result: After the installation test, the camera and flashlight returned to normal, the voice memo returned to normal, and Face ID could not be used. Explain to the customer that the customer understands, and the maintenance is over.

665;IMG_262

iPhone x rear camera cannot be opened for repair Figure 7.
