iPhone X is not charged for repair
Machine model: iPhone X
Malfunction: the phone does not charge.
Maintenance process: After testing, the charging current is very low. For iPhone X machines, we first consider common failing, two charging Inductor Inveracious Soldering and direct separate.
iPhone X is not charged for repair Figure 1.

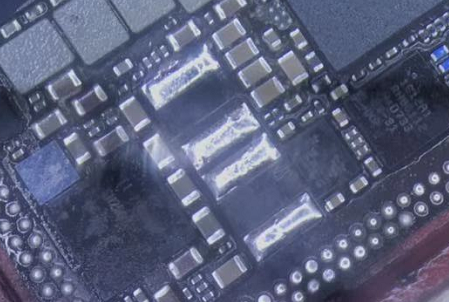

Take down two Inductor, and you can see that his welding pin has dropped.
iPhone X is not charged for repair Figure 2.
Dispose of PAD, and directly replace two rechargeable Inductor. This Inductor can’t be replaced at will, so find Inductor in the same position to replace it.
iPhone X is not charged for repair Figure 3.
There is also a charging current when processing the single board test, and the charging current is normal, so direct welding.
iPhone X is not charged for repair Figure 4.
Installed, charged normally, and repaired.
