iPhone X after heavy fall Won’t Turn On for repair

After the heavy fall of iPhone x, the mobile phone can not be turned on. After detection, it is found that it is caused by the damage of the main power supply filter capacitor. Deduct and make up the missing point, and repair the fault.

iPhone X after heavy fall Won’t Turn On for repair

Machine model: iPhone X
Fault symptom:Fall hard mobile phone Won’t Turn On

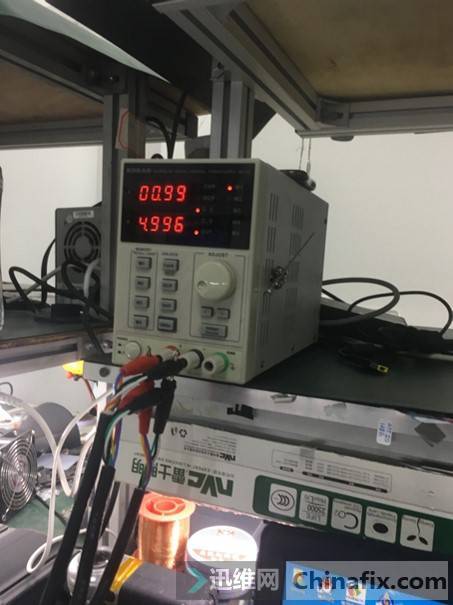

Maintenance process: disassemble the machine, power on and see the current.

iPhone X after heavy fall Won't Turn On for repair

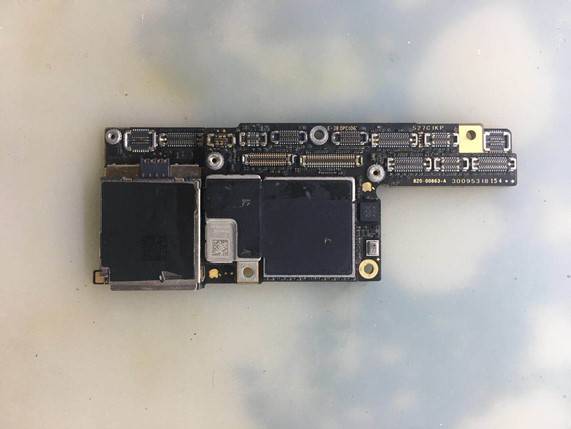

iPhone X after heavy fall Won’t Turn On for repair Figure 1.

Power on short-circuit current OverLoad,separate AP part has pad break off, and fix Short circuit first. Smoked the whole board with Colophony (Solder).

iPhone X after heavy fall Won't Turn On for repair

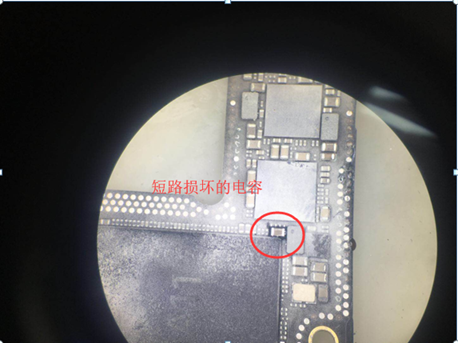

iPhone X after heavy fall Won’t Turn On for repair figure 2.

The main VCC filter Capacitor is deducted directly,Connect the power supply is not Short circuit, and several useful points where pad break off is dropped are repaired for welding.

iPhone X after heavy fall Won't Turn On for repair

iPhone X after heavy fall Won’t Turn On for repair figure 3.

267;IMG_259

iPhone X after heavy fall Won’t Turn On for repair figure 4.

Installation test, normal function, end of maintenance.

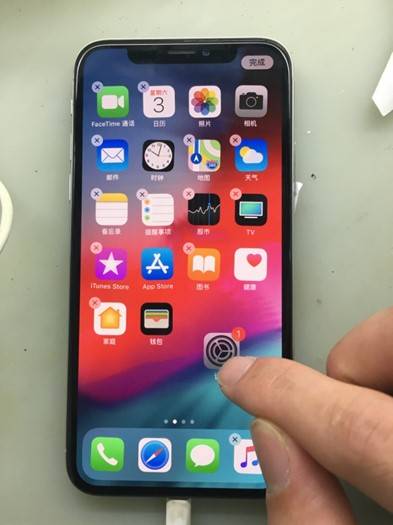

310;IMG_260

iPhone X after heavy fall Won’t Turn On for repair figure 5.
