iPhone 8 Plus screen display exception repair

The iPhone 8 Plus screen shows an abnormality. It is detected that the backlight is damaged by the backlight power supply, and the air gun is removed, the solder is short, and the fault repair is fixed.

iPhone 8 Plus screen display exception repair

Machine model: iPhone 8 Plus

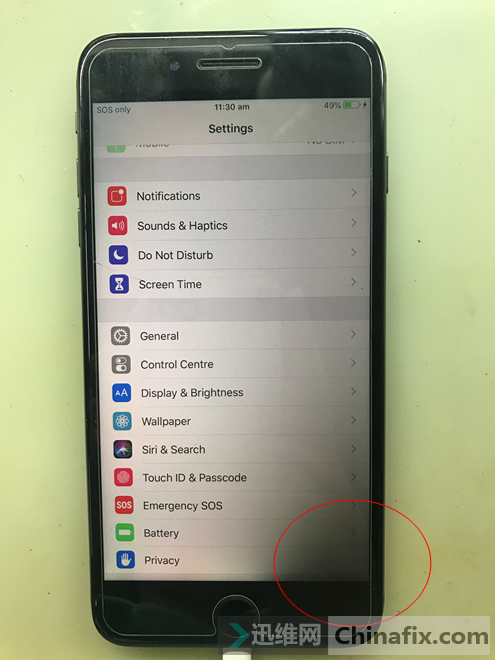

Symptoms: The screen display is abnormal.mobile phone The display screen in the lower right corner of the screen is not bright, and there is no backlight.  iPhone 8 Plus screen display exception repair

iPhone 8 Plus screen display exception repair Figure 1.

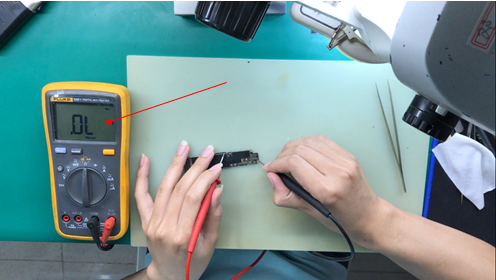

Maintenance process: this is usually caused by a problem with the backlight VCC. Dismantle the machine and take down the motherboard. The measurement shows that BTB connector J5700 found that PP_DISPLAY_BL34_ANODE_CONN is connected to the ground diode value OverLoad, which is disconnected.

iPhone 8 Plus screen display exception repair

iPhone 8 Plus screen display exception repair Figure 2.

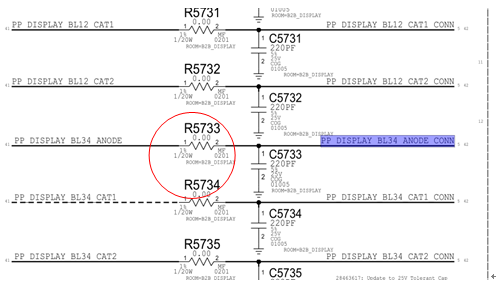

Looking up the drawing, it is found that this backlight VCC is supplied to display BTB connector through R5733 Fuse resistor.

iPhone 8 Plus screen display exception repair

iPhone 8 Plus screen display exception repair Figure 3.

During the inspection, it was found that R5733 Fuse resistor had burnt out.

449;IMG_259

iPhone 8 Plus screen display exception repair Figure 4.

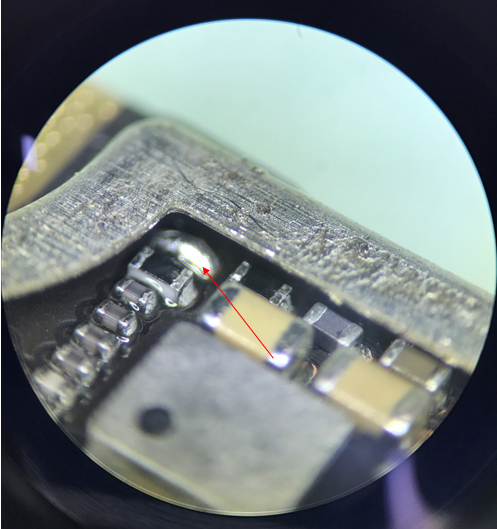

SMD REWORK STATION removed, solder ball short-circuit.

488;IMG_260

iPhone 8 Plus screen display exception repair Figure 5.

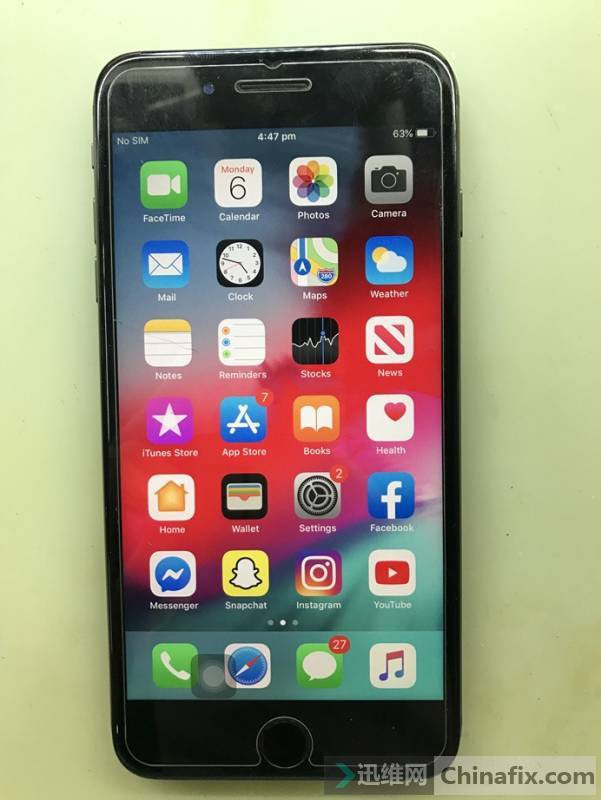

Installation test, boot display is normal, function is normal, and maintenance is over.

541;IMG_261

iPhone 8 Plus screen display exception repair Figure 6.

The fault is abnormal screen display caused by damage of resistor R5733 of PP_DISPLAY_BL34_ANODE_CONN backlight VCC Fuse.
