iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair

The iPhone 8 Plus fell, the mobile WiFi could not open, the GPS signal was detected, and the test found that this fault is caused by the breakage of the motherboard, and the problem is repaired after the flying line.

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair

Machine model: iPhone 8 Plus
Malfunction: the mobile phone WiFi can’t be turned on, GPS poor reception

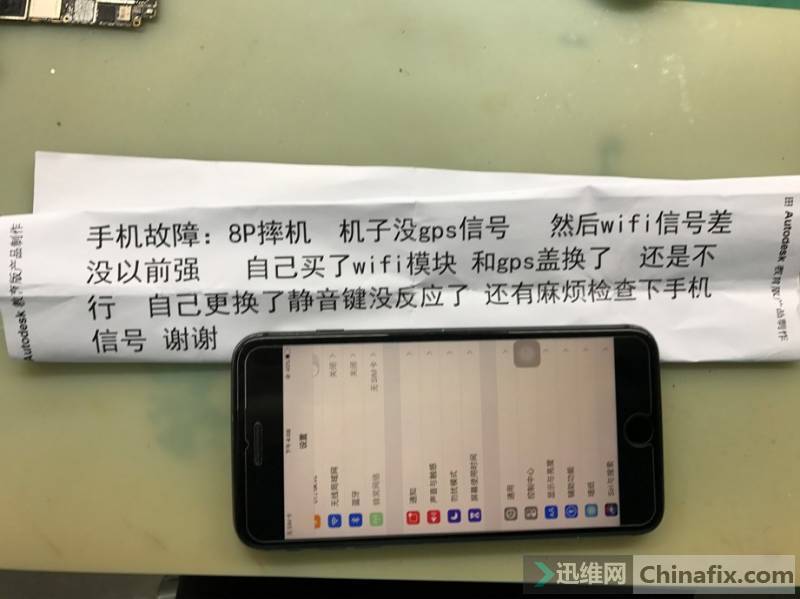

Maintenance process: mobile phone I fell, the WIFI didn’t open, the GPS signal was weak, and the Mute key didn’t respond.

iPhone 8 Plus falls behind the mobile WiFi can't open, GPS signal weak repair

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 1.

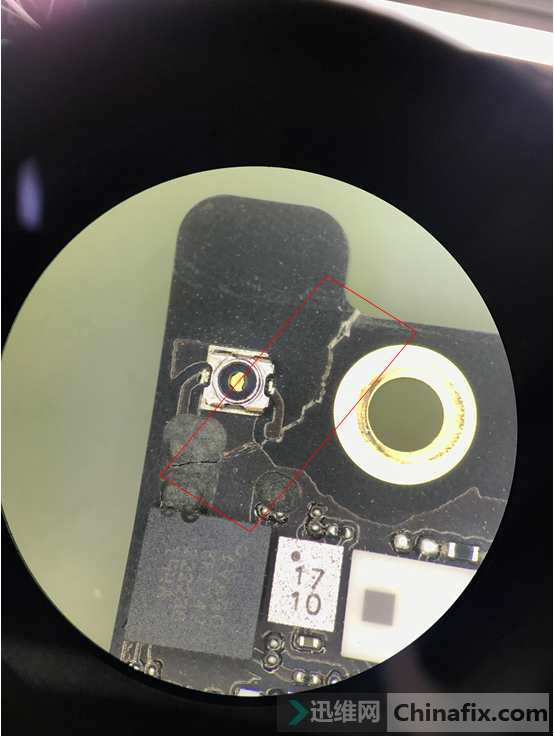

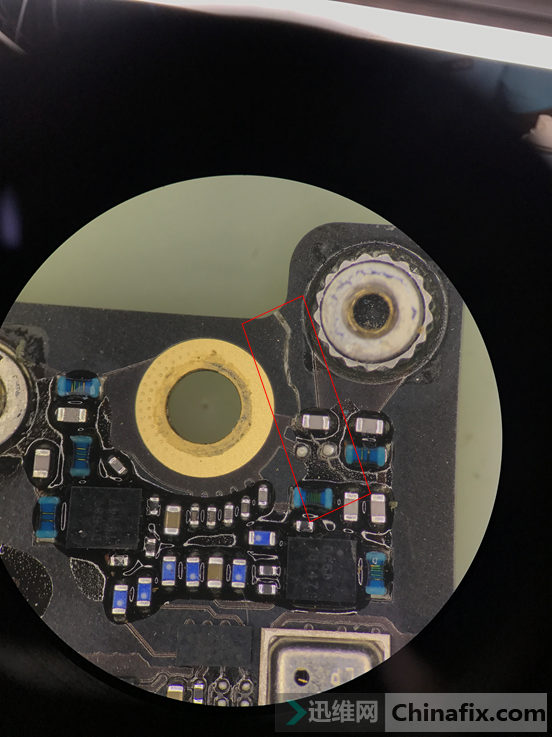

Accessories has been replaced by myself, and the fault is still the same. When the machine is disassembled, it is found that the upper left corner of the motherboard has been broken.

iPhone 8 Plus falls behind the mobile WiFi can't open, GPS signal weak repair

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 2.

iPhone 8 Plus falls behind the mobile WiFi can't open, GPS signal weak repair

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 3.

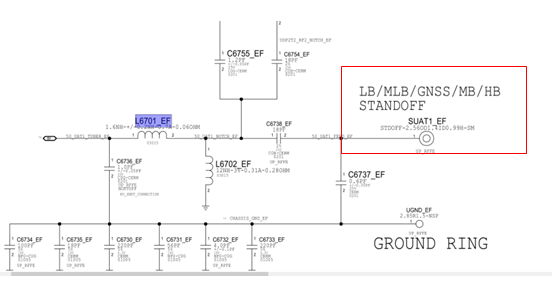

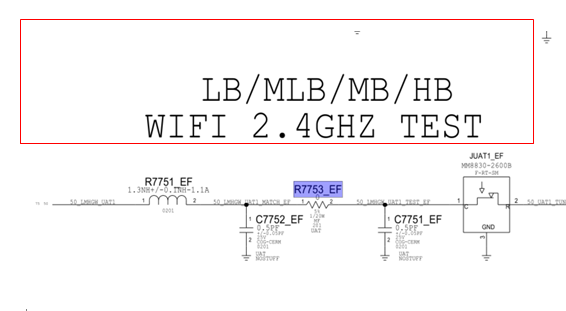

Open Xinzhizao Soft to check schematic, and find that the broken place happens to be WIFI and GPS signals.

436;IMG_259

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 4.

475;IMG_260

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair figure 5.

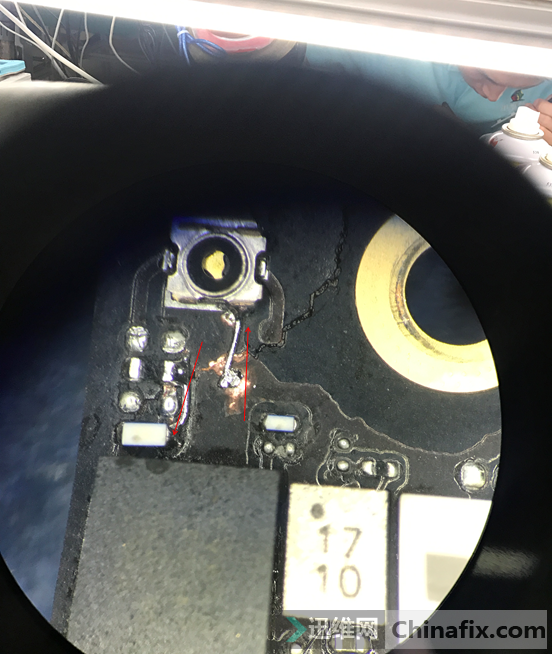

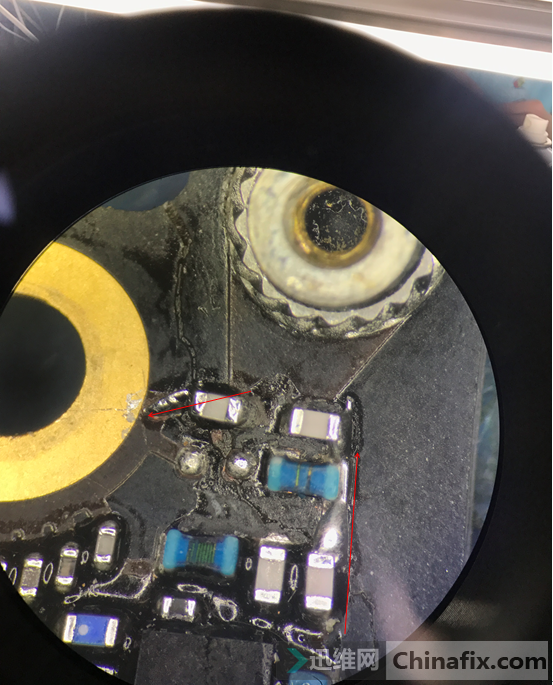

Connect the broken Jump wire.

526;IMG_261

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 6.

565;IMG_262

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair Figure 7.

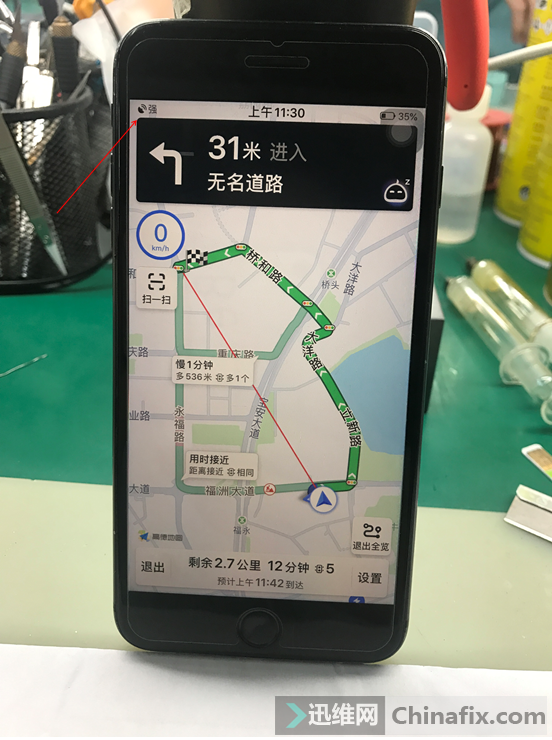

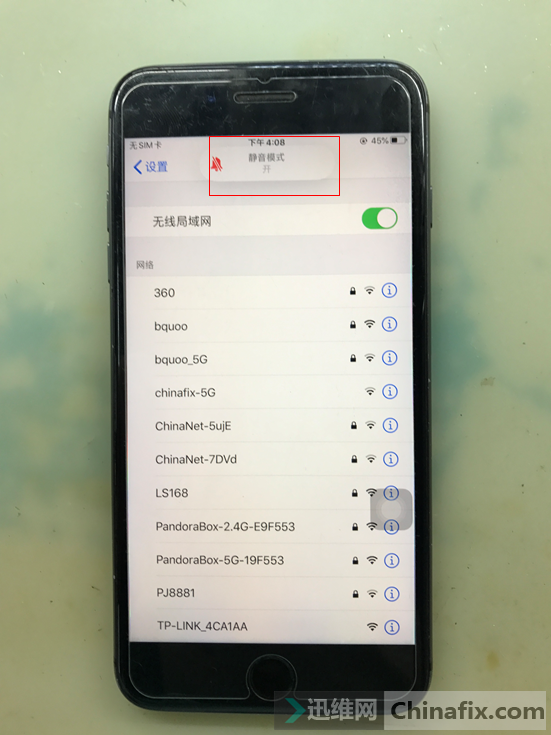

Good flying line,Mute key can be reinstalled, installed and tested, function returned to normal, and maintenance ended.

This fault is GPS and WIFI poor reception caused by the broken motherboard caused by the crash.

667;IMG_263

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repairFigure 8.

706;IMG_264

iPhone 8 Plus falls behind the mobile WiFi can’t open, GPS signal weak repair figure 9.
