iPhone 7  home button is broken and repair

The iPhone 7 mobile home button is broken, and it is detected that the U10 chip damage on the fingerprint key is caused, and the fault repair after simple processing.

iPhone 7  home button is broken and repair

Machine model: iPhone 7
Malfunction: home button of mobile phone is broken
Maintenance process: I received an iPhone 7 motherboard and fingerprint from Taiwan Province.  According to the customer’s description, it said that the home key breakpoint, that is the return was too sensitive.

The 7th generation home button is pressure-sensitive and returns according to the pressing force.  However, the home button of this machine has the effect of returning immediately when touched lightly, which is obviously abnormal.
Careful observation of fingerprint FPC under microscope shows that the chip on fingerprint FPC has broken marks.

iPhone 7  home button is broken and repair

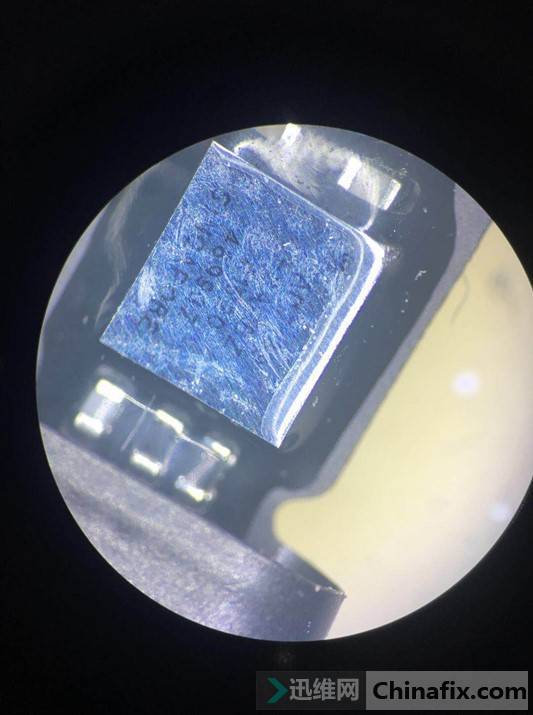

iPhone 7  home button is broken and repair Figure 1.

The fault point has been found. Replace the chip on fingerprint FPC.

iPhone 7  home button is broken and repair

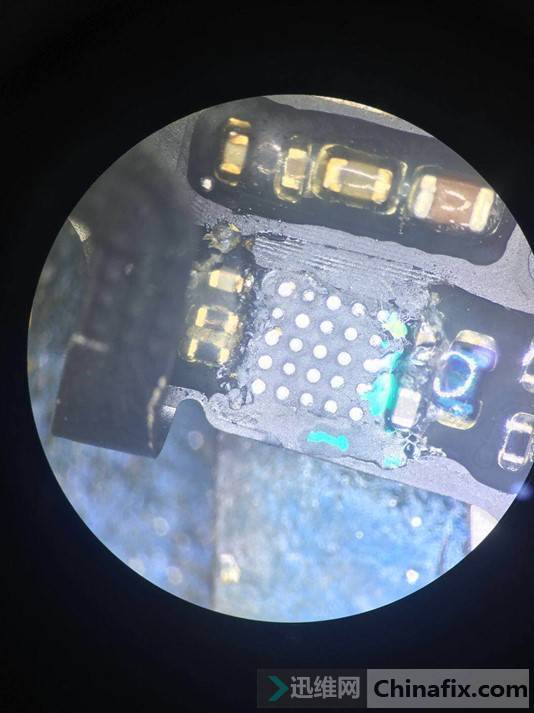

iPhone 7  home button is broken and repair Figure 2.

Remove the chip, process PAD, and make up Solder Mask where copper leaks out.

iPhone 7  home button is broken and repair

iPhone 7  home button is broken and repair Figure 3.

Back to the chip,fingerprint FPC is flexible, so fix Solder Mask around the chip.

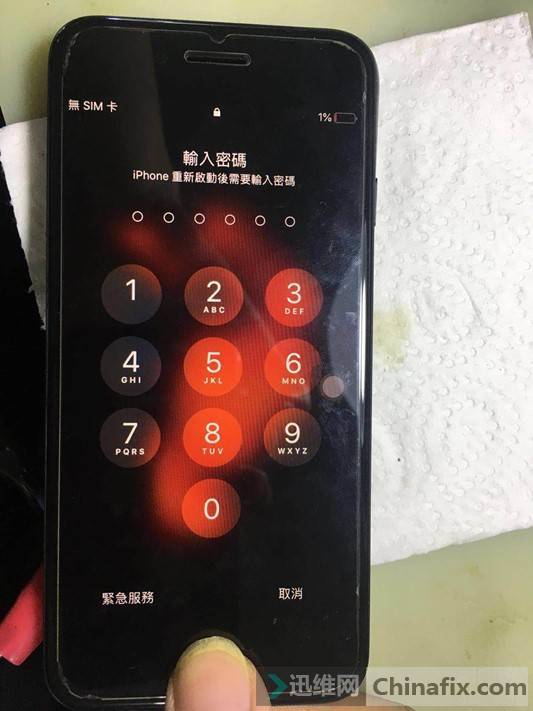

410;IMG_259

iPhone 7  home button is broken and repair Figure 4.

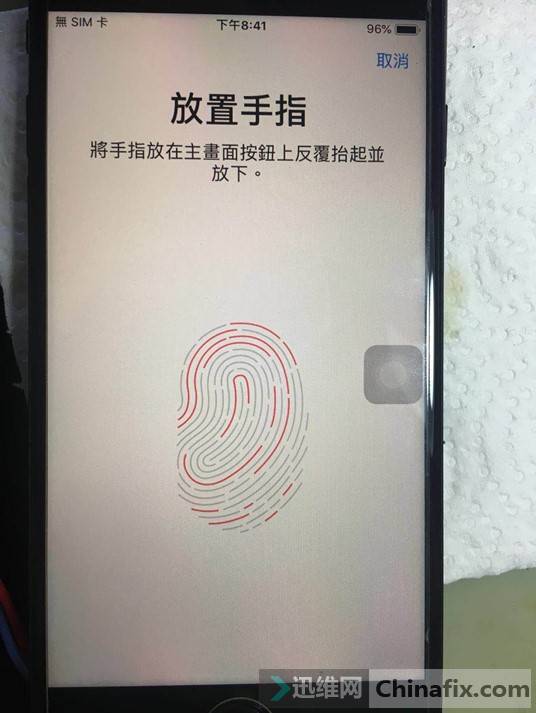

439;IMG_260

iPhone 7  home button is broken and repair Figure 5.

Installation test, return and fingerprint are all normal, and maintenance is over.
