iPhone 7 black screen without reaction repair

The iPhone 7 mobile phone black screen has no response, and the detection shows that the power supply open foot resistance value is infinite, and the problem is repaired after the flying line.

iPhone 7 black screen without reaction repair

Machine model: iPhone 7
Malfunction: mobile phone screen is black or frozen doesn’t respond

Maintenance process: Connect the power supply source meter,current change is normal, mobile phone screen is black or frozen doesn’t respond, first change the screen to eliminate Accessories problem, and then we will see if BTB connector diode value is normal on the motherboard.

iPhone 7 black screen without reaction repair

iPhone 7 black screen without reaction repair Figure 1.

iPhone 7 black screen without reaction repair

iPhone 7 black screen without reaction repair Figure 2.

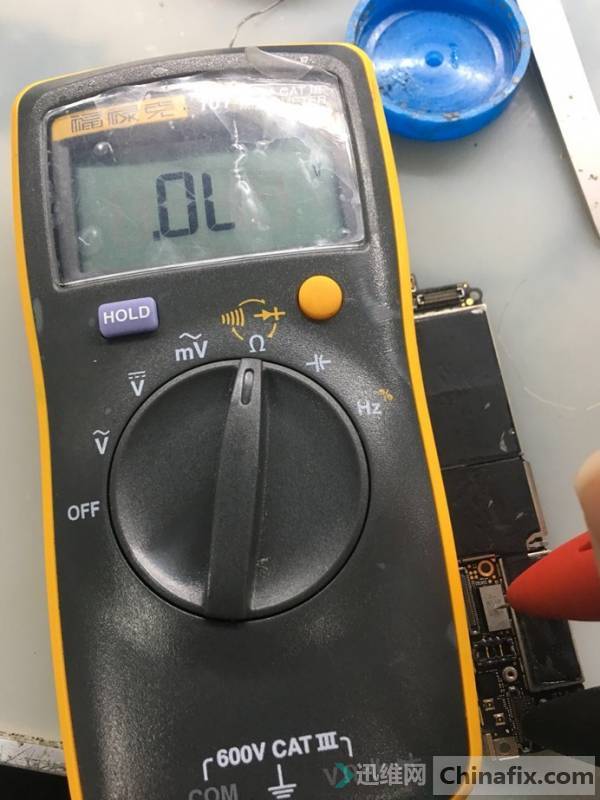

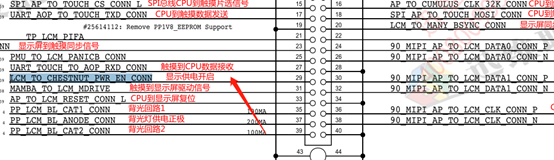

diode value is OverLoad when 29 pin LCM _ to _ chestnut _ PWR _ en _ conn shows that VCC is on.

iPhone 7 black screen without reaction repair

iPhone 7 black screen without reaction repair Figure 3.

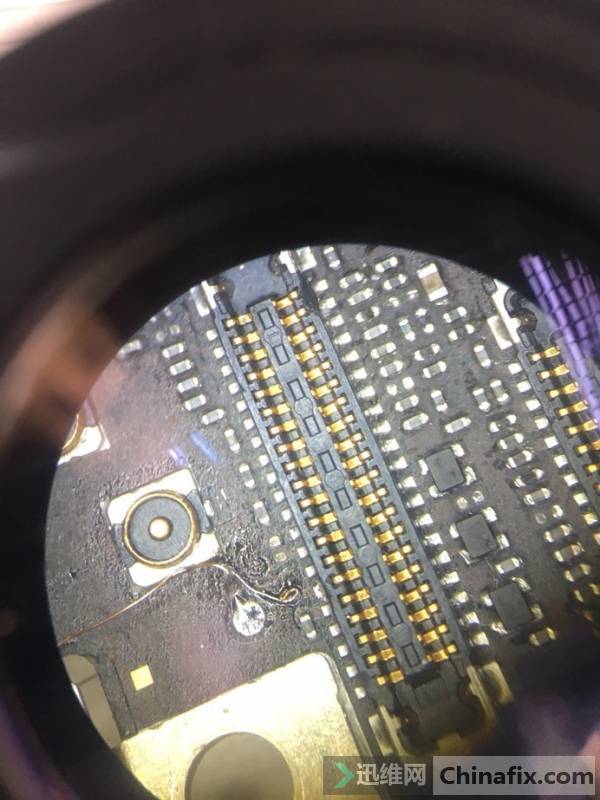

Find the problem, go directly to Jump wire.

272;IMG_259

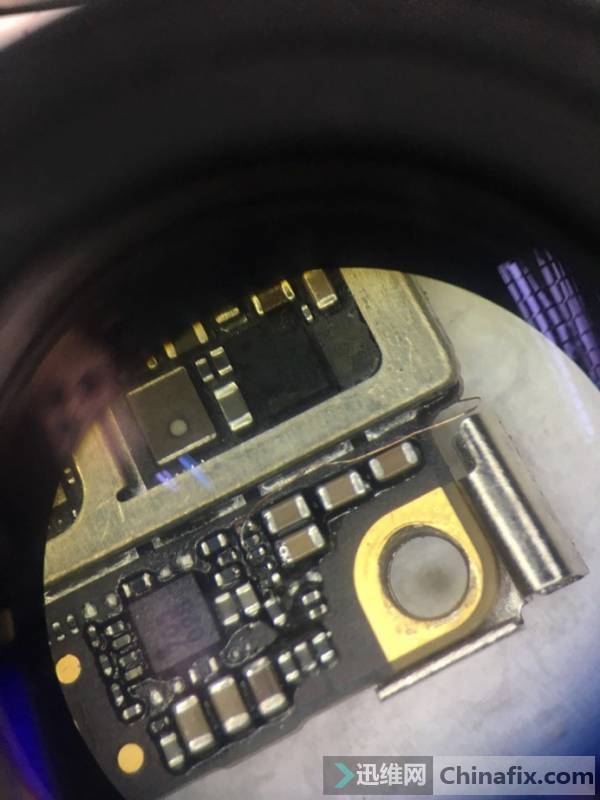

iPhone 7 black screen without reaction repair Figure 4.

295;IMG_260

iPhone 7 black screen without reaction repair Figure 5.

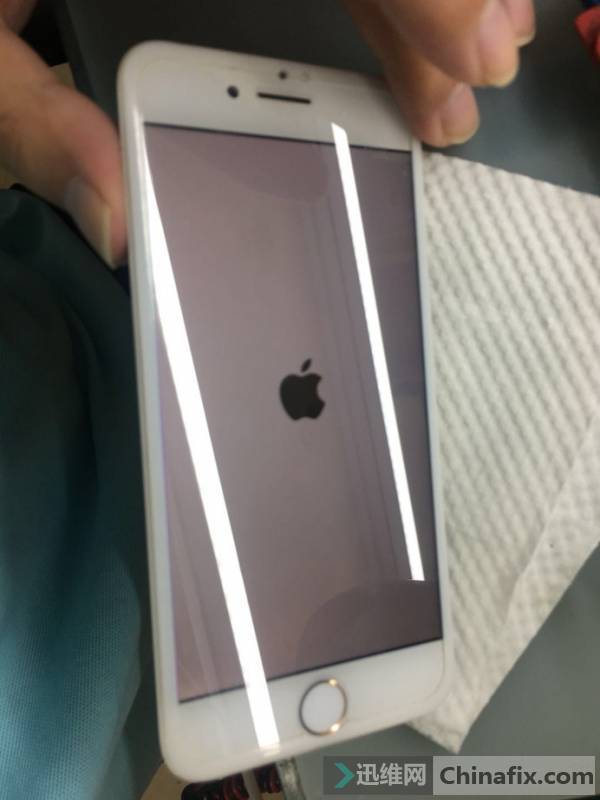

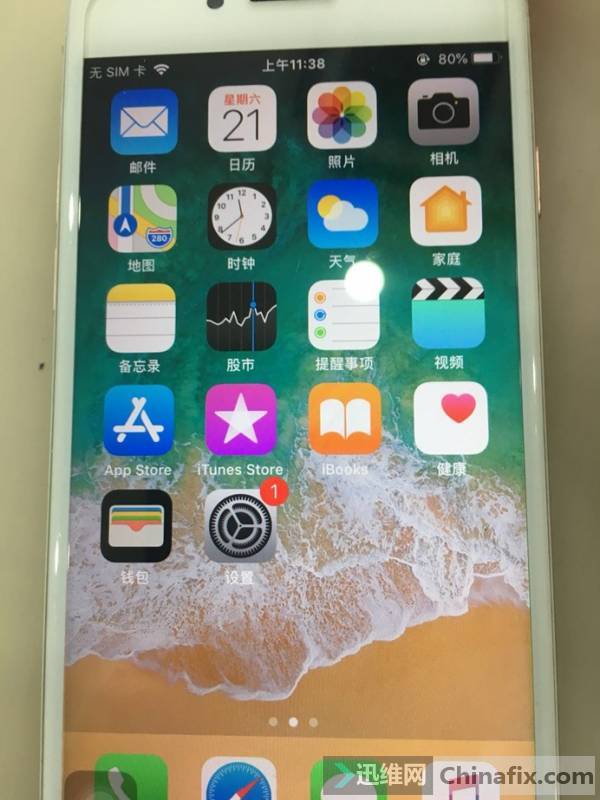

It was normal when the flying line was tested by diode value, and then the screen switch showed that it was normal, and the maintenance was over.
