iPhone 6s phone cannot be charged for repair

iPhone 6s an't be charged. After detection, it is found that the bootstrapping Capacitor next to the charging chip is lost, and the fault can be repaired after being repaired.

iPhone 6s phone cannot be charged for repair

Machine model: iPhone 6s
Malfunction: The mobile phone can’t be charged.

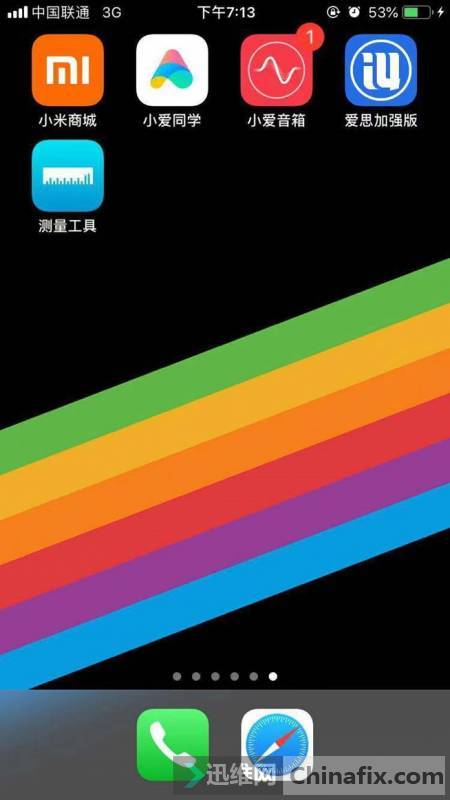

Maintenance process: even the computer can be online when watching i4 soft, and there is also a charging icon.

iPhone 6s phone cannot be charged for repair

iPhone 6s phone cannot be charged for repair Figure 1.

No charging current.

iPhone 6s phone cannot be charged for repair

iPhone 6s phone cannot be charged for repair Figure 2.

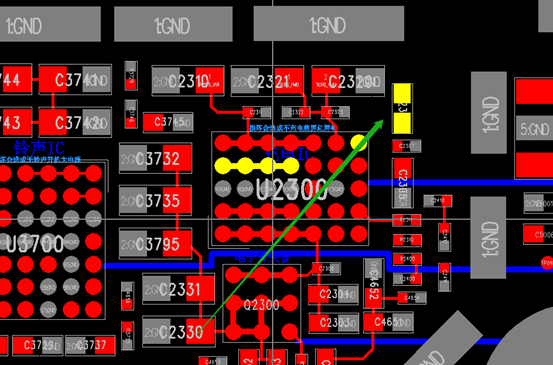

Check the charging chip and find that the bootstrap Capacitor of the charging chip is missing.

iPhone 6s phone cannot be charged for repair

iPhone 6s phone cannot be charged for repair Figure 3.

217;IMG_259

iPhone 6s phone cannot be charged for repair Figure 4.

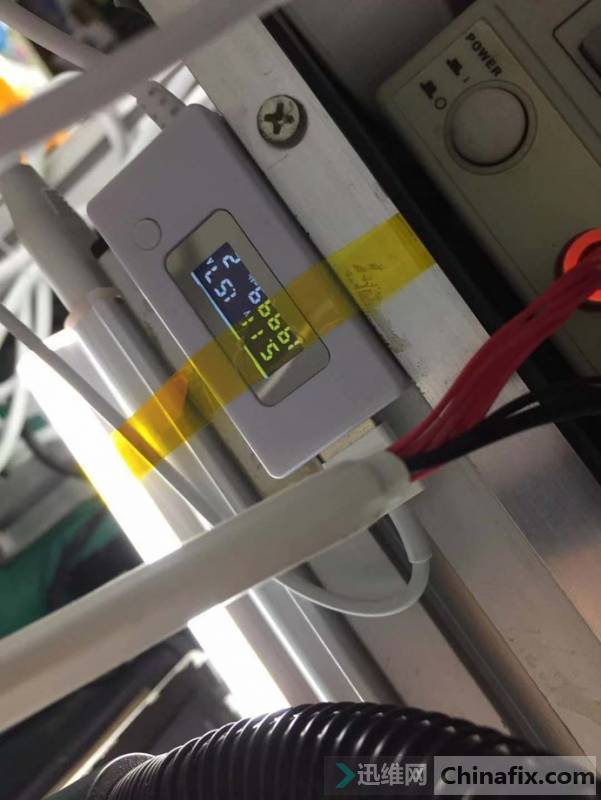

Parts motherboard removed Capacitor to make up the charging current.

257;IMG_260

iPhone 6s phone cannot be charged for repair Figure 5.

All functions are normal after startup test, and the maintenance is finished.
