iPhone 6s Jump wire solves the problem that the rear Camera does not work
Machine model: iPhone 6s
Trouble phenomenon: the rear Camera does not work
iPhone 6s Jump wire solves the post-Camera not working fault repair Figure 1.
Failure analysis: Exclude Camera, it is the motherboard problem.

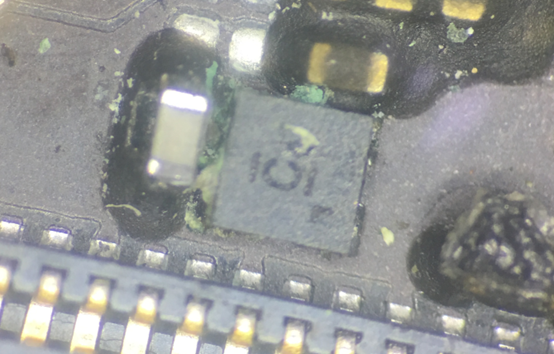

Repair process: Disassemble the machine and find that the motherboard has traces of water damage. Carefully observe the motherboard 2.85V camera MOSFET has traces of corrode.
iPhone 6s Jump wire solves the post-Camera not working fault repair Figure 2.

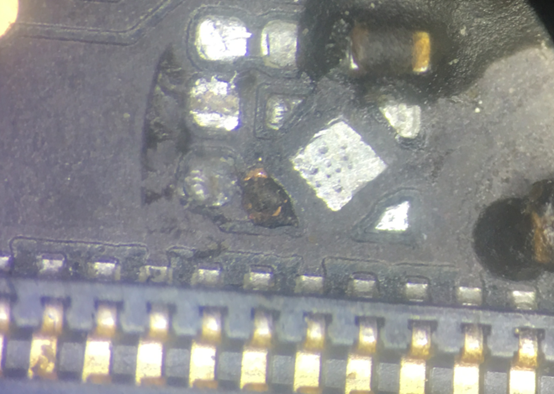

Remove convert transistor and find that the fourth pin has been corrode.
iPhone 6s Jump wire solves the post-Camera not working fault repair Figure 3.
In this case, it can be directly from the photosensitive 3V Jump wire to 2.85V VCC.
iPhone 6s Jump wire solves the post-Camera not working fault repair Figure 4.
Repair result: After flying the line, enter the system to test and repair the rear camera.
