iPhone 6s camera does not open troubleshooting
Failure model: iPhone 6s
Malfunction: The camera won’t open.
Maintenance process:

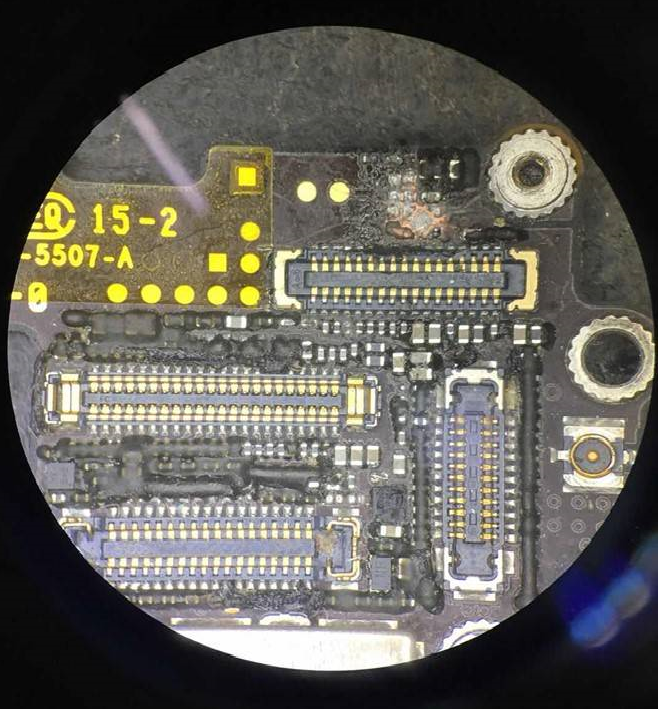

Connect an iPhone 6s mobile phoneThe customer’s description is that the rear camera can’t work after water damage. I repaired it myself but didn’t fix it. First, I tested it again. Other functions are normal, that is, the rear camera can’t work. When I removed the motherboard, I found that the 2.85V convert transistor of the rear camera on the motherboard was killed, and a pin dot was uprooted, and the next Camera BTB connector was burnt out.
iPhone 6s camera can’t be opened. Troubleshooting Figure 1
After cleaning it first,Jump wire makes up a pin.
iPhone 6s camera can’t be opened. Troubleshooting Figure 2

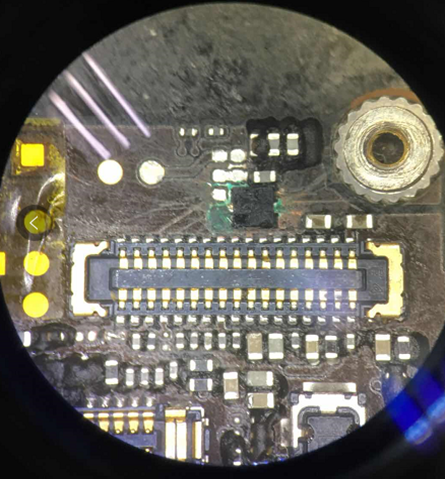

Then replace BTB connector and install convert transistor.
iPhone 6s camera can’t be opened. Troubleshooting Figure 3

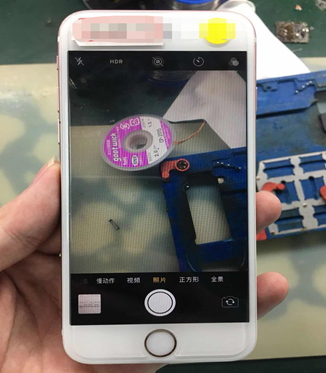

Test ok after installation, and troubleshoot! Here, the maintenance is over.
iPhone 6s camera can’t be opened. Troubleshooting Figure 4
