iPhone 6 screen failure repair
Failure model: iPhone 6
Phenomenon: The screen is out of order.
Maintenance process:

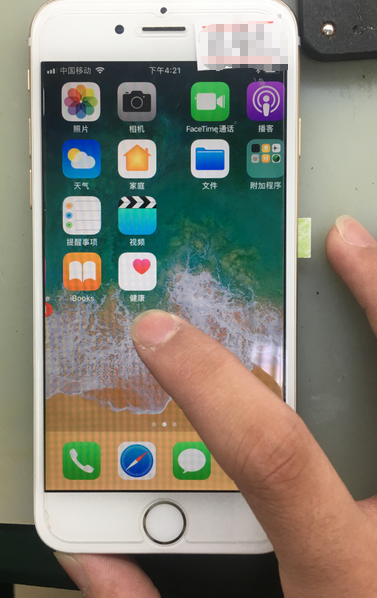

One iPhone 6, screen touch sometimes works, sometimes it doesn’t.
iPhone 6 screen failure repair figure 1.

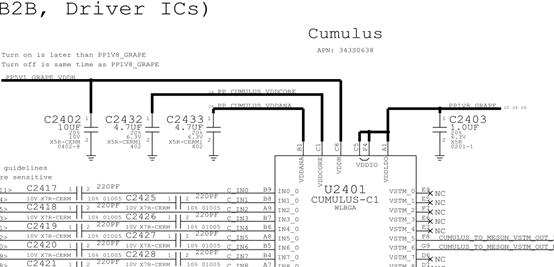

Measure the 5.1V and 1.8V VCC of 343S0694 when the touch fails.
iPhone 6 screen failure repair figure 2.

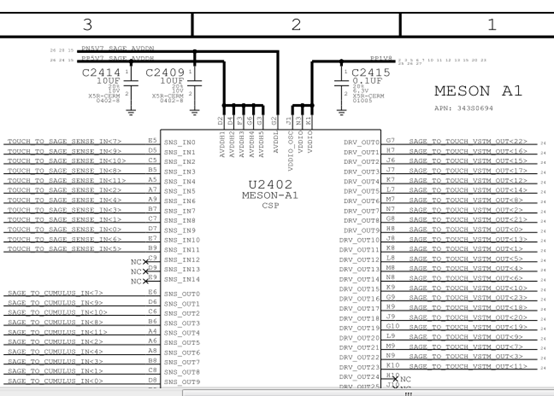

Measure ±5.7V and 1.8V VCC of BCM5976C1.
iPhone 6 screen failure repair figure 3.

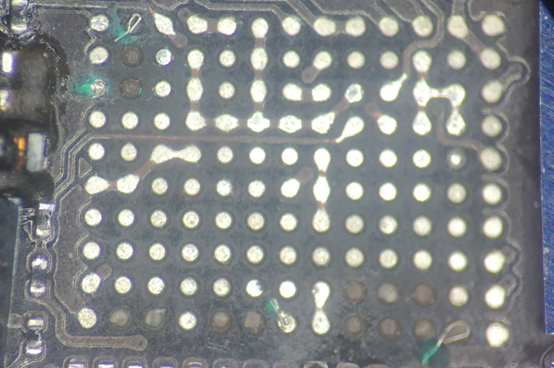

After measuring the above conditions are normal, remove BCM5976C1 IC, and when measuring the ground value of PAD,PAD has Inveracious Soldering, and disconnect pin bit of Inveracious Soldering.
iPhone 6 screen failure repair figure 4.

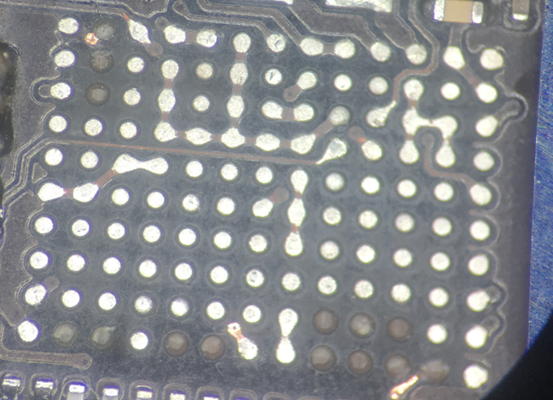

Jump wire again.
iPhone 6 screen failure repair figure 5.
After flying, the touch function is stable.
iPhone 6 screen failure repair figure 6.
