iPhone 6 Plus Update System error code 4014 troubleshooting

iPhone 6 Plus mobile phone expansion operation is improper. the mainboards PCB circuit defect,Update System did not show progress bars, but reported error code 4014.PCB layer Jump wire was dug and successfully repaired.

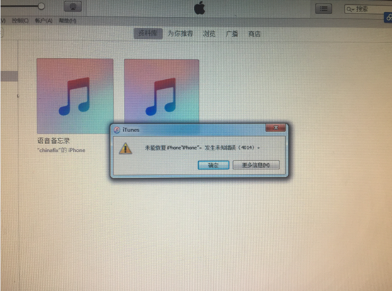

iPhone 6 Plus mobile phone Update System error code 4014 troubleshooting

Machine model: iPhone 6 Plus.
Malfunction: mobile phone Update System error code 4014.
Peer expansion, mobile phone Update System error code 4014.

iPhone 6 Plus  Update System error code 4014 troubleshooting

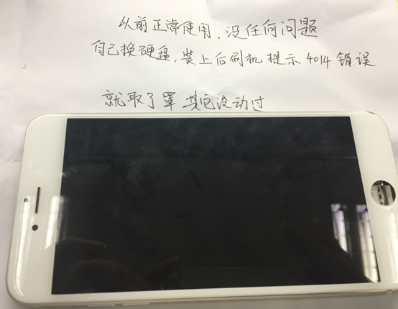

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 1.

iPhone 6 Plus  Update System error code 4014 troubleshooting

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 2.

Maintenance process:
Update System reported an error of 4014 before the progress bar came out, and SN was recognized when Recovery mode was expanded, which was usually caused by the problem of USB chip leading to CPU. when disassembling the machine, it was found that it was UMT motherboard, and the USB chip U1700 was removed to measure diode value leading from PAD to CPU, and AP _ to _ tristar _ ACC _ was found.

iPhone 6 Plus  Update System error code 4014 troubleshooting

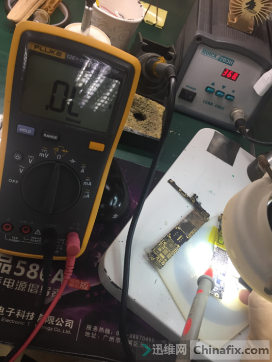

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 3.

334;https://ftp.chinafix.com/forum/202010/23/100800vlvju098u8ss0r8t.png.thumb.jpg

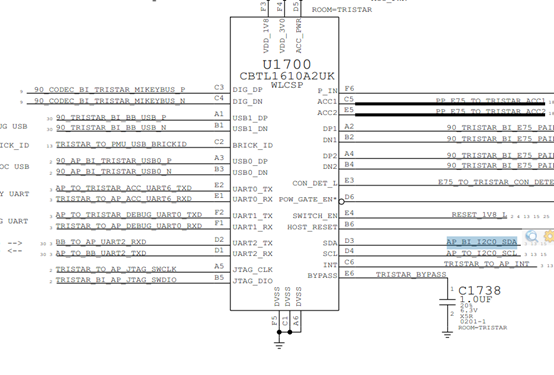

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 4.

336;https://ftp.chinafix.com/forum/202010/23/100801ni2wymqm24simmyy.png.thumb.jpg

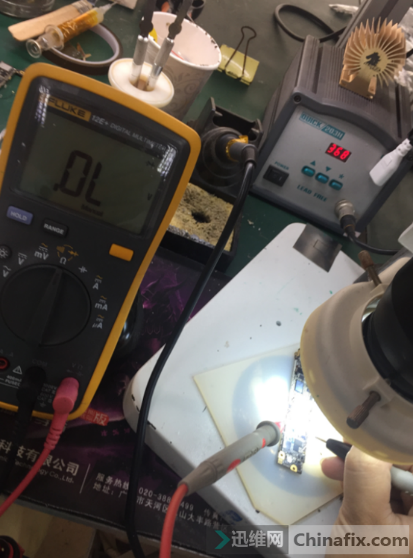

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 5.

338;https://ftp.chinafix.com/forum/202010/23/100801yaxlavka4a4ynl4x.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 6.

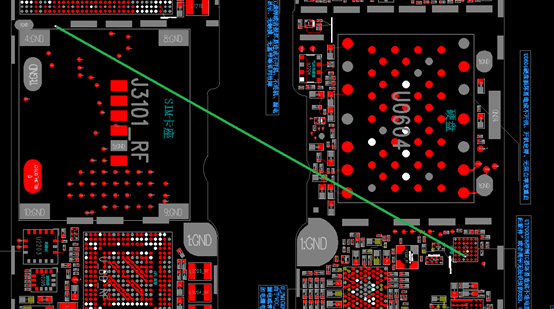

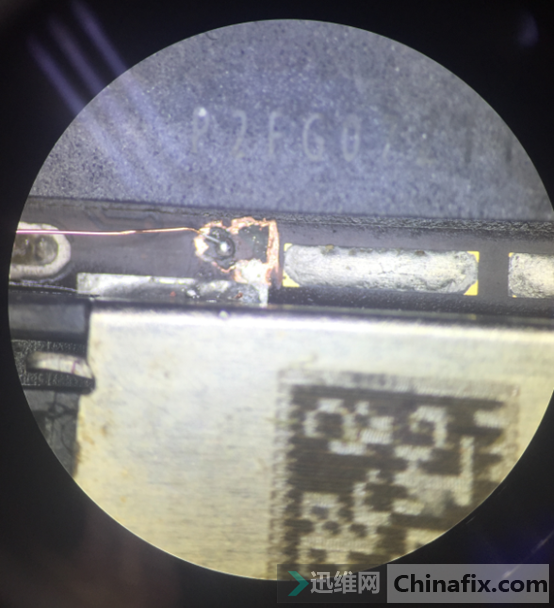

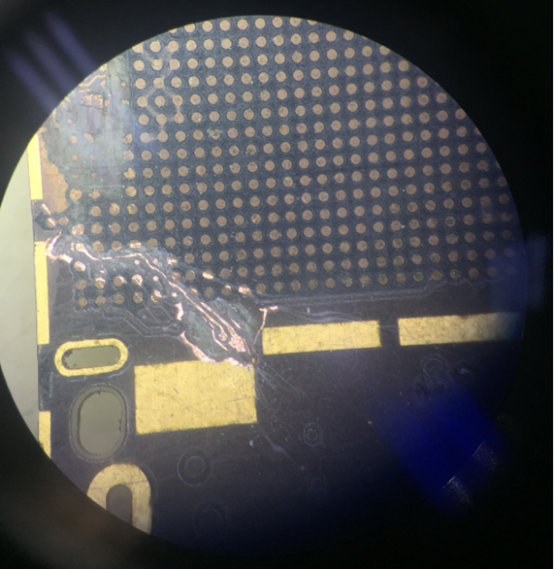

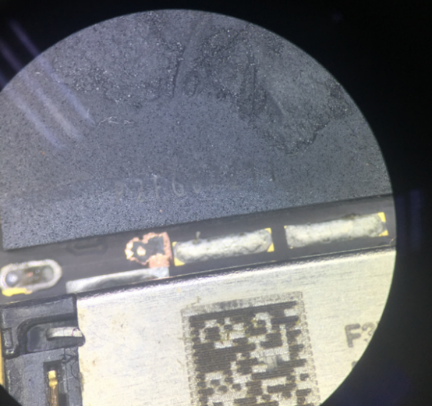

PCB circuit defect, find the external connection point or dig the light board to find the via hole point of the line. AP_TO_TRISTAR_ACC_UART6_TXD is directly connected to the outside without passing through other components. when digging AP_TO_TRISTAR_ACC_UART6_TXD, it was found that there was a via hole point beside the card slot, and Jump wire was dug.

468;https://ftp.chinafix.com/forum/202010/23/100803lz39qokqjklka6jj.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 7.

470;https://ftp.chinafix.com/forum/202010/23/100804u0qq5cwp0kp0krqw.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 8.

472;https://ftp.chinafix.com/forum/202010/23/100804by76y09gat03tmmy.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 9.

475;https://ftp.chinafix.com/forum/202010/23/100805aprr5zlurrfgmfgu.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 10.

477;https://ftp.chinafix.com/forum/202010/23/100806gwg1yhw7yyj8ujwg.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 11.

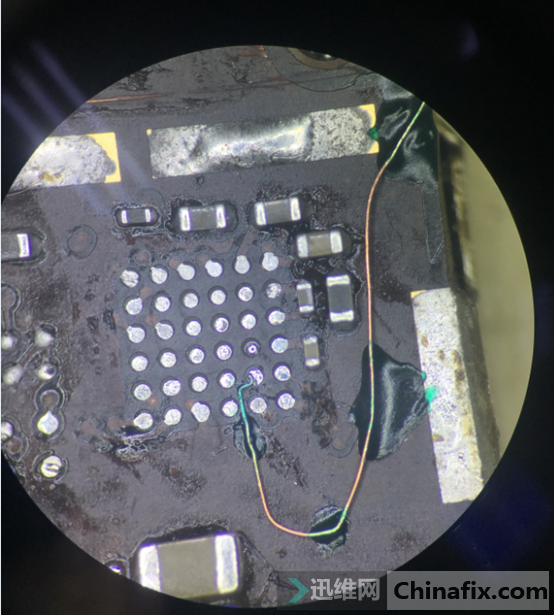

There is a test point outside AP_BI_I2C0_SDA, which is directly from the test point Jump wire.

515;https://ftp.chinafix.com/forum/202010/23/100807a5jh5p5hl1hr1ahn.png.thumb.jpg

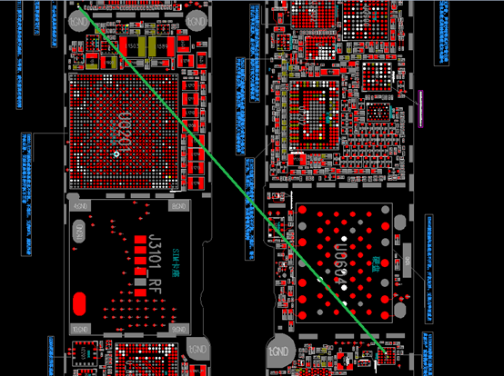

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 12.

517;https://ftp.chinafix.com/forum/202010/23/100808itri3r1s0rr0kaek.png.thumb.jpg

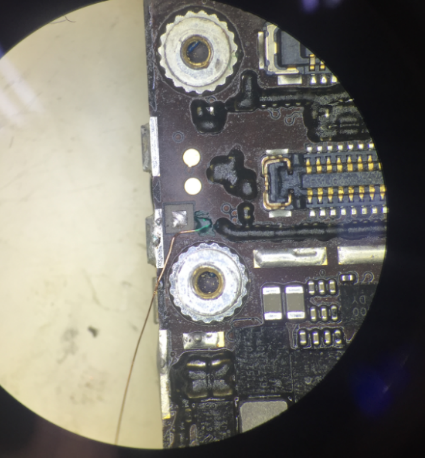

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 13.

519;https://ftp.chinafix.com/forum/202010/23/100809pf1t4tg3n0b4a111.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 14.

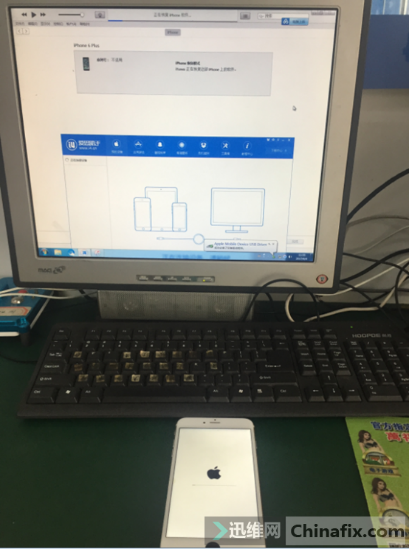

Replace the USB chip,Update System passed normally, and the maintenance is over.

546;https://ftp.chinafix.com/forum/202010/23/100810m981te0er0kldkz9.png.thumb.jpg

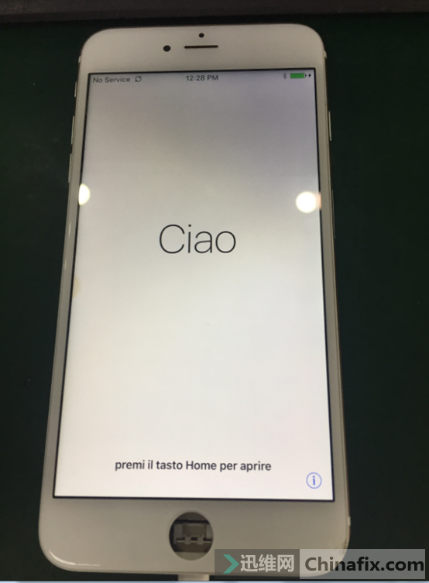

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 15.

548;https://ftp.chinafix.com/forum/202010/23/100811oudr1ky111zf5df1.png.thumb.jpg

iPhone 6 Plus mobile phone flash error code 4014 fault repair Figure 16.
