iPhone 6 Plus can’t open WiFi for repair after falling down

Machine model: iPhone 6 Plus
Fault: WiFi cannot be turned on after falling

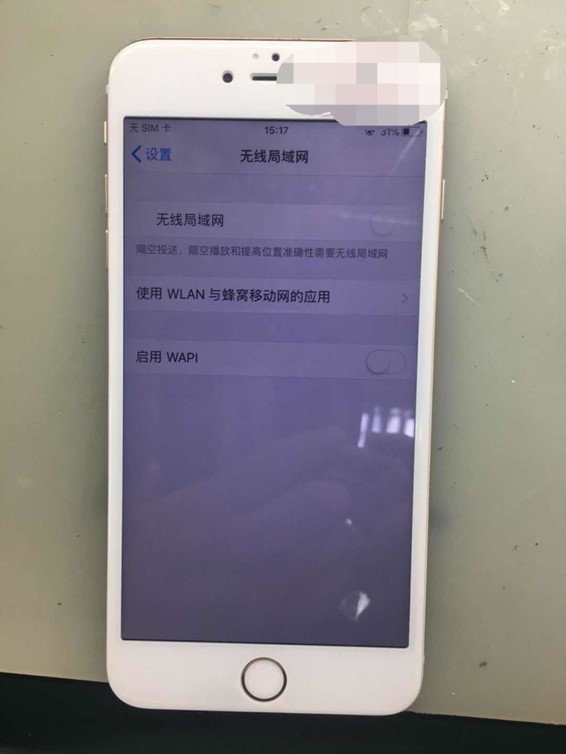

Maintenance process: power on detection, found that the setting – General – about the machine can not recognize the WLAN address, click WiFi option is also gray.

iPhone 6 Plus can't open WiFi for repair after falling down

iPhone 6 Plus can’t open WiFi for repair after falling down Figure 1.

When the iphone Connect the power supply is reset, there is no test to reset the WiFi common failing.

iPhone 6 Plus can't open WiFi for repair after falling down

iPhone 6 Plus can’t open WiFi for repair after falling down Figure 2.

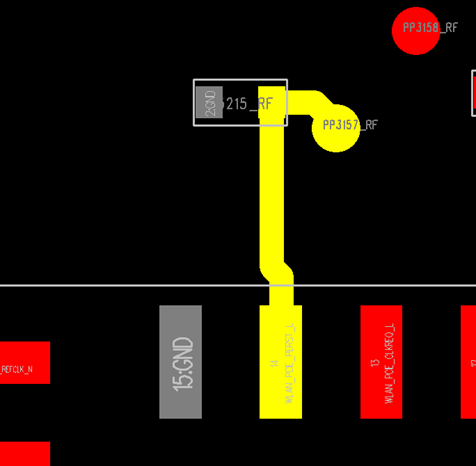

Reset broken wire, can remove WiFi chip from r5208_The RF end Jump wire can be repaired to the test point.

iPhone 6 Plus can't open WiFi for repair after falling down

iPhone 6 Plus can’t open WiFi for repair after falling down Figure 3.

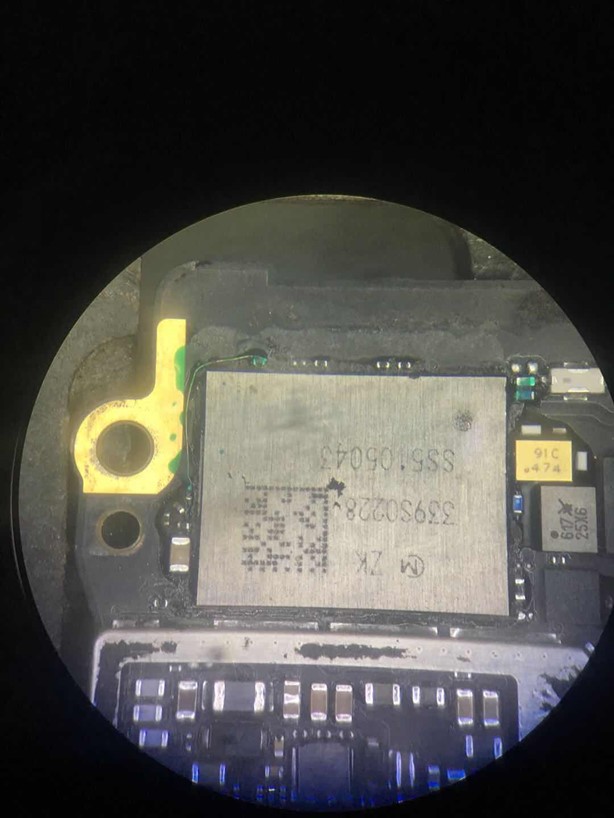

336;IMG_260

iPhone 6 Plus can’t open WiFi for repair after falling down Figure 4.

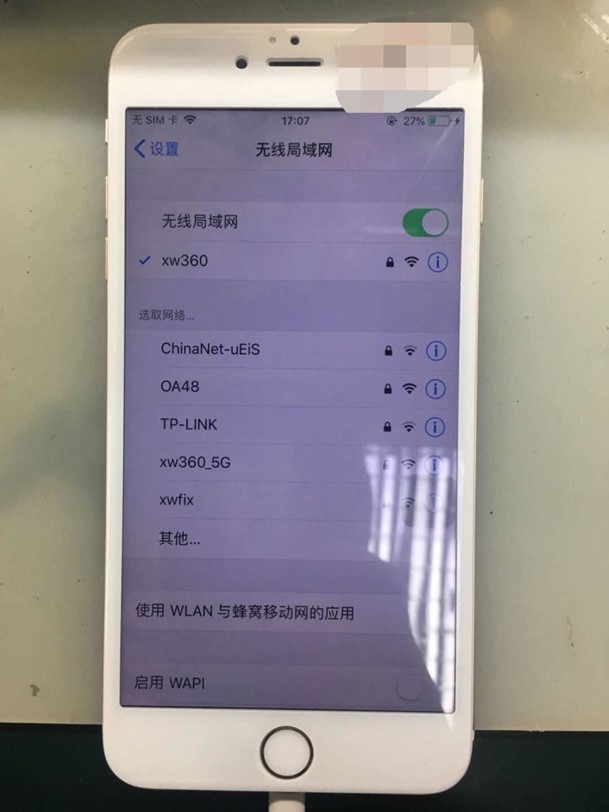

Installed test WiFi can be turned on, can connect normally and search for multiple signals, fault repair.

402;IMG_261

iPhone 6 Plus can’t open WiFi for repair after falling down Figure 5.
