iPhone 6 Plus Bluetooth can’t connect,Rear Camera doesn’t work for maintenance

iPhone 6 Plus Bluetooth can't connect,Rear Camera doesn't work, replace WiFi module and Rear Camera, and the machine will return to normal.

iPhone 6 Plus Bluetooth can’t connect,Rear Camera doesn’t work for maintenance

Machine model: iPhone 6 Plus

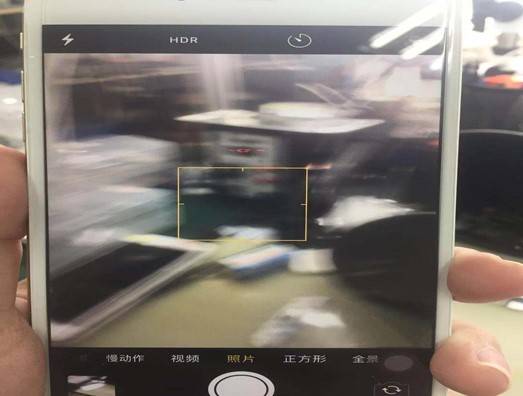

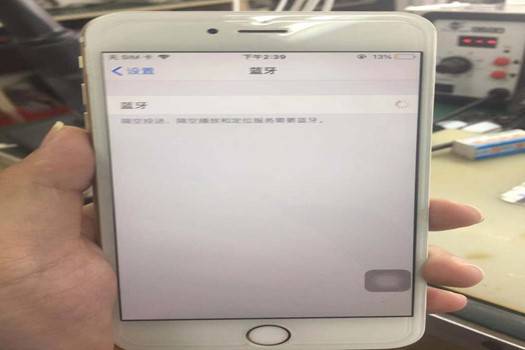

Malfunction: Bluetooth can be turned on, but other devices are not displayed. Turning on Rear Camera blurs Keeps Shaking.

iPhone 6 Plus Bluetooth can't connect,Rear Camera doesn't work for maintenance

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work Maintenance Figure 1.

iPhone 6 Plus Bluetooth can't connect,Rear Camera doesn't work for maintenance

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work. Maintenance Figure 2.

Fault analysis: Bluetooth can’t connect. Most of the problems are related to WiFi module, because Bluetooth function is integrated in WiFi module. First, replace WiFi module and Rear Camera to test whether it is damaged.

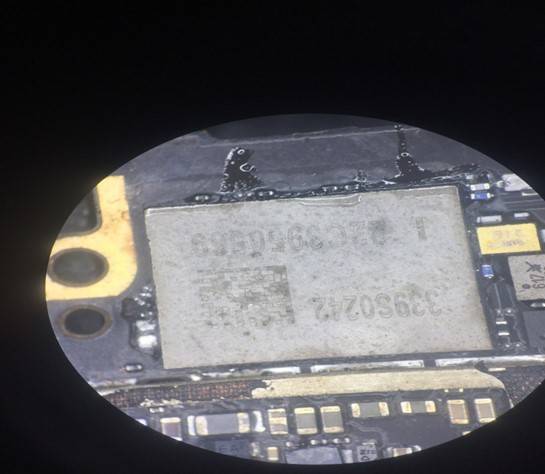

Maintenance process: remove the edge adhesive and remove the WiFi module, replace the WiFi module again, and replace Rear Camera for testing.

iPhone 6 Plus Bluetooth can't connect,Rear Camera doesn't work for maintenance

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work Maintenance Figure 3.

353;IMG_259

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work Maintenance Figure 4.

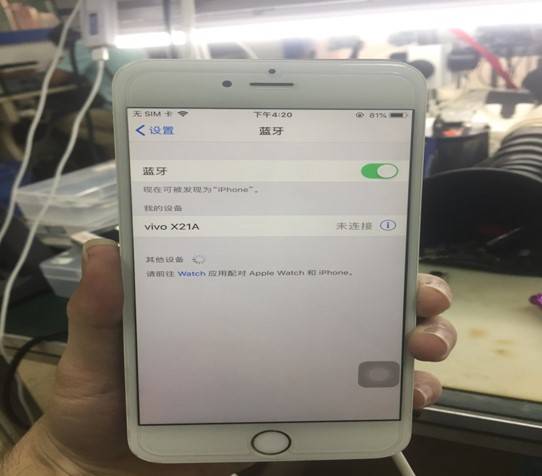

Bluetooth can be connected normally,Rear Camera is back to normal, and the maintenance is now over.

415;IMG_260

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work Maintenance Figure 5.

450;IMG_261

iPhone 6 Plus Bluetooth can’t connect, Rear Camera doesn’t work Maintenance Figure 6.
