iPhone 6 has no sound and WiFi cannot be used for repaired

iPhone 6 has no sound. The flying cable connects the feet of large and small audio, and repairs the fault after replanting the WiFi chip.

iPhone 6 has no sound and WiFi cannot be used for repaired

Machine model: iPhone 6

Malfunction: the phone has no sound, and WiFi can’t be used

iPhone 6 has no sound and WiFi cannot be used for repaired

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 1.

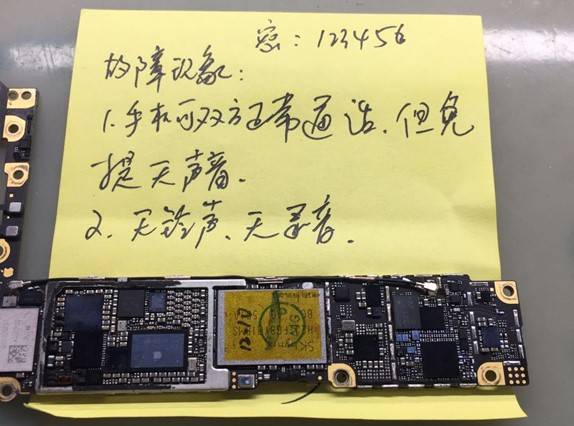

Maintenance process: After the test, the coder problem was exactly as described by the customer. After removing the motherboard, it was found to be Previously repaired machine.

iPhone 6 has no sound and WiFi cannot be used for repaired

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 2.

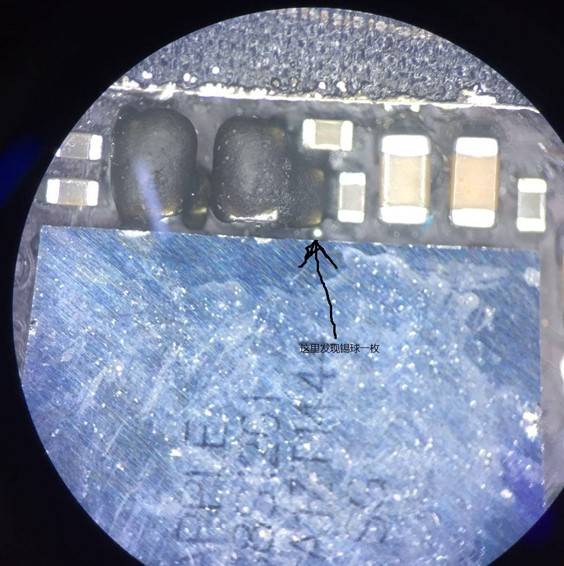

coder is surrounded by Flux.

iPhone 6 has no sound and WiFi cannot be used for repaired

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 3.

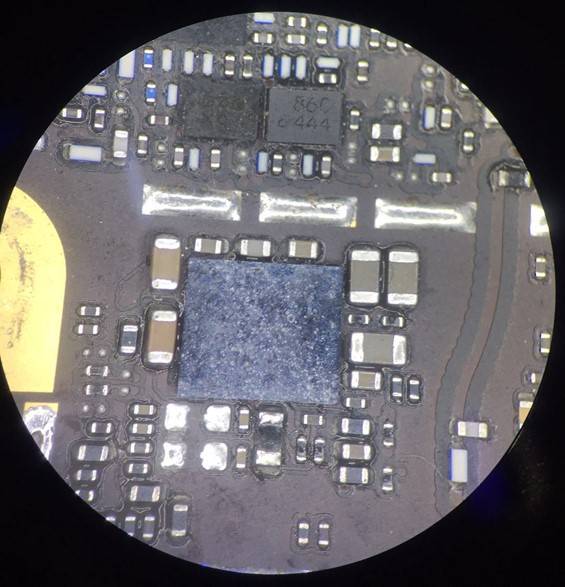

AUDIO CODEC IC has solder beads on the side, but there is no Flux.

234;IMG_259

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 4.

257;IMG_260

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 5.

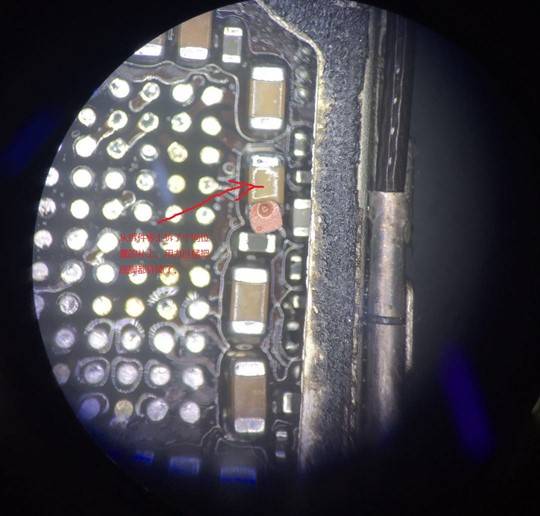

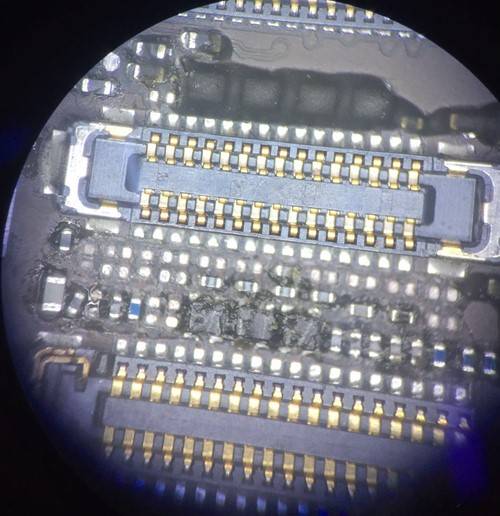

Capacitor on the side of AUDIO CODEC IC is indispensable. Look at BTB connector on the back under the microscope.

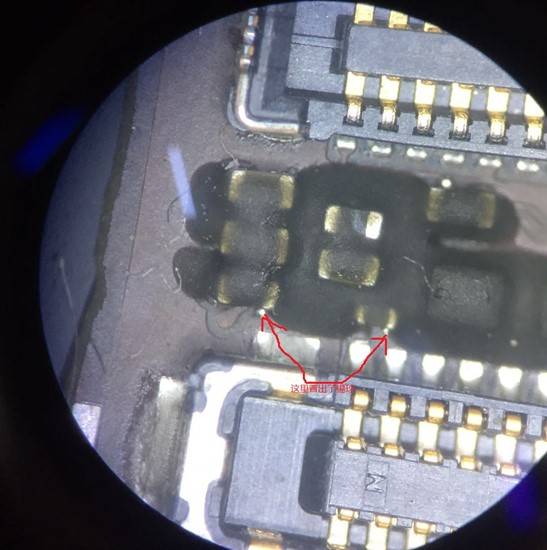

311;IMG_261

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 6.

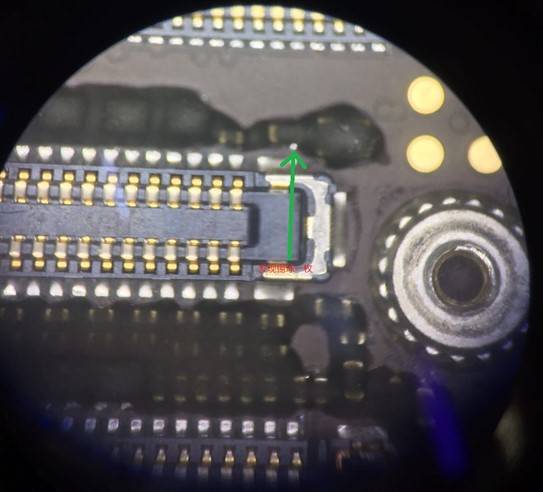

334;IMG_262

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 7.

357;IMG_263

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 8.

Remove the size coder, make up the missing Capacitor, measure the pin bits of PAD, and find that or so CLK of small coder is broken,AUDIO CODEC IC Diode value is normal.

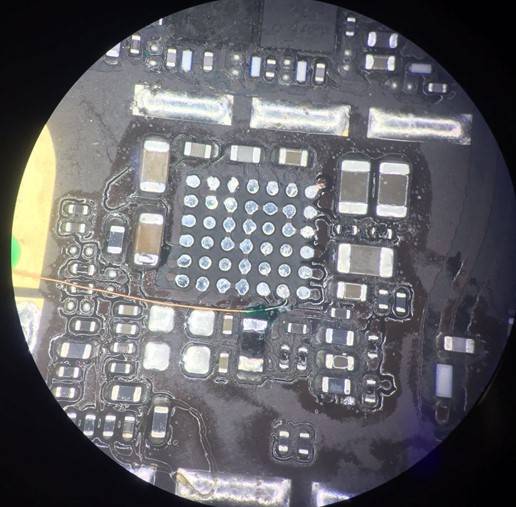

425;IMG_264

iPhone 6 has no sound and WiFi cannot be used for repaired Figure 9.

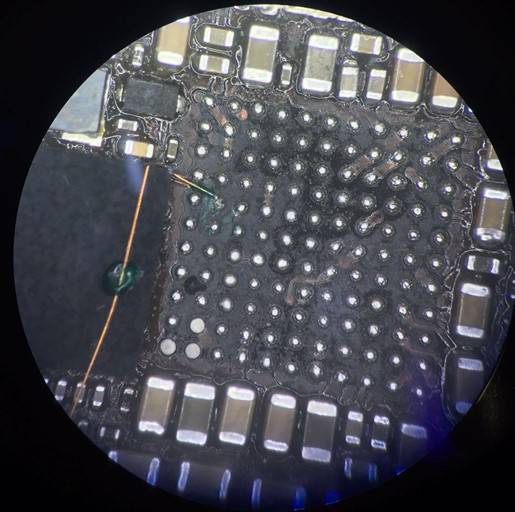

448;IMG_265

iPhone 6 has no sound and WiFi cannot be used for repaired figure 10.

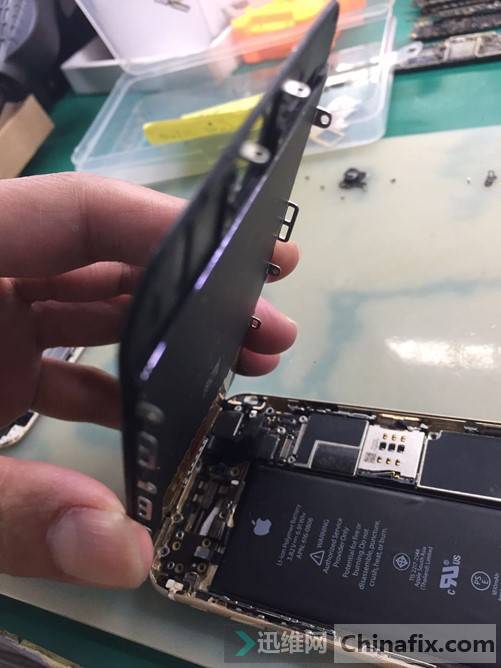

Jump wire connects pin bits of coder, puts the chip back, and starts the test.

497;IMG_266

iPhone 6 has no sound and WiFi cannot be used for repaired figure 11.

Here’s the problem. The backlight will not display.

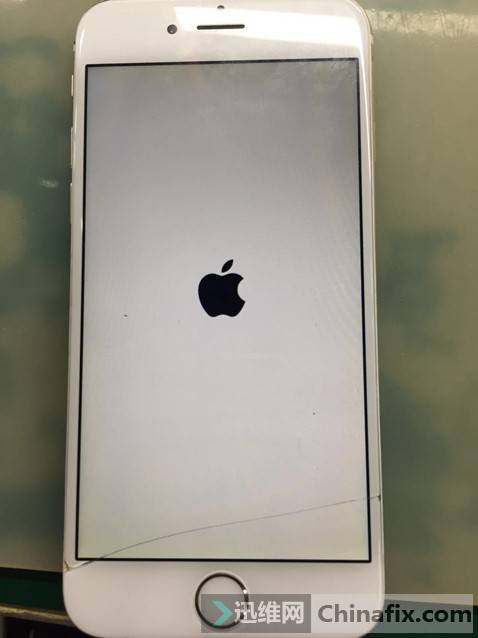

534;IMG_267

iPhone 6 has no sound and WiFi cannot be used for repaired figure 12.

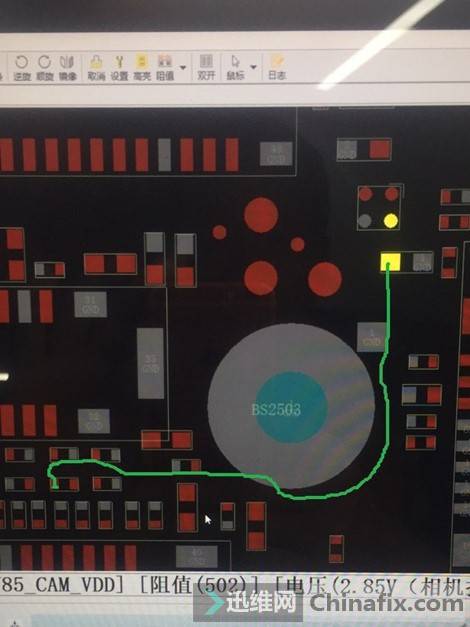

After measuring short-circuit, the screen of 5.7V Inductor lit up, and went into the system test, the sound problem was perfectly repaired, but the rear camera could not be turned on, and the measuring 2.85V VCC was disconnected.

612;IMG_268

iPhone 6 has no sound and WiFi cannot be used for repaired figure 13.

Remove four pin tubes,Jump wire to photosensitive 3V, the problem is solved, but WiFi can’t be turned on.

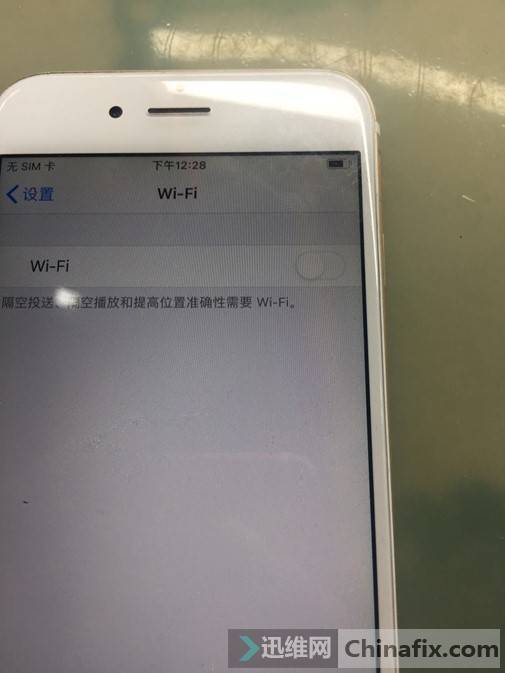

665;IMG_269

iPhone 6 has no sound and WiFi cannot be used for repaired figure 14.

get hold ofmobileLater, I found that WIFI has The solder tin extruded, and it seems that I have to reset the WiFi chip.

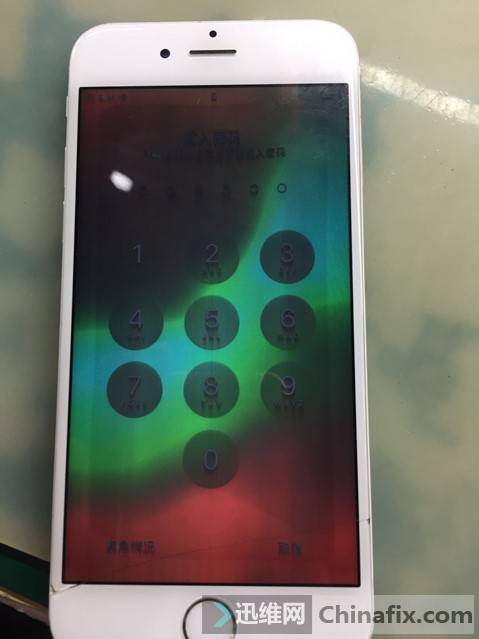

804;IMG_270

iPhone 6 has no sound and WiFi cannot be used for repaired figure 15.

828;IMG_271

iPhone 6 has no sound and WiFi cannot be used for repaired figure 16.

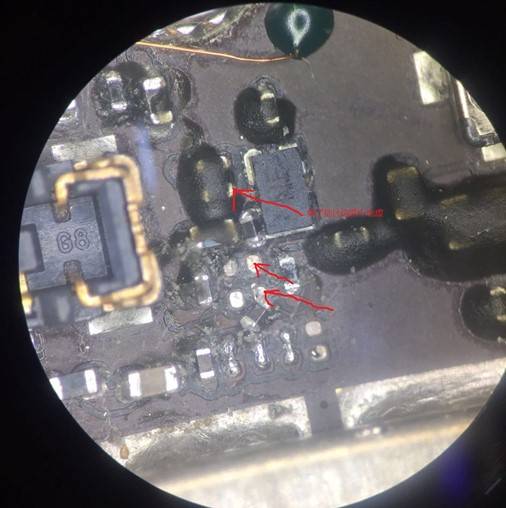

Remove all glue.

858;IMG_272

iPhone 6 has no sound and WiFi cannot be used for repaired figure 17.

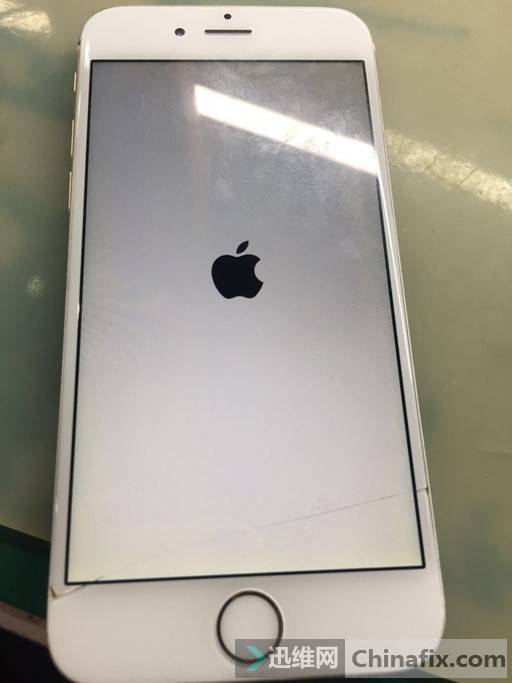

All functions of the boot test are normal.

894;IMG_273

iPhone 6 has no sound and WiFi cannot be used for repaired figure 18.
