iPhone 13 suddenly won’t turn on

iPhone 13 suddenly won't turn on,remove the damaged capacitor,and the maintenance was completed.

iPhone 13 suddenly won’t turn on

Machine model:iPhone 13

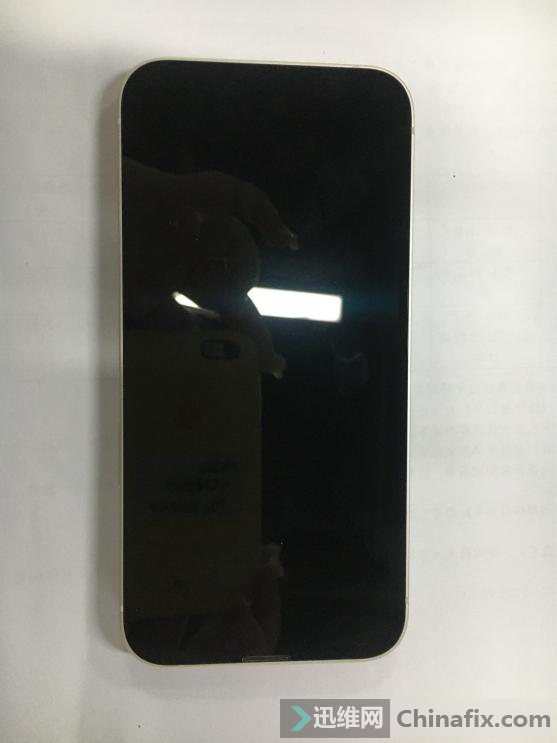

Fault phenomenon:iPhone 13 suddenly won’t turn on.

Repair process:

iPhone 13 suddenly won't turn on

iPhone 13 suddenly won’t turn on  Figure 1.

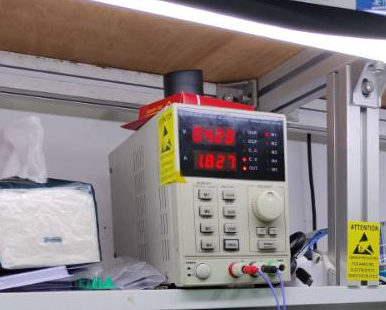

When the single board presses the power on key and the current is 300ma-1.3a, it is judged that VCC has Short circuit. Remove the main board, measure the VCC ground value of VCC output power supply, and measure Nand 3V VCC Short circuit.

iPhone 13 suddenly won't turn on

iPhone 13 suddenly won’t turn on  Figure 2.

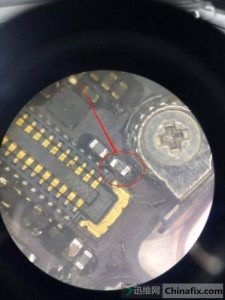

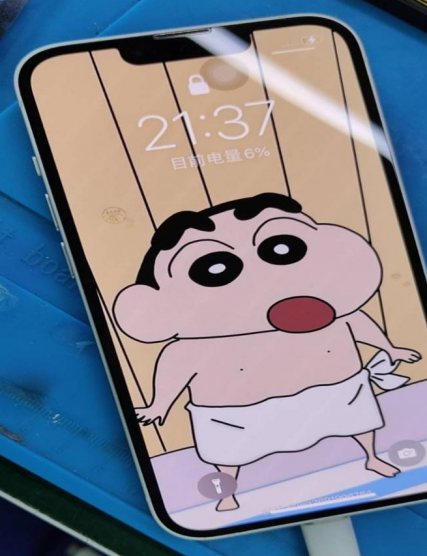

One Capacitor on the edge of Nand was burned out by Current heating test method, and it was damaged. After removal, the current jumped normally, and it was started into the system, and the maintenance was completed.

iPhone 13 suddenly won't turn on

iPhone 13 suddenly won’t turn on  Figure 3.

243;104333u8y8hjpwph48rhcp.png.thumb

iPhone 13 suddenly won’t turn on  Figure 4.
