iPhone 12 Mini no baseband WiFi repair

The iPhone 12 MINI has no baseband WiFi, and the drop point is serious. After patching the fly line, it fits again, and the fault is solved.

iPhone 12 Mini no baseband WiFi repair

Machine model: iPhone 12 Mini
Fault phenomenon: there is no Bluetooth on no Baseband Version WiFi.
Maintenance process:

iPhone 1 12 Mini turned on no Baseband Version WiFi without Bluetooth. After separate,pad break off was found to be serious. After patching Jump wire,welding was restarted and the fault was solved.

iPhone 12 Mini no baseband WiFi repair

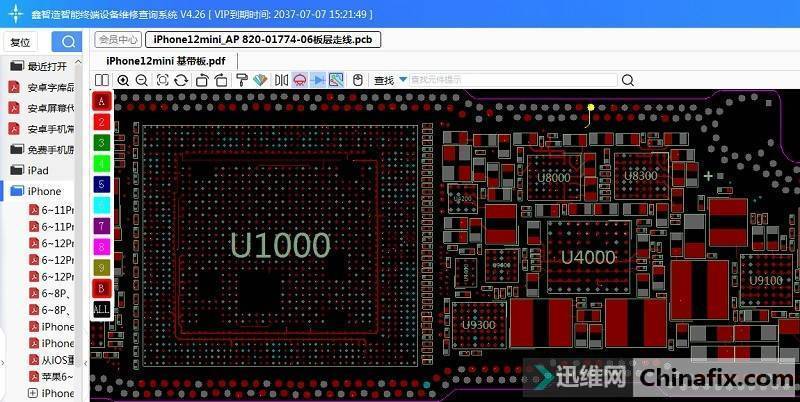

iPhone 12 Mini no baseband WiFi repair Figure 1.

iPhone 12 Mini no baseband WiFi repair

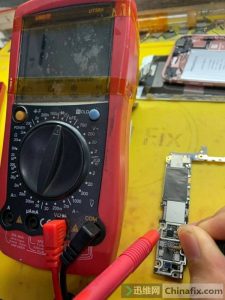

iPhone 12 Mini no baseband WiFi repair Figure 2.

iPhone 12 Mini no baseband WiFi repair

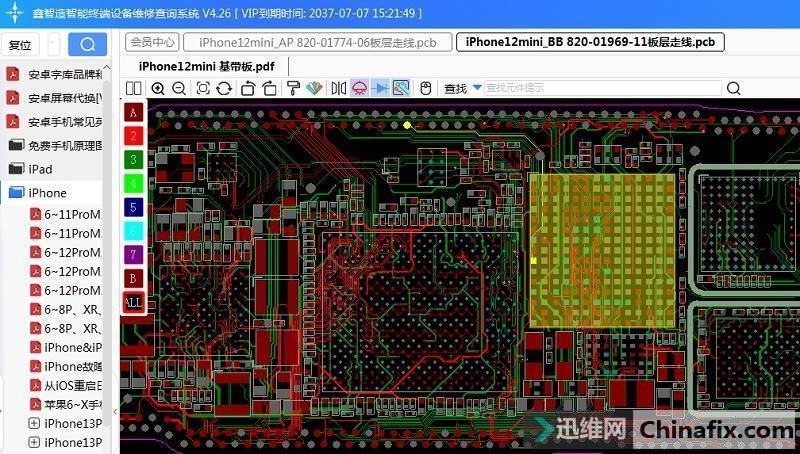

iPhone 12 Mini no baseband WiFi repair Figure 3.

253;IMG_259

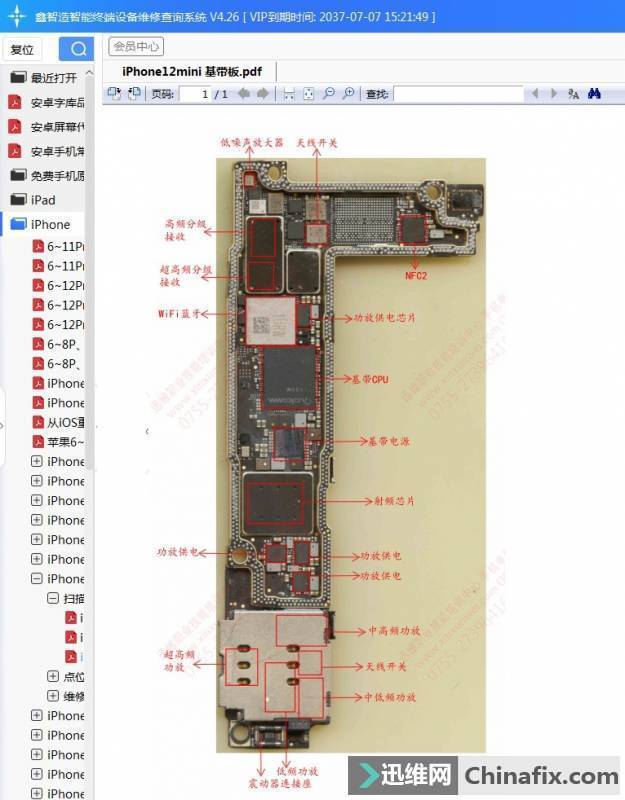

iPhone 12 Mini no baseband WiFi repair Figure 4.
