iPhone 11 Pro Max SIM card no serviecs fault maintenance

iPhone 11 Pro Max SIM card no serviecs, this fault is caused by power amplifier VCC shorted to ground card no serviecs.

iPhone 11 Pro Max SIM card no serviecs fault maintenance

Failure model: iPhone 11 Pro Max
Symptoms: SIM card no serviecs.
Customer description saidmobile phoneThere is a problem with no serviecs in use, and the signal is abnormal.

iPhone 11 Pro Max SIM card no serviecs fault maintenance

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 1.

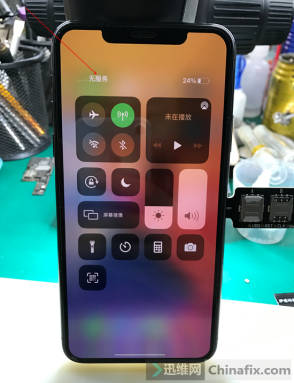

Maintenance process: after getting the mobile phone, it is found that the plug-in card displays no serviecs, and the signal is abnormal. Next, it is normal to dial *#06#IMEI in the dialing interface, then the RFFE bus is normal.

iPhone 11 Pro Max SIM card no serviecs fault maintenance

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 2.

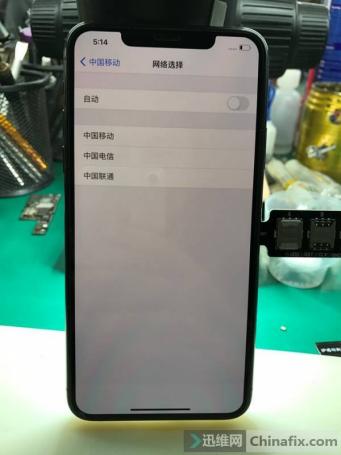

It is also normal to manually search and check the operator option, indicating that the signal receiving part is also normal.

iPhone 11 Pro Max SIM card no serviecs fault maintenance

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 3.

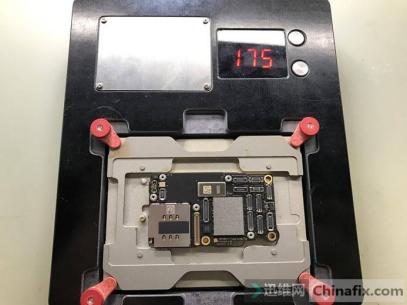

Then the problem appears in the launch part. Next, let’s disassemble the machine for inspection. Remove the motherboard separate.

321;IMG_259

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 4.

power amplifier was found in the inspection, and there was one VCC shorted to ground.

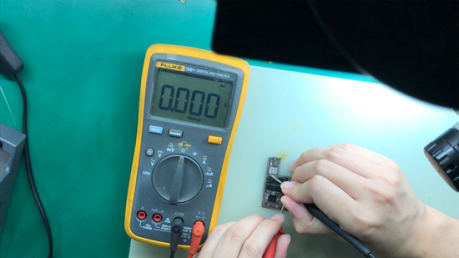

344;IMG_260

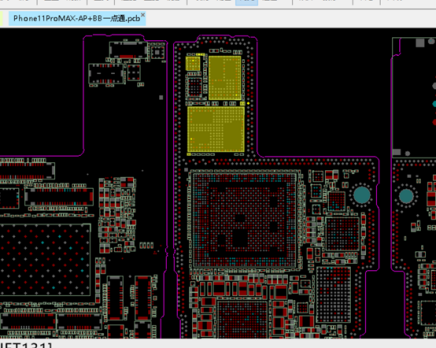

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 5. 346;IMG_261

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 6.

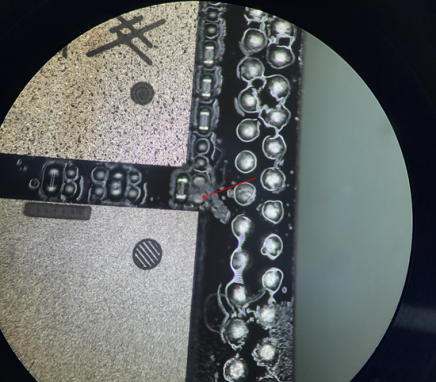

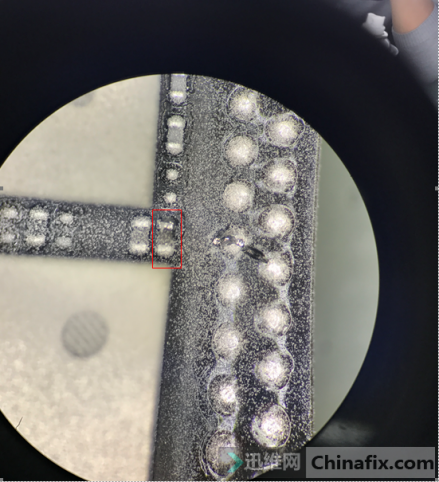

Next, we went to Current heating test to see where Short circuit was, and finally found that the filter Capacitor of VCC was damaged.

384;IMG_262

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 7.

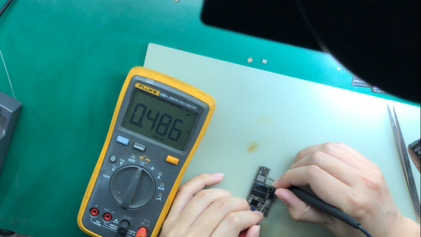

Pick out the tweezers directly, and the VCC to the ground diode value will return to normal.

406;IMG_263

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 8.

408;IMG_264

iPhone 11 Pro Max SIM card no serviecs fault maintenance figure 9.

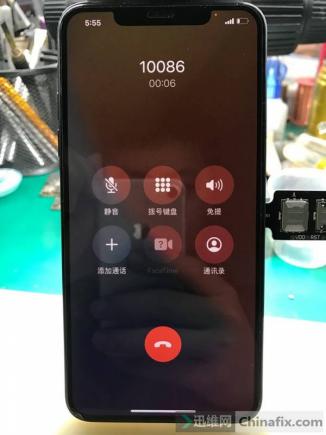

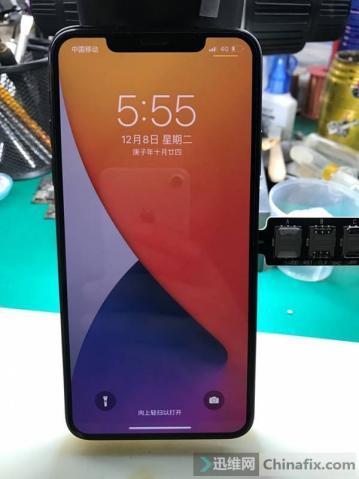

Do a good job of cleaning, re-test the motherboard welding, and install it. The startup signal returns to normal, the call is normal, and the maintenance ends here.
