IPad mini4 A1538 does not turn on or charge

IPad mini4 A1538 does not turn on or charge.

“Machine model” iPad mini4 A1538

【 Fault Phenomenon 】 No power-on and no charging

[Maintenance process] I received an iPad mini4 tablet, model A1538, which was sent by a customer for repair. The customer described that it was left to charge for one night, and it was not turned on the next day. There was no response when the power button was pressed.

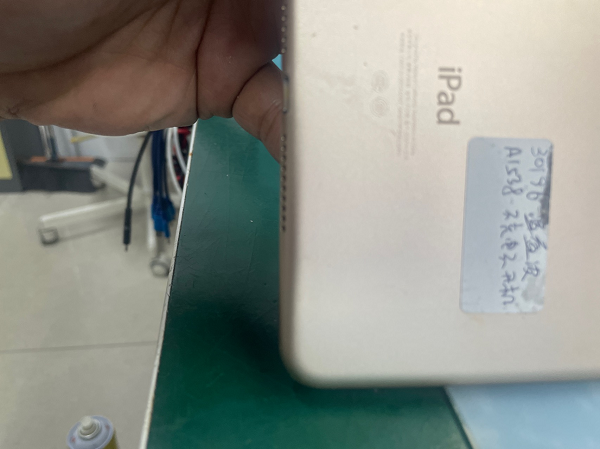

IPad mini4 A1538 does not turn on or charge Figure 1.

After receiving the machine plug-in data cable, it is found that there is no current, so it is directly disassembled for testing. If the motherboard is not short-circuited, it can be turned on directly by using the regulated power supply, so it can be repaired and charged. After measurement, it is found that the tail plug-in 5v does not reach the motherboard, so it should be that the tail plug-in is broken. A new tail plug-in test 5v can be sent to the motherboard, and the button screen test charging is normal.

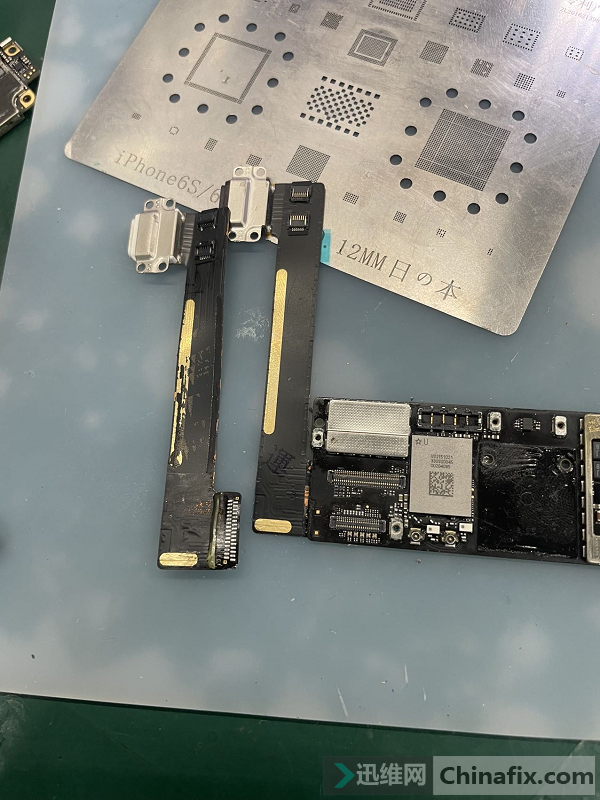

IPad mini4 A1538 does not turn on or charge. Figure 2

IPad mini4 A1538 does not turn on or charge. Figure 3

[Maintenance Result] Install the motherboard into the.mobile phoneIn the power-on test, the mobile phone is turned on into the system normally, and the functions of charging, WiFi, sound, compass, vibration, telephone and so on are normal. The maintenance is over here.
