Huawei nova6 can’t be opened for repair

Huawei's nova6 mobile phone can't be turned on, which was caused by Capacitor. After replacing Capacitor, the fault was repaired.

Huawei nova6 can’t be opened for repair

Machine model: 5G Huawei nova6
Customer description: The mobile phone won’t turn on.
Test result: the mobile phone can’t be turned on, and Low current is powered on.
Fault analysis: Android phone Low current, in general, is the motherboard Current protection caused by the main VCC or the second Short circuit. Just check the Short circuit fault point and repair the fault point.

Huawei nova6 can't be opened for repair

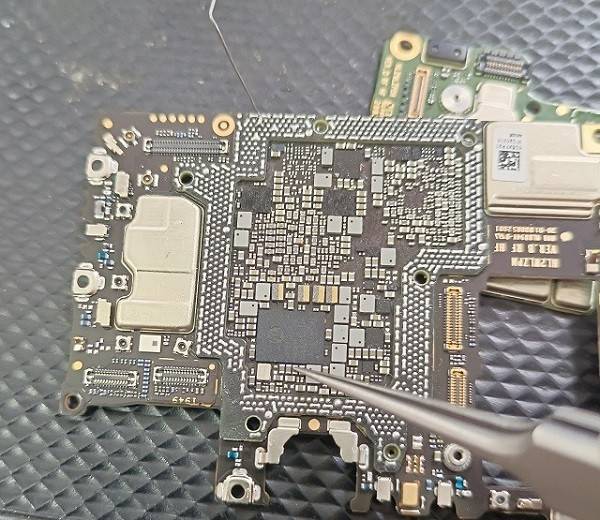

Huawei nova6 can’t be turned on. repair Figure 1.

Open Xinzhizao Soft software and Boardview of Huawei nova6 5G.

Huawei nova6 can't be opened for repair

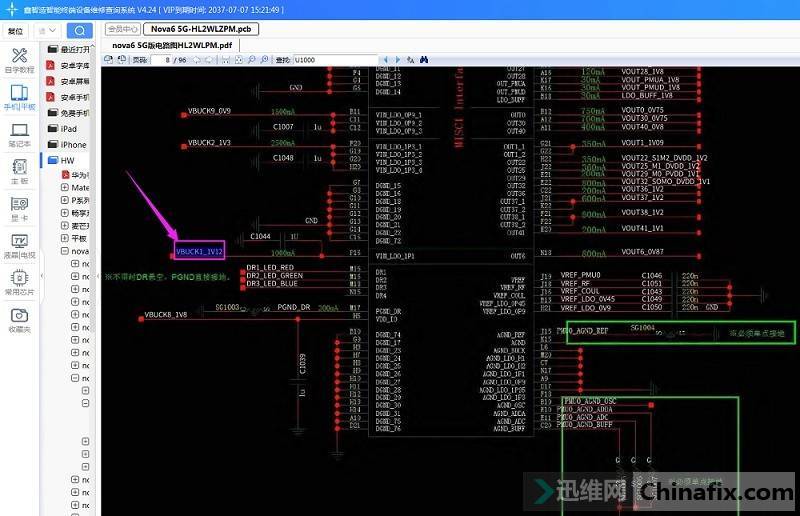

Huawei nova6 can’t be turned on. repair Figure 2.

Through schematic combined with Boardview, find the input and output components of the power chip on the motherboard, and measure whether the line is Short circuit.

Huawei nova6 can't be opened for repair

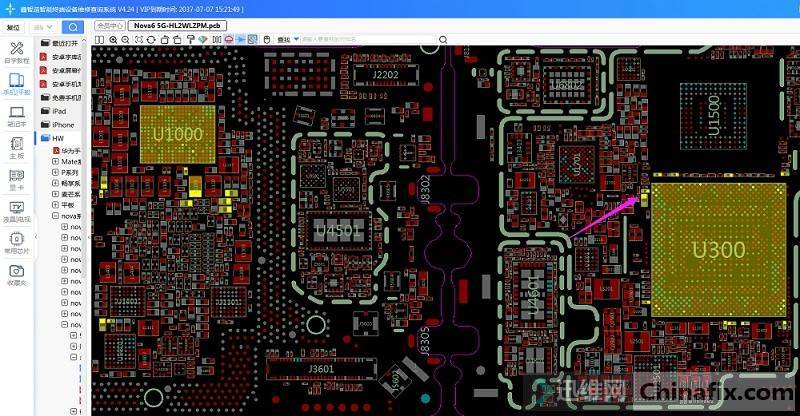

Huawei nova6 can’t be turned on. repair Figure 3.

After measurement, it is found that the power management chip outputs 1.2V VCC Short circuit to the CPU, and the motherboard is smoked with Colophony (Solder). When the circuit is powered on with 1.2V VCC, no obvious fault point is found. Turn VCC up to 1.8V, and find that VCC Colophony (Solder)melts next to CPU. After VCC is removed,Short circuit disappears and the fault is repaired.

395;IMG_259

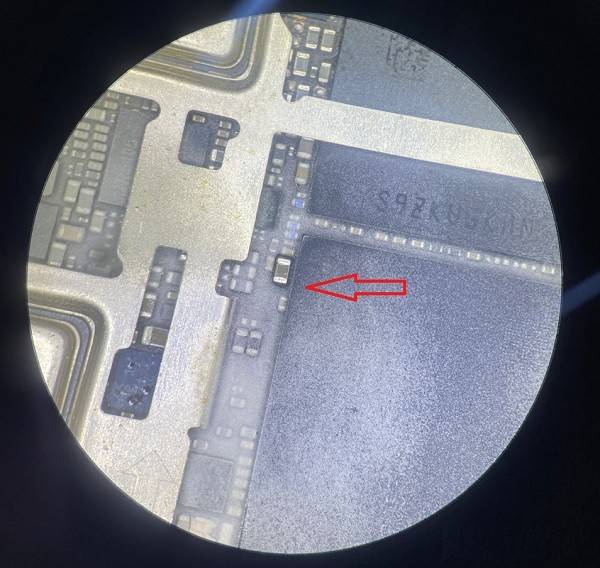

Huawei nova6 can’t be turned on. repair Figure 4.

416;IMG_260

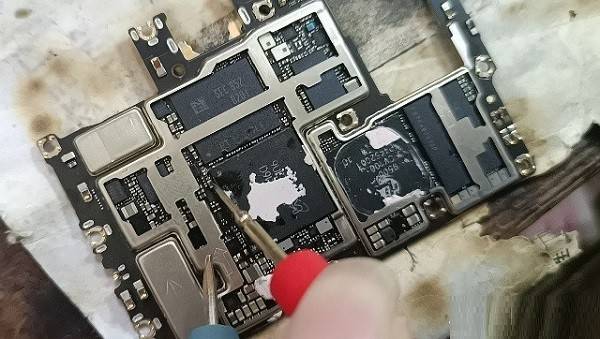

Huawei nova6 can’t be turned on. repair Figure 5.

437;IMG_261

Huawei nova6 can’t be turned on. repair Figure 6.
