Machine model: Huawei Nova3

Malfunction: the phone does not turn on when it is flooded.

Maintenance process:

I received a Huawei nova3, and the fault description shows that the mobile phone is flooded and can’t be turned on.

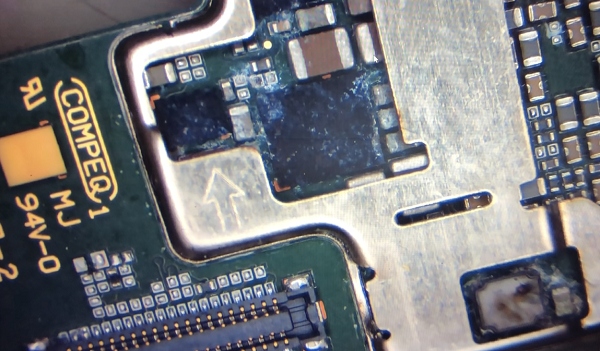

After getting the machine, disassemble it and take down the motherboard for observation.

IMG_256

Huawei nova3 mobile phone enters water and does not start up for maintenance Figure 1

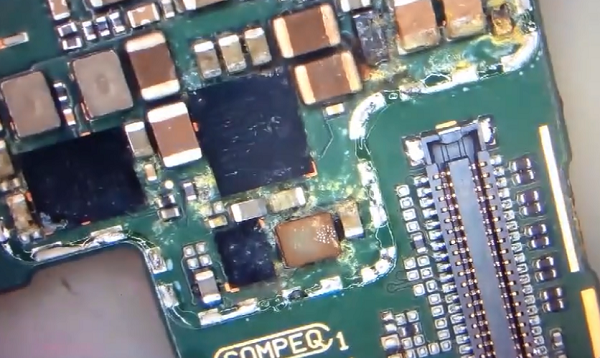

Disassemble the shield, and the corrosion is very serious.

IMG_257

Huawei nova3 mobile phone enters water and does not start maintenance Figure 2

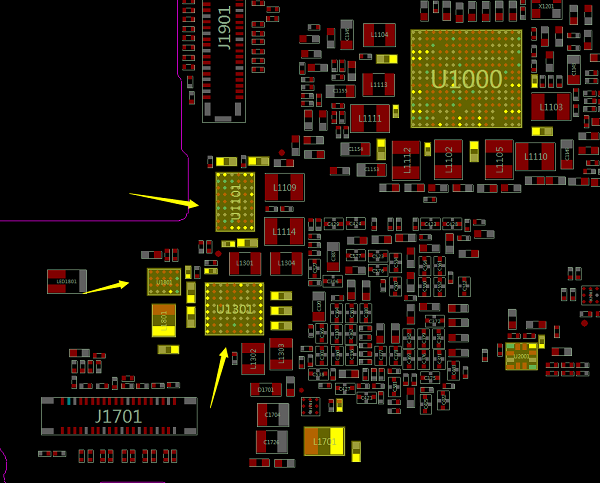

Remove the chip and process the pads one by one.

IMG_258

Huawei nova3 mobile phone enters water and does not start up for maintenance Figure 3

IMG_259

Huawei nova3 mobile phone enters water and does not start maintenance Figure 4

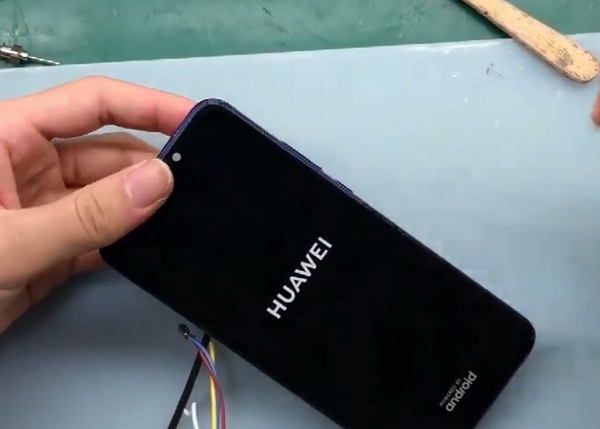

Replace the damaged chip, install the chip, power on the test, boot perfectly, and troubleshoot.

IMG_260

Huawei nova3 mobile phone enters water and does not start up for maintenance Figure 5
