Huawei Mate10 mobileno booting repair

Huawei Mate10 mobileno booting, after replacing the CPU VCC chip, the fault is solved.

Huawei Mate10 mobileno booting repair

Machine model: Huawei Mate10
Malfunction: switch large current, mobile phone no booting
Maintenance process:
Huawei’s Mate10 switch current is 200 mA too high to take off. The mobile phone no booting found the CPU VCC first high temperature by thermal imaging, and the fault was solved after replacing the CPU VCC chip.

Huawei Mate10 mobileno booting repair

Huawei Mate10 Mobile no booting repair Figure 1.

Huawei Mate10 mobileno booting repair

Huawei Mate10 Mobile no booting repair Figure 2.

Huawei Mate10 mobileno booting repair

Huawei Mate10 Mobile no booting repair Figure 3.

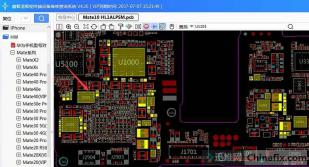

378;IMG_259

Huawei Mate10 Mobile no booting repair Figure 4.

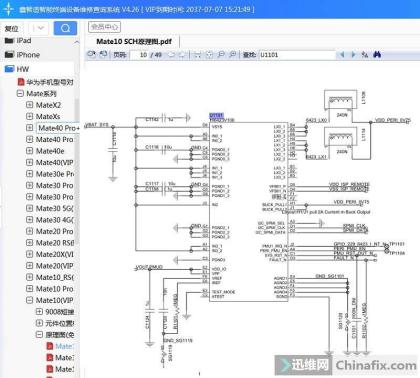

399;IMG_260

Huawei Mate10 Mobile no booting repair Figure 5.
