Huawei mate 30pro Front Camera cannot be opened for repair

Huawei mate 30pro Front Camera cannot be opened, and the fault is solved after Jump wire.

Huawei mate 30pro Front Camera cannot be opened for repair

Machine model: Huawei mate 30pro

Fault phenomenon: Front Camera cannot be opened
Maintenance method:
Huawei mate 30pro Front Camera couldn’t be opened. It was found that Screw hole was dropped after dismantling the machine, and PCB layer was obviously disconnected. Four wires were broken. The fault was solved after Jump wire.

Huawei mate 30pro Front Camera cannot be opened for repair

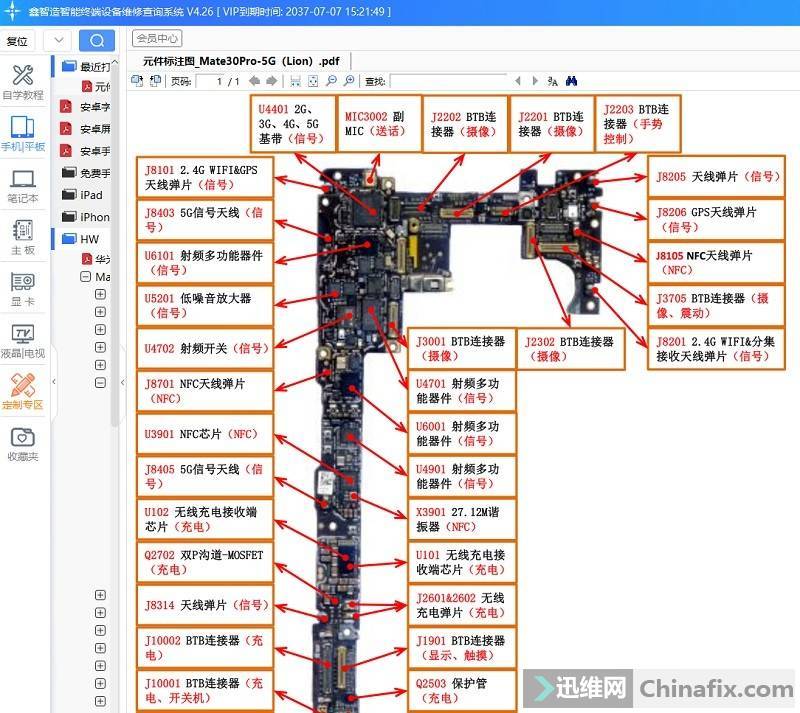

Huawei mate 30pro Front Camera cannot open repair Figure 1.

Huawei mate 30pro Front Camera cannot be opened for repair

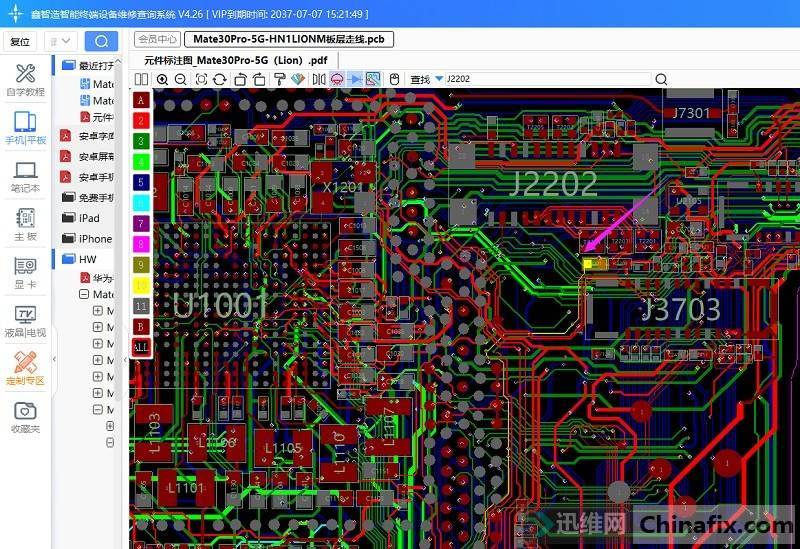

Huawei mate 30pro Front Camera cannot open repair Figure 2.

Huawei mate 30pro Front Camera cannot be opened for repair

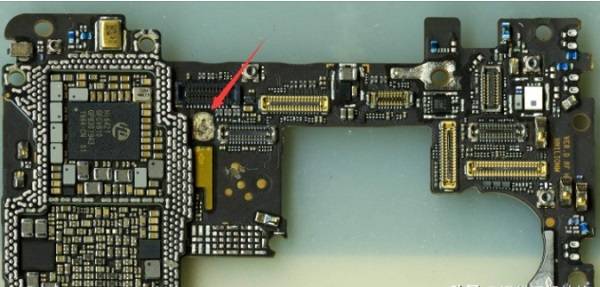

Huawei mate 30pro Front Camera cannot open repair Figure 3.

222;IMG_259

Huawei mate 30pro Front Camera cannot open repair Figure 4.
