Huawei mate 30 Pro mobile phone has no signal repair

Huawei mate 30 Pro mobile phone has no signal,separate Repeat welding main power supply makes a homing action, power on test, fault repair.

Huawei mate 30 Pro mobile phone has no signal repair

Machine model: Huawei mate 30 Pro
Fault phenomenon:

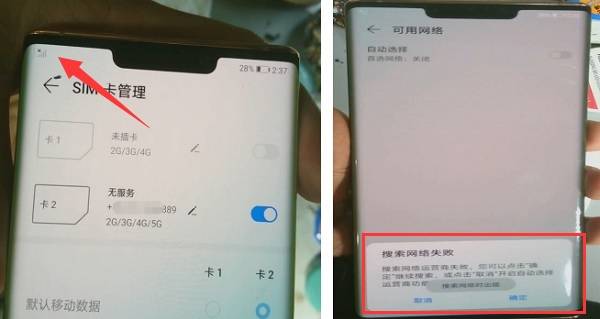

The machine was collected by peers. After changing a new screen, the phone turned on and found that there was no signal on the phone. Both Baseband and IMEI can also read the card. Manual search for operators failed.

Huawei mate 30 Pro mobile phone has no signal repair

Huawei mate 30 Pro mobile phone has no signal repair Figure 1.

Fault analysis:
For Kirin models, most of the search operators failed because the working conditions of IF were not met.
Maintenance process:
The IF was replaced first, and the fault is still the same.

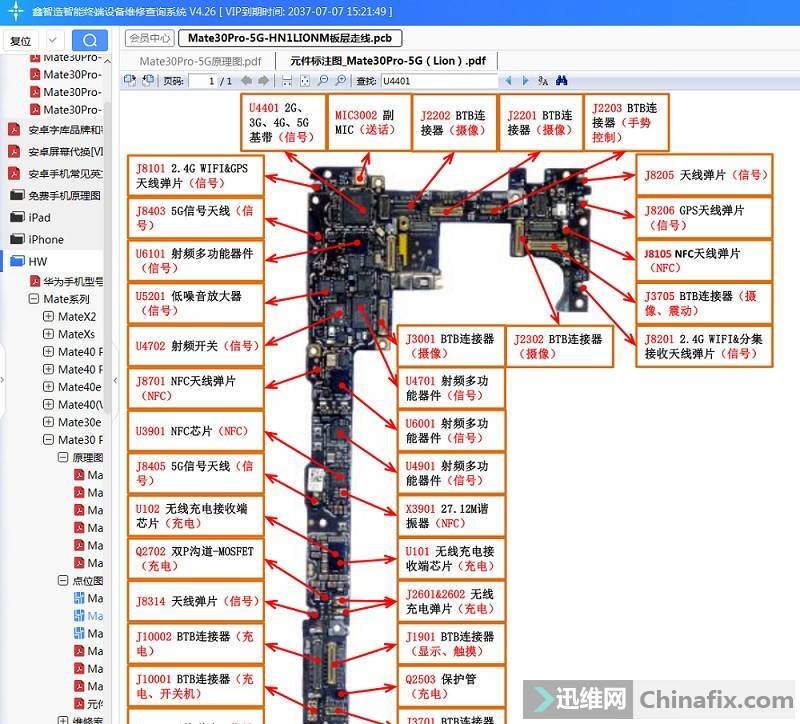

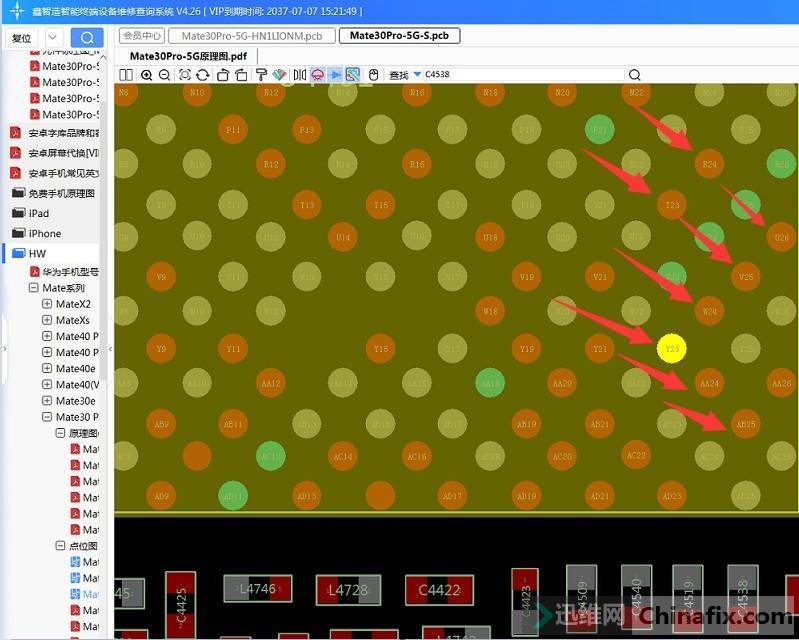

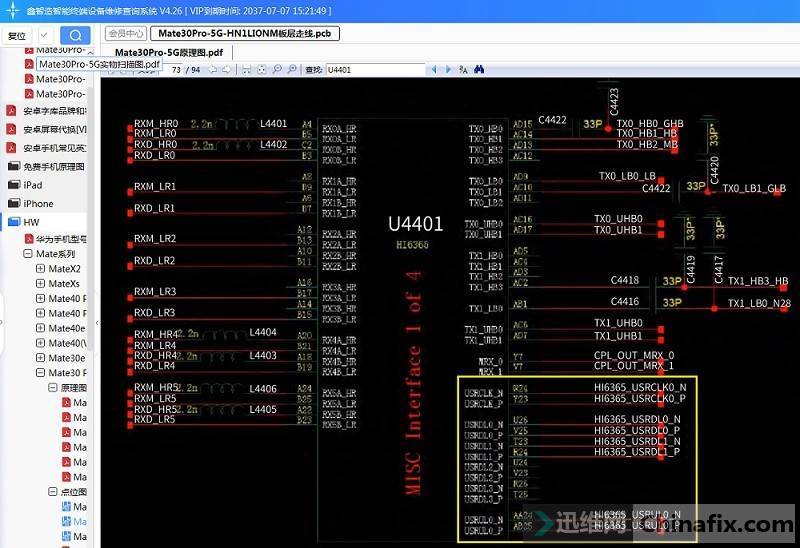

At this time, we have two directions: first, the working conditions of IF are not satisfied;The second is caused by Inveracious Soldering.Remove IF, measure the 8-way communication between pin at the bottom of IF and CPU, and find that diode value is normal.

Huawei mate 30 Pro mobile phone has no signal repair

Huawei mate 30 Pro mobile phone has no signal repair Figure 2.

Huawei mate 30 Pro mobile phone has no signal repair

Huawei mate 30 Pro mobile phone has no signal repair Figure 3.

337;IMG_259

Huawei mate 30 Pro mobile phone has no signal repair Figure 4.

363;IMG_260

Huawei mate 30 Pro mobile phone has no signal repair Figure 5.

389;IMG_261

Huawei mate 30 Pro mobile phone has no signal repair Figure 6.

415;IMG_262

Huawei mate 30 Pro mobile phone has no signal repair Figure 7.

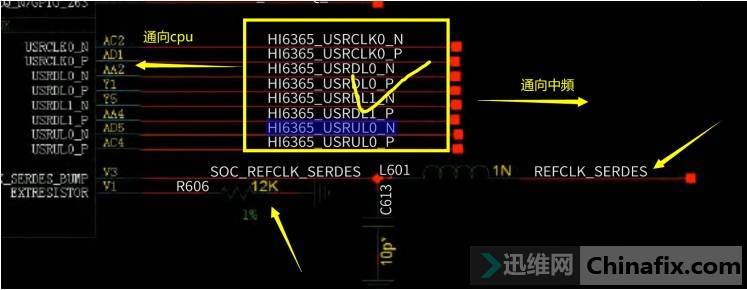

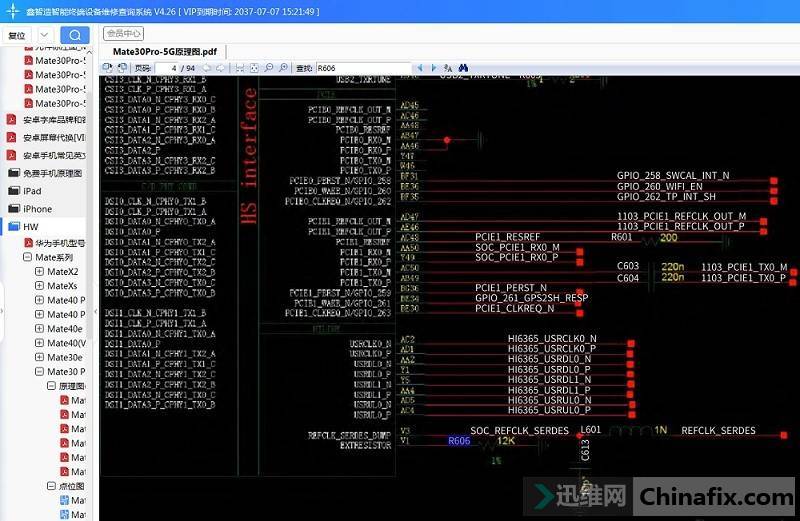

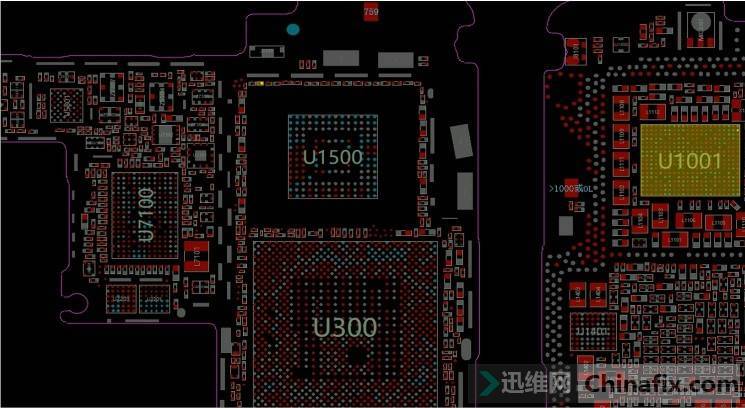

Therefore,IF, CPU and their communication are basically excluded. After looking at the drawing of CPU module, it is found that there are two circuits under the communication circuit with IF. The first [pmuo ﹣ RF1 ﹣ CLK] is the main power supply of CPU.

521;IMG_263

Huawei mate 30 Pro mobile phone has no signal repair figure 8.

547;IMG_264

Huawei mate 30 Pro mobile phone has no signal repair Figure9.

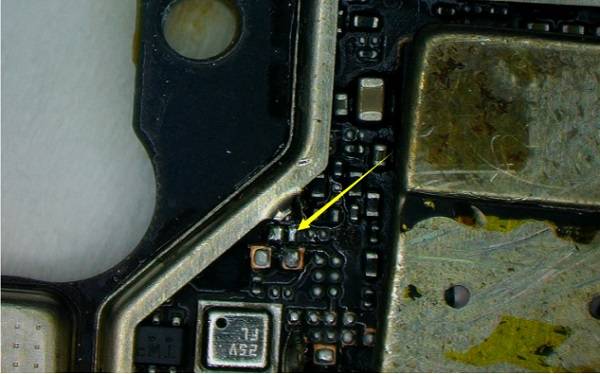

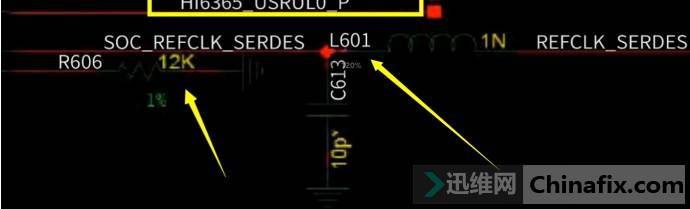

Remove the l601 measurement pass CPU with diode value 370 or so.

597;IMG_265

Huawei mate 30 Pro mobile phone has no signal repair Figure 10.

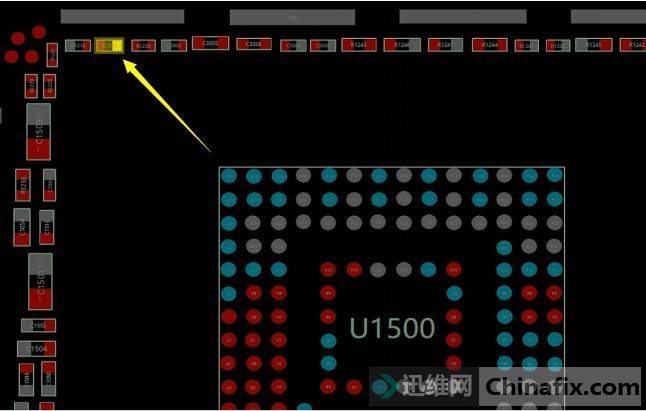

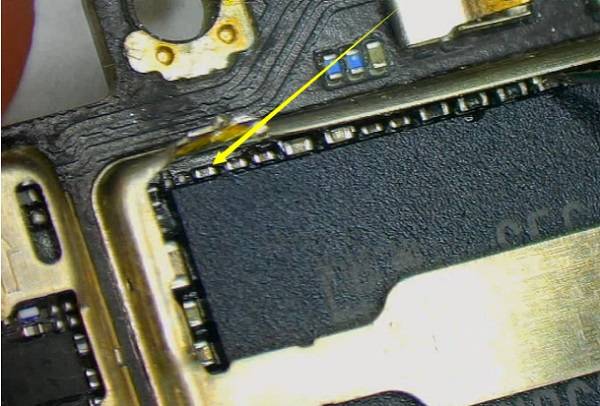

The other end of the test is ol, because it needs to connect to the main power supply through a coupling Capacitor, and make up for Inductor l601.

660;IMG_266

Huawei mate 30 Pro mobile phone has no signal repair Figure 11.

687;IMG_267

Huawei mate 30 Pro mobile phone has no signal repair Figure 12.

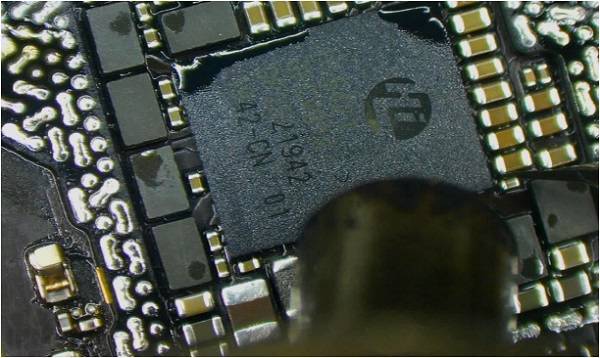

Test c1226 is connected to one end of the main power supply diode value and 400 or so. Combined with the main board, the screen has been changed, and it must have fallen before, and there is no deformation area on the main board, so the main power supply or Inveracious Soldering in the middle layer is basically locked.

778;IMG_268

Huawei mate 30 Pro mobile phone has no signal repair Figure 13.

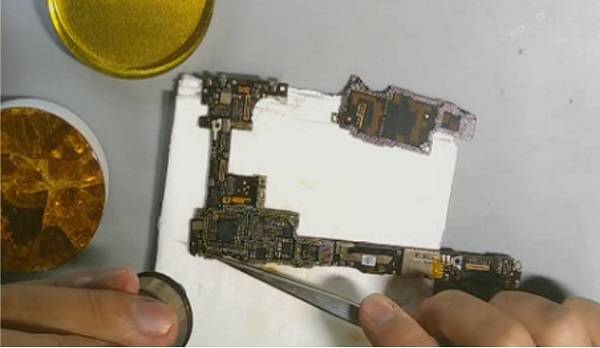

separate Repeat welding main power supply makes a homing action.

820;IMG_269

Huawei mate 30 Pro mobile phone has no signal repair Figure 14.

Maintenance results:

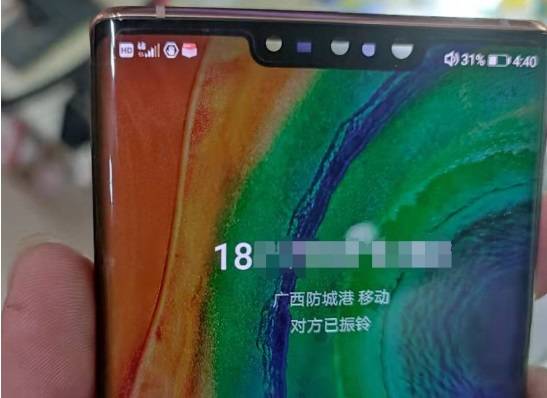

Power on test, there is a signal. At this point, Huawei mate 30 Pro mobile phone has no signal fault repair.

892;IMG_270

Huawei mate 30 Pro mobile phone has no signal repair Figure 15.
