Huawei kpl-w00 notebook does not charge for

Huawei kpl-w00 does not respond to boot, the notebook does not charge, replace the resistance of corrode, and it is perfectly repaired.

Huawei kpl-w00 notebook does not charge for

Machine model: Huawei kpl-w00

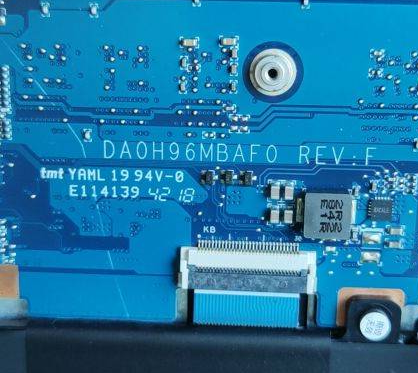

Board No.: daoh96mbafo Rev: F

Fault phenomenon: press boot does not respond, laptop does not charge.

Maintenance process: Huawei’s kpl-w00 notebook does not respond when it is turned on and does not charge.



Huawei kpl-w00 notebook does not charge for Repair

Huawei kpl-w00 notebook does not charge for Figure 1.

It was found that there was only 6.1v at the common point, which was obviously wrong. The VCC battery was above 7V.

Huawei kpl-w00 notebook does not charge for Repair

Huawei kpl-w00 notebook does not charge for Figure 2.

Test type-C to 19v normal, indicating that the type-C circuit is normal.

Huawei kpl-w00 notebook does not charge for Repair

Huawei kpl-w00 notebook does not charge for Figure 3.

Observe the motherboard, a standby 3.3V open voltage divider corrode Open circuit, change can be normal display.

华为KPL-W00笔记本按开机没反应,不充电维修 图4

Huawei kpl-w00 notebook does not charge for Repair4.

华为KPL-W00笔记本按开机没反应,不充电维修 图5

Huawei kpl-w00 notebook does not charge for Figure 5.

This machine uses the charging chip bq25703a, the circuit is a little complicated, share the key points.Take the changed resistor apart again, and let the common point VCC be 6.1v before. Do the experiment with an oscilloscope. The channels are as follows:schematic, q1g level 1 channel, q22 channel, Q43 channel, batt 4 channel. The duty cycle is very small. The waveform can be measured in Q1 Q2 Q3 Q4.VCC can not be measured by multimeter on the right side of Inductor,What an oscilloscope can measure is a square wave.

华为KPL-W00笔记本按开机没反应,不充电维修 图6

Huawei kpl-w00 notebook does not charge for Figure 6.

华为KPL-W00笔记本按开机没反应,不充电维修 图7

Huawei kpl-w00 notebook does not charge for Figure 7.

Install the standby 3.3V resistor back and measure the waveform.

华为KPL-W00笔记本按开机没反应,不充电维修 图8

Huawei kpl-w00 notebook does not charge for figure 8.

614;IMG_264

Huawei kpl-w00 notebook does not charge for Figure 9.

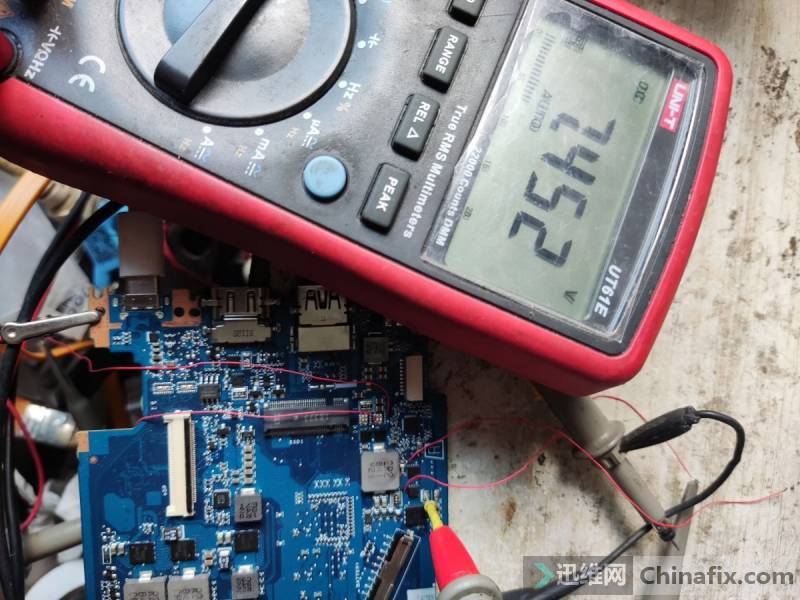

It is detected that the VCC displayed on Channel 4 is 7.4v, and the same is detected by multimeter. At this time, it is in standby mode, and then look at the startup waveform.

华为KPL-W00笔记本按开机没反应,不充电维修 图10

Huawei kpl-w00 notebook does not charge for Figure 10.

When the machine is turned on, Q1 and Q2 are in normal square wave, Q4 directly enters the saturated channel state, Q3 is closed, and VCC 8.4v is output.,Under normal standby mode, the oscillograph is connected with 1 channel Q1, 2 channel Q4, 3 channel bq25703 12Pin SDA, and 4 channel is connected to common point according to channel sequence.

华为KPL-W00笔记本按开机没反应,不充电维修 图11

Huawei kpl-w00 notebook does not charge for Figure 11.

Waveform during normal charging.

华为KPL-W00笔记本按开机没反应,不充电维修 图12

Huawei kpl-w00 notebook does not charge for Figure 12.

华为KPL-W00笔记本按开机没反应,不充电维修 图13

Huawei kpl-w00 notebook does not charge for Figure 13.
