Model: Huawei Glory 20i

Malfunction: the backlight of the mobile phone screen is not lit.

Maintenance process:

A Huawei Glory 20i, the screen of the mobile phone is displayed, but the backlight is not lit.

Dismantle the machine, take out the motherboard, and check the resistance of the display base. It is found that the resistance of LED3- to the ground is abnormal.

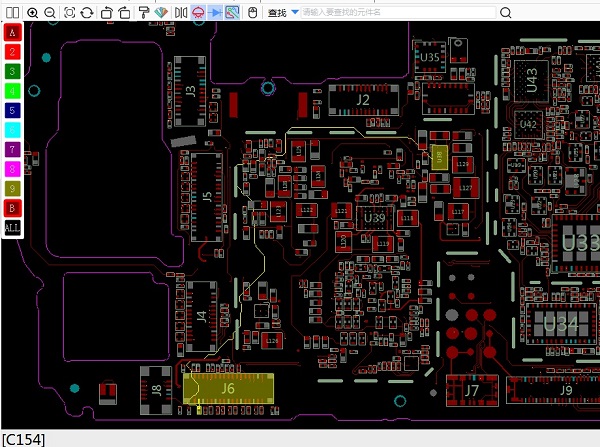

Open Xinzhizhao, check the drawings and bitmap, and know that this LED3- leads to the D1 pin of the lighting boost IC.

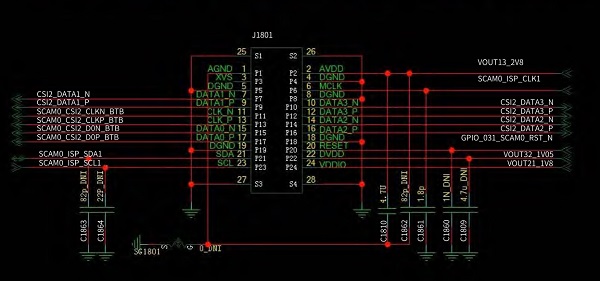

Huawei glory 20i mobile phone screen display backlight does not light repair

Huawei 20i mobile phone screen display backlight does not light maintenance Figure 1

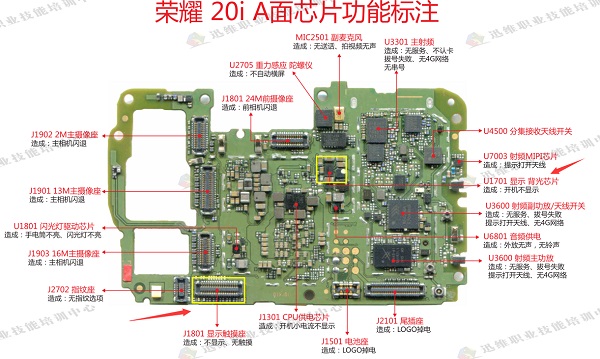

Huawei glory 20i mobile phone screen display backlight does not light repair

Huawei 20i mobile phone screen display backlight does not light maintenance Figure 2

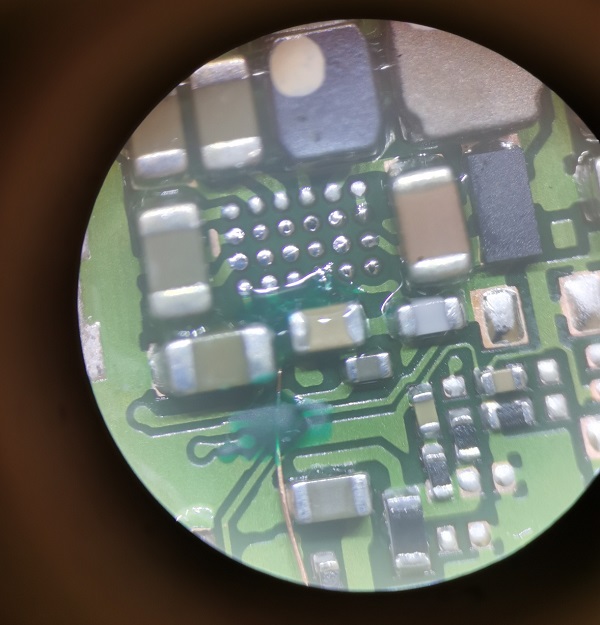

Remove the IC, test the two places with buzzer, and make sure the motherboard is disconnected.

Huawei glory 20i mobile phone screen display backlight does not light repair

Huawei 20i mobile phone screen display backlight does not light maintenance Figure 3

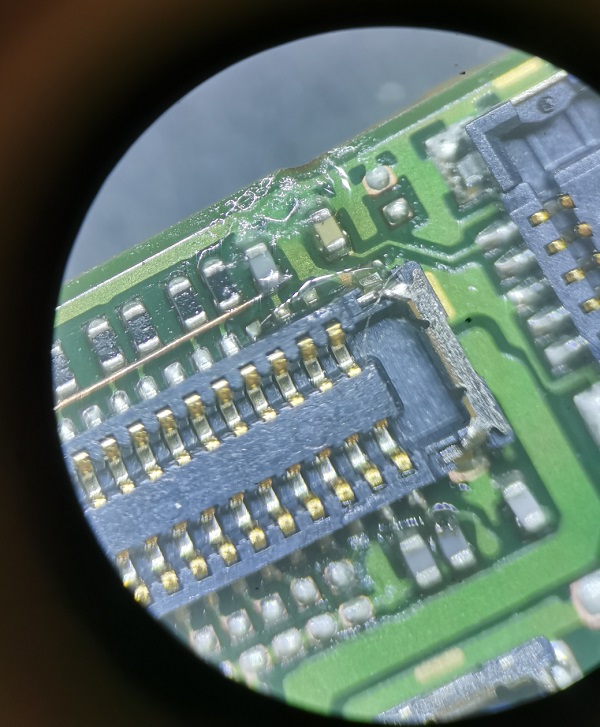

Fly the wire directly, install the IC, and the resistance is normal.

IMG_259

Huawei 20i mobile phone screen display backlight does not light maintenance Figure 4

IMG_260

Huawei’s glory 20i mobile phone screen display backlight does not light maintenance Figure 5

IMG_261

Huawei 20i mobile phone screen display backlight does not light maintenance Figure 6

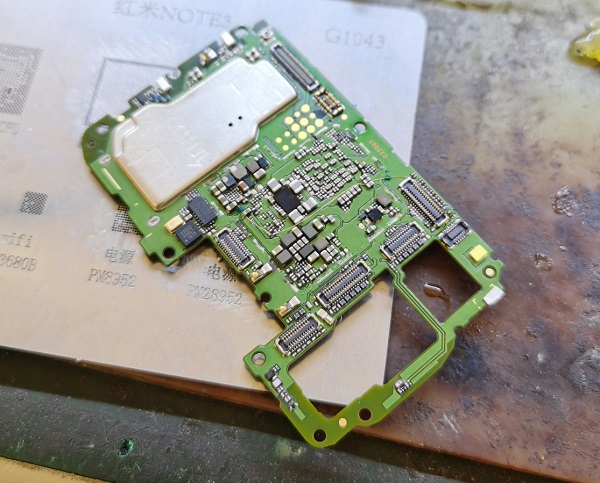

Installation test, lighting is normal.
