HONOR 9X can’t turn on WiFi for repair

HONOR 9X can't turn on WiFi. Remove Fuse resistor of corrode and repair the fault.

HONOR 9X can’t turn on WiFi for repair

Machine model: HONOR 9X

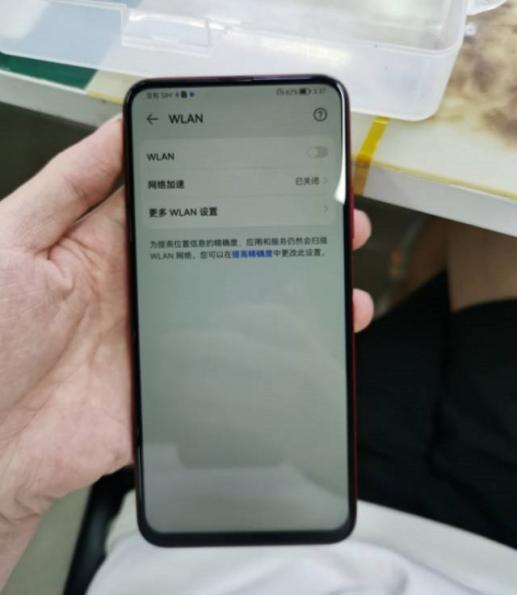

Fault phenomenon: WiFi cannot be turned on after the mobile phone water damage.

HONOR 9X can't turn on WiFi for repair

HONOR 9X can’t turn on WiFi Figure 1.

Repair process: it was found that there was a resistor corrode on the main board when the machine was disassembled. The diode value at both ends of the resistance was measured, and it was found that there was a big difference between the two ends of diode value.

HONOR 9X can't turn on WiFi for repair

HONOR 9X can’t turn on WiFi Figure 2.

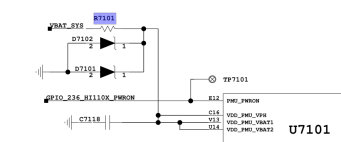

Compared with Boardview, it is known that this is a Fuse resistor.

HONOR 9X can't turn on WiFi for repair

HONOR 9X can’t turn on WiFi Figure 3.

HONOR 9X can’t turn on WiFi Figure 4.

Remove corrode resistor directly and carry out short-circuit.

3

HONOR 9X can’t turn on WiFi Figure 5.

Power on test, mobile phone can turn on WiFi, fault repair.

4

HONOR 9X can’t turn on WiFi Figure 6.
