HONOR 60 cannot be charged,How to repair?
Model: HONOR 60
Fault phenomenon: HONOR 60 entered the water, and then it couldn’t be charged.
Maintenance process: Plug in the data cable to the mobile phone, and find that the charging icon is displayed on the screen, but it can’t be charged.
HONOR 60 cannot be charged Figure 1.
It is found that there are many serious water corrosion marks on the motherboard. After cleaning the corroded places first and testing again, the mobile phone still can’t be charged.
HONOR 60 cannot be charged Figure 2.
HONOR 60 cannot be charged Figure 3.
HONOR 60 cannot be charged Figure 4.
HONOR 60 cannot be charged Figure 5.
HONOR 60 cannot be charged Figure 6.

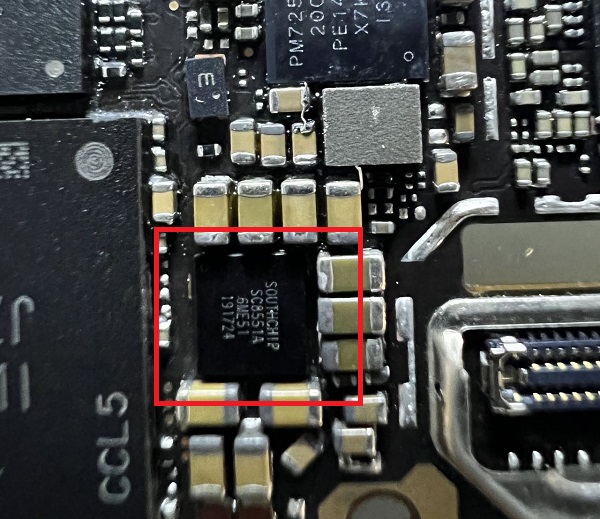

Dismantle the main board, remove the fast charging IC with the most serious corrosion, and find that the bottom of this chip has dropped, so replace the charging chip.
HONOR 60 cannot be charged Figure 7.

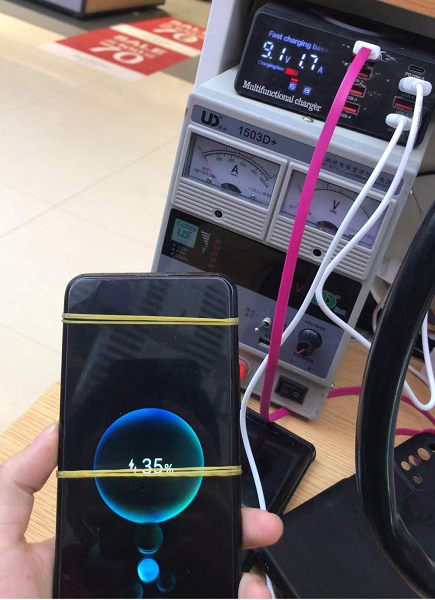

After replacement, the mobile phone can be charged normally, the fault is perfectly repaired, and the repair is over.
HONOR 60 cannot be charged Figure 8.
