Glory 50 does not charge

Glory 50 does not charge.

Disassemble the machine first for testing, and the measuring switch tube 5V is also normal, considering that mobile phone I have fallen, so let’s try to short-circuit the switch tube first. If the fault remains after short-circuiting the switch tube, then give priority to whether there is virtual welding of the charging inductor. The specific maintenance process is as follows:

“Machine model” Glory 50

[Fault phenomenon] No charging

[Maintenance process] I received a machine, the model is Glory 50. The customer described that the mobile phone fell before, and then when I took it for charging, I found that it could not be charged. The more the battery was charged, the less it was. The customer suspected that it was broken, so he sent it to us for maintenance.

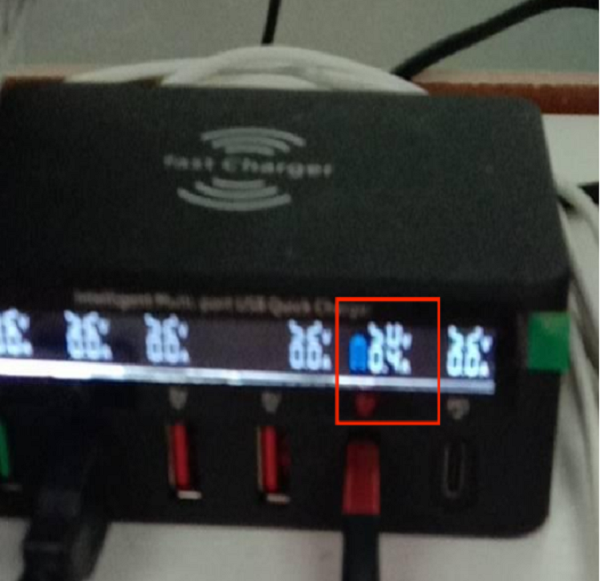

It is found that the charging current is only 0.4A when the ammeter is plugged into the machine for charging, which is definitely not normal, and the current disappears when it is charged, and it jumps cyclically, and there is current for a while and no current for a while. Let’s take this apart and test it first.

Glory 50 does not charge Figure 1

Disassemble the machine, take out the motherboard, plug in the tail plug and measure the tail plug 5V. It is found that the tail plug 5V also jumps with the current, but it doesn’t for a while. From the point diagram, it can be seen that the power from the tail plug 5V is sent to the charging IC after passing through an electronic switch tube, and then the charging IC generates the main power supply and charges the battery.

Measuring the switching tube 5V is also normal. Considering that the mobile phone has fallen, let’s try to short-circuit the switching tube first. After short-circuiting the switching tube, the fault remains the same. Then give priority to whether there is virtual welding of the charging inductor, remove the charging inductor and find a new one with the same inductance.

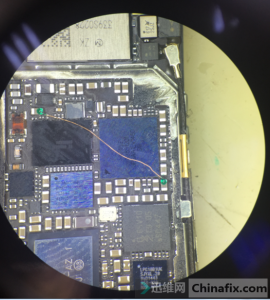

Glory 50 does not charge Figure 2

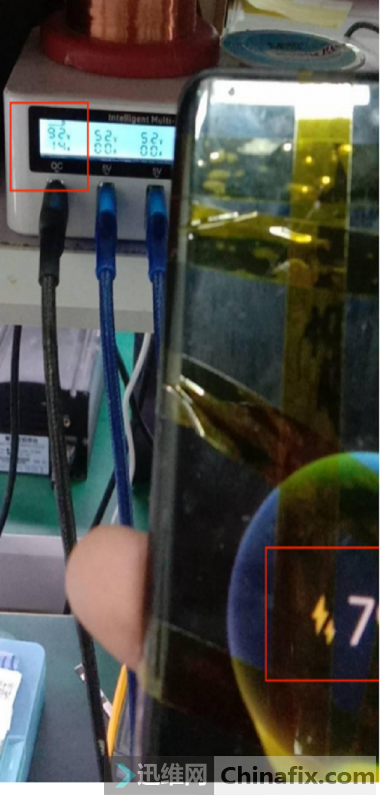

At this time, plug in the charger to charge, and the voltage and current become 9v1.4a.. Put the mobile phone aside for charging test, and charged 15% of the electricity in 10 minutes.

[Maintenance result] Install the motherboard into the mobile phone, and start the test. The mobile phone is normally booted into the system, and the functions such as charging, WiFi, voice, compass, vibration and telephone are normal. The maintenance is over here.

This case was originally provided by Xunwei Quick Repair Flagship Store, and it is forbidden to reprint without authorization!
