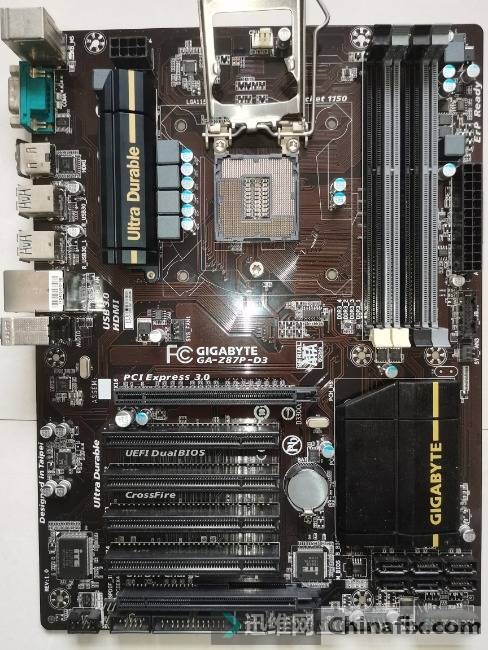

Motherboard model:Gigabyte ga-z87p-d3 rev1.0 motherboard

Fault phenomenon: the main board did not reset and auto power off was restarted

Maintenance process:

A gigabyte ga-z87p-d3 rev1.0 motherboard. The fault is that there is no reset signal when the motherboard is turned on, and auto power off is restarted.
Gigabyte ga-z87p-d3 motherboard no reset auto power off restart repair

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 1.

Gigabyte ga-z87p-d3 motherboard no reset auto power off restart repair

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 2.

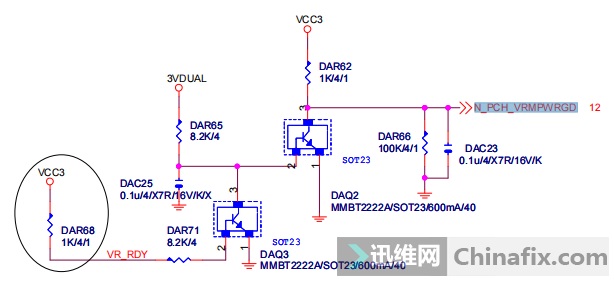

Check CPU VCC 1.7V or so is normal, check n_PCH_Vrmpwrgd 3.3V was normal.
Gigabyte ga-z87p-d3 motherboard no reset auto power off restart repair

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 3.
Check n_DRAM_Pwrok 1.05v was normal.

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 4.

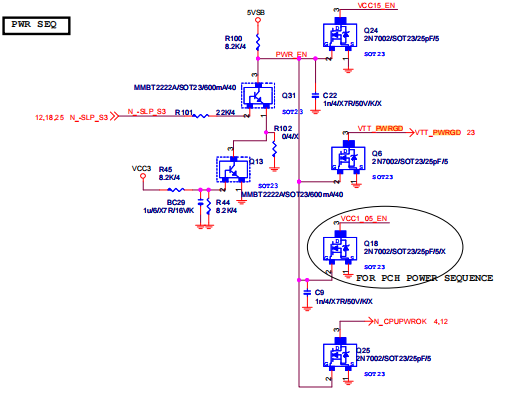

Check q253 pin n_Cpupwrok 0V is not normal, judge the bridge VCC is not normal, check VCC1_5_PCH 1.5V and VCC1_05_PCH 1.05v VCC output is normal.
344;IMG_262

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 5.

Q63 pin is VTT_Pwrgd VCC, its left side is q25.

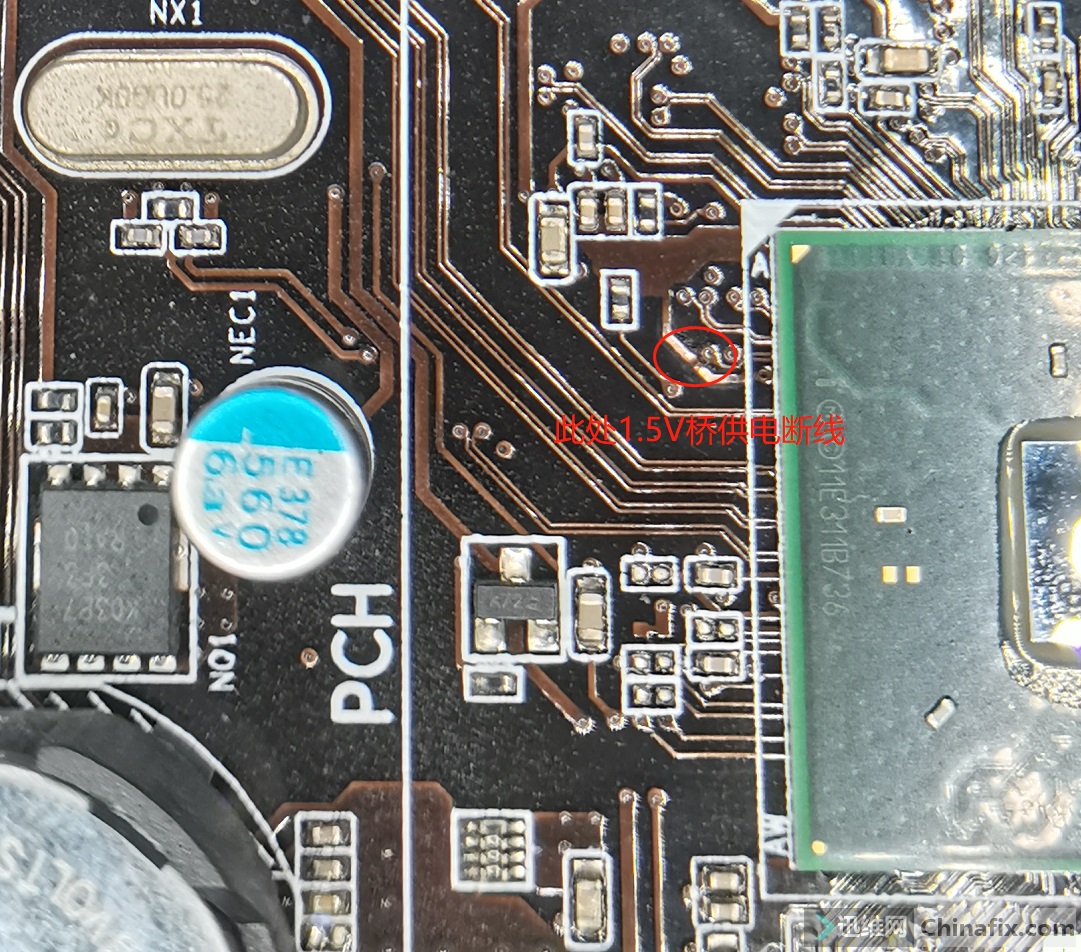

Observe whether the line is broken and find the VCC1 beside the bridge_5_The circuit of PCH VCC was broken, and the BIOS was replaced and turned on normally.

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 6.

Gigabyte ga-z87p-d3 motherboard without reset auto power off restart repair Figure 7.
